Brake Vacuum Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
1.

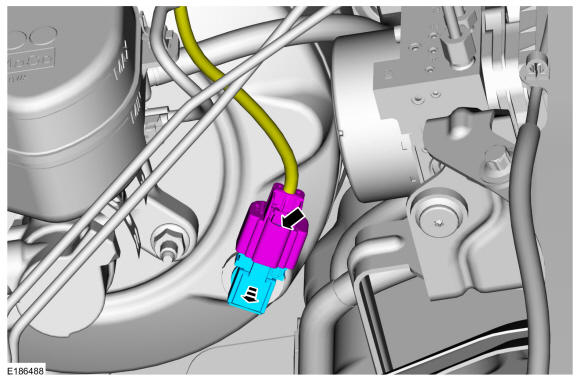

Disconnect the brake booster vacuum sensor electrical connector and remove the brake booster vacuum sensor.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
