Brake Booster - 5.0L 32V Ti-VCT/5.2L 32V Ti-VCT: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: 5.0L 32V Ti-VCT engine shown, 5.2L 32V Ti-VCT similar.

All vehicles

1.

Remove the cowl panel grill. Refer to: Cowl Panel Grille .

2.

Disconnect the battery cables. Refer to: Battery Disconnect and Connect .

3.

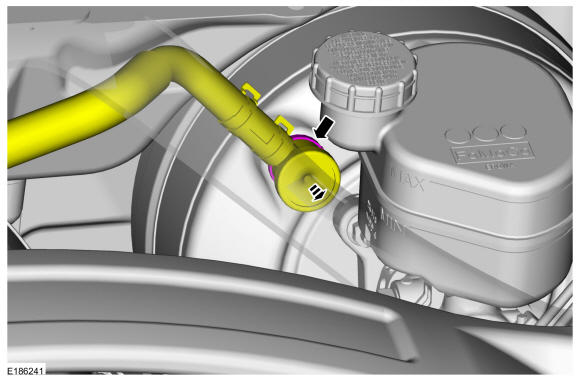

Detach the vacuum check valve from the booster and position aside.

GFD128620

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with manual transmission

4.

Remove the brake fluid reservoir cap.

GFD128590

Courtesy of FORD MOTOR COMPANY

5.

Using a suitable suction device, syphon the brake fluid from the brake fluid reservoir.

GFD128591

Courtesy of FORD MOTOR COMPANY

6.

Disconnect the clutch master cylinder tube.

GFD128592

Courtesy of FORD MOTOR COMPANY

7.

Detach the clutch master cylinder tube bracket from the master cylinder studs.

GFD128606

Courtesy of FORD MOTOR COMPANY

All vehicles

8.

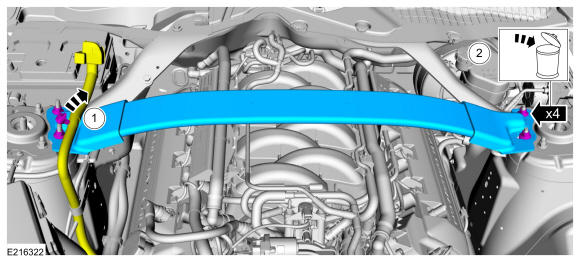

- 1.

  Detach the battery cable retainer.
- 2.

  Remove the nuts and the cross brace. Discard the nuts.
  Torque: 41 lb.ft (55 Nm)

GFD128621

Courtesy of FORD MOTOR COMPANY

9.

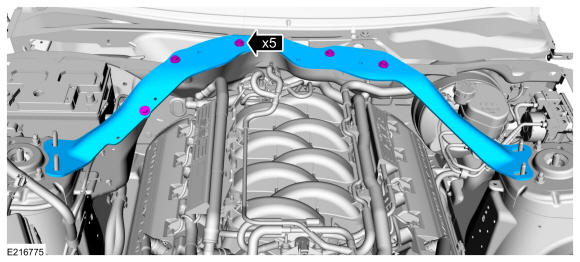

Remove the bolts and the cowl extension.
Torque: 26 lb.ft (35 Nm)

GFD128622

Courtesy of FORD MOTOR COMPANY

10.

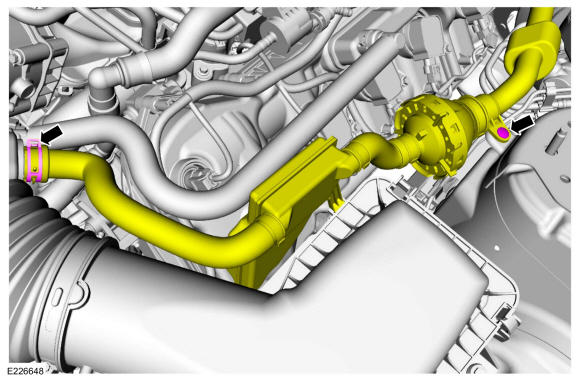

Release the clamp, remove the pin type retainer and position the noise generator aside.

GFD128623

Courtesy of FORD MOTOR COMPANY

11.
- 1.

  Disconnect the brake fluid level sensor electrical connector.
- 2.

  Detach the wiring harness retainer from the brake fluid reservoir.

GFD128594

Courtesy of FORD MOTOR COMPANY

12.

Disconnect the 2 brake tubes at the HCU.
Torque: 20 lb.ft (27.5 Nm)

GFD128609

Courtesy of FORD MOTOR COMPANY

13.

Unclip the brake tubes.

GFD128610

Courtesy of FORD MOTOR COMPANY

14.

Remove and discard the 2 master cylinder nuts. Remove the master cylinder and brake tubes.
Torque: 17 lb.ft (23 Nm)

GFD128611

Courtesy of FORD MOTOR COMPANY

15.

Disconnect the vacuum sensor electrical connector.

GFD128612

Courtesy of FORD MOTOR COMPANY

16.

NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stop lamp switch. Refer to: Stoplamp Switch .

17.

NOTE: The booster push rod clevis-locking pin is a one-time use only part. Any time the booster push rod clevis-locking pin is removed, a new booster push rod clevis-locking pin should be used.

Remove and discard the booster push rod clevis-locking pin and position aside the booster push rod.

GFD128603

Courtesy of FORD MOTOR COMPANY

18.

Remove and discard the 4 nuts.
Torque: 17 lb.ft (22.5 Nm)

GFD128614

Courtesy of FORD MOTOR COMPANY

19.

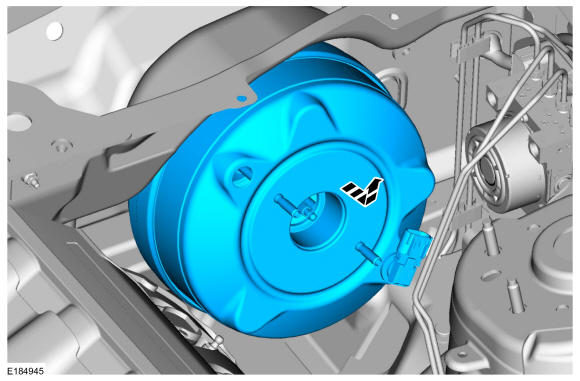

Remove the brake booster.

GFD128624

Courtesy of FORD MOTOR COMPANY
