Wastegate Control Valve Solenoid: Installation

Left side

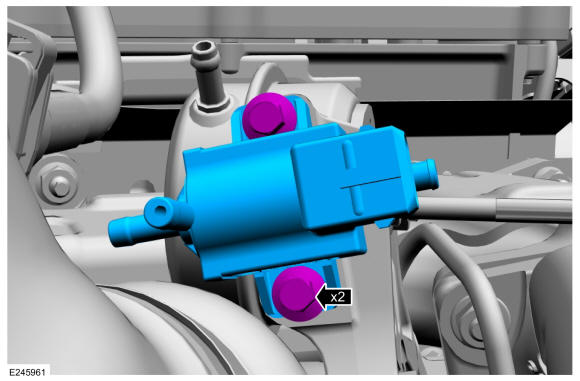

1. Install the wastegate control valve solenoid, then install and tighten the bolts.

   Torque: 27 lb.in (3 Nm)

   Courtesy of FORD MOTOR COMPANY

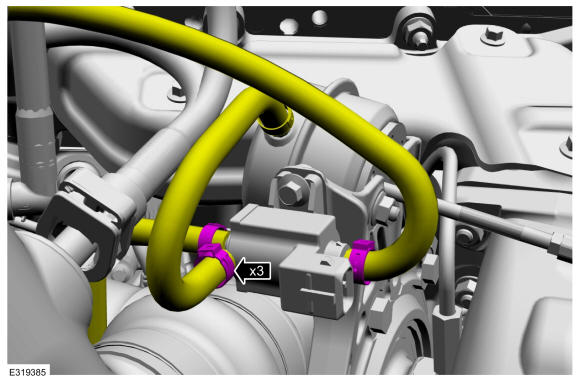

2. Install the new clamps and the wastegate control valve solenoid hoses.

   Courtesy of FORD MOTOR COMPANY

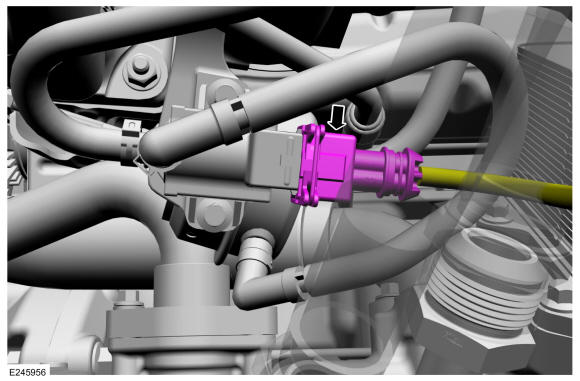

3. Connect the wastegate control valve solenoid electrical connector.

   Courtesy of FORD MOTOR COMPANY

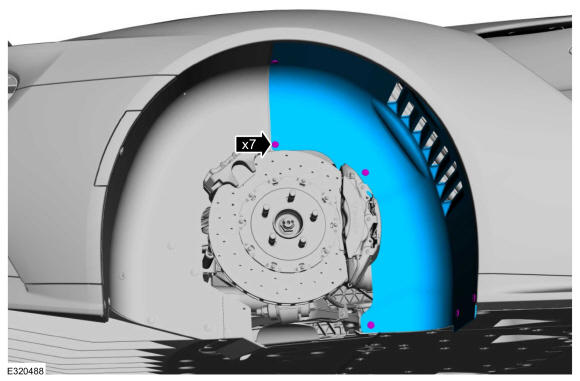

4. Install the front inner quarter panel liner, then install the pin-type retainers.

   Courtesy of FORD MOTOR COMPANY

5. Install the left rear tire. Refer to: Wheel and Tire .

   Right side

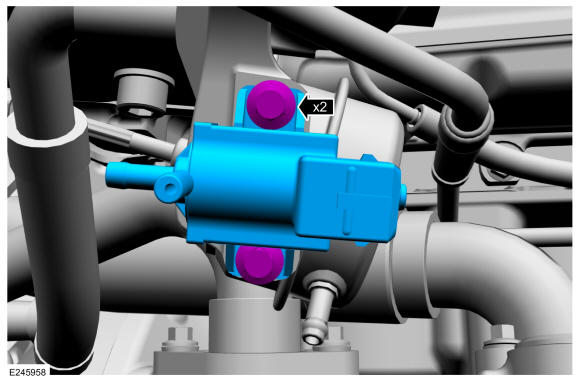

6. Install the wastegate control valve solenoid, then install and tighten the bolts.

   Torque: 27 lb.in (3 Nm)

   Courtesy of FORD MOTOR COMPANY

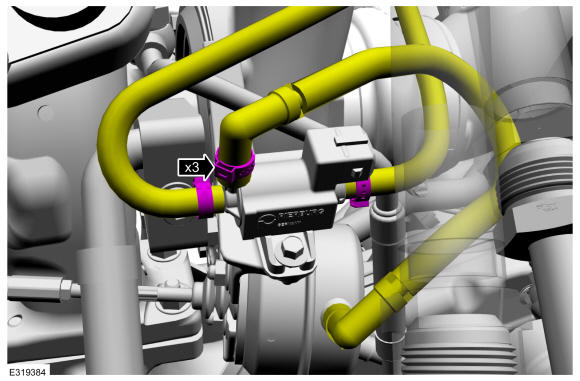

7. Install the new clamps and the wastegate control valve solenoid hoses.

   Courtesy of FORD MOTOR COMPANY

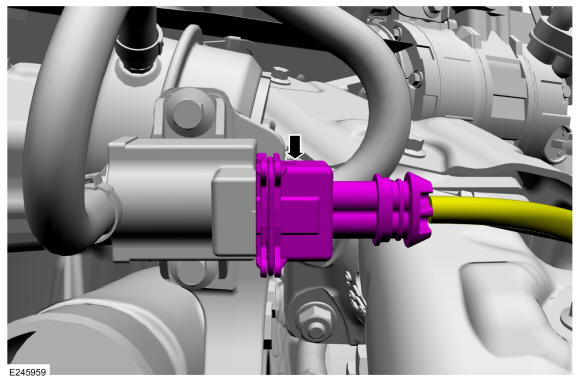

8. Connect the wastegate control valve solenoid electrical connector.

   Courtesy of FORD MOTOR COMPANY

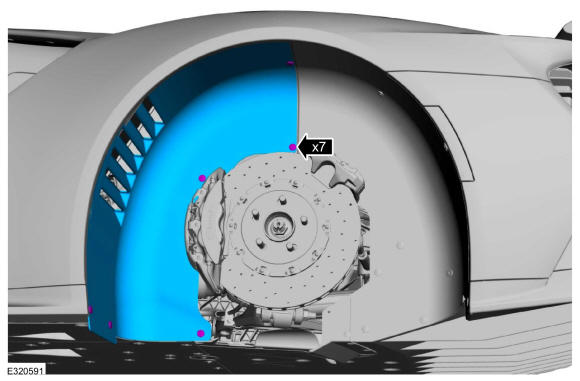

9. Install the front inner quarter panel liner, then install the pin-type retainers.

   Courtesy of FORD MOTOR COMPANY

10. Install the right rear tire. Refer to: Wheel and Tire .
