Turbocharger LH: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

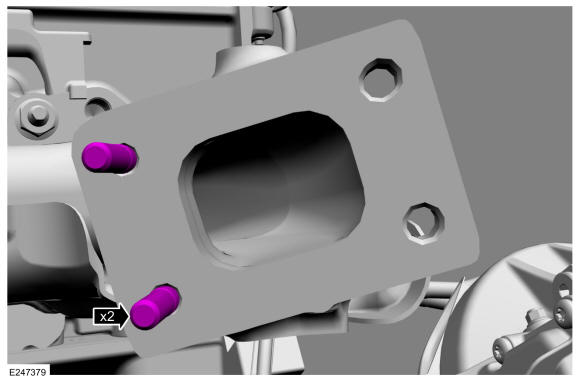

If removed, install the turbocharger studs to the exhaust manifold.
Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

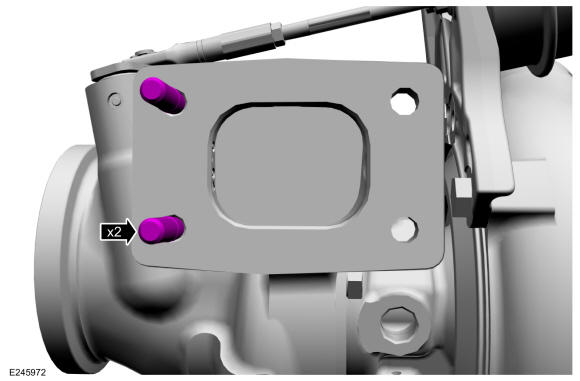

If removed, install the turbocharger studs to the turbocharger.
Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

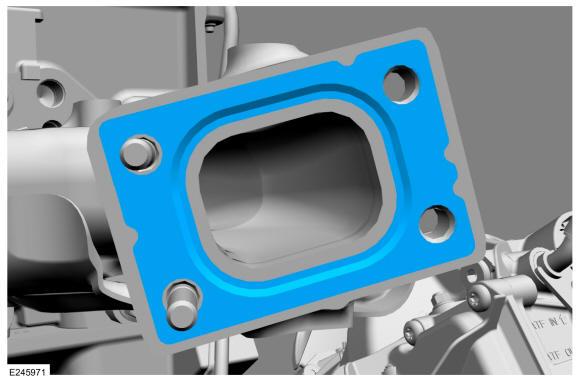

Install the new turbocharger gasket.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

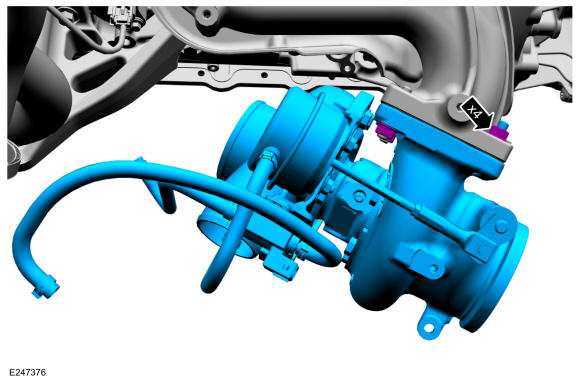

1. Install the turbocharger, then install and hand tighten the new turbocharger nuts.

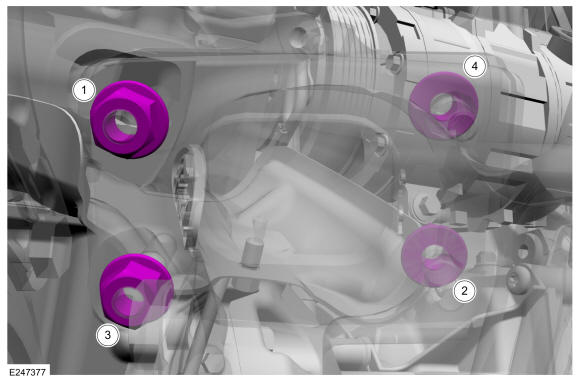

Fig 1: Turbocharger Nuts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Tighten the new turbocharger nuts in the following 3 stages and in the sequence shown above.
  Torque:Stage 1: 133 lb.in (15 Nm) | Stage 2: 22 lb.ft (30 Nm) | Stage 3: 22 lb.ft (30 Nm)
NOTE: Always use new sealing washers.

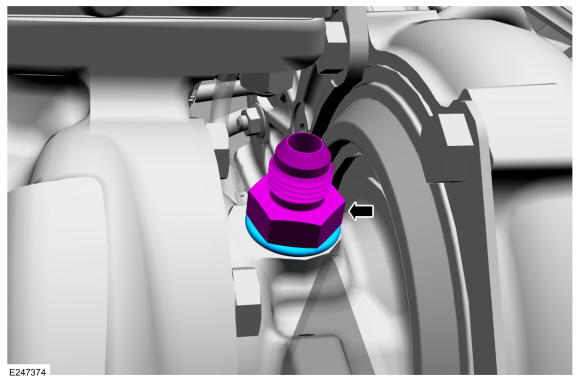

If removed, install and tighten the turbocharger coolant return fitting.

Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

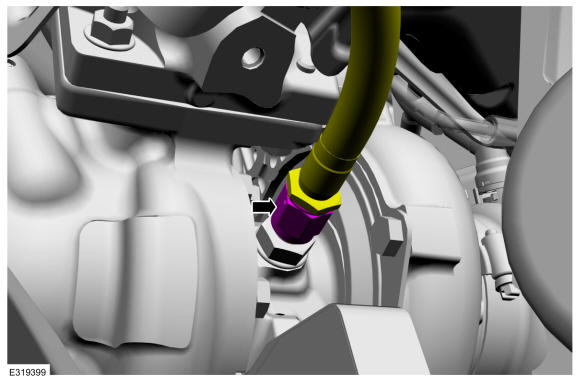

Connect the turbocharger coolant return tube, then tighten the fitting.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

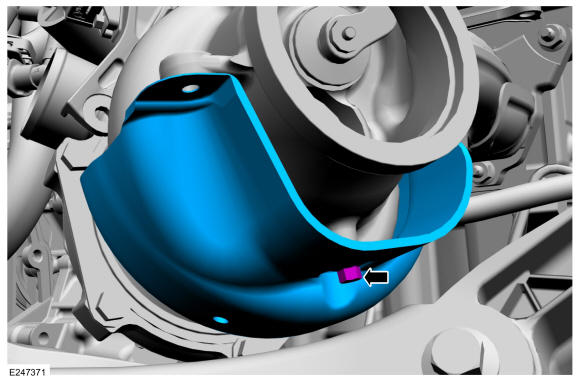

Install the turbocharger heat shield, apply anti-seize lubricant to the threads, then install and tighten the new bolt.
Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new sealing washers and a new bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Ensure that the banjo fitting/tube are centered relative to the turbocharger end housings and are not riding on one or the other.

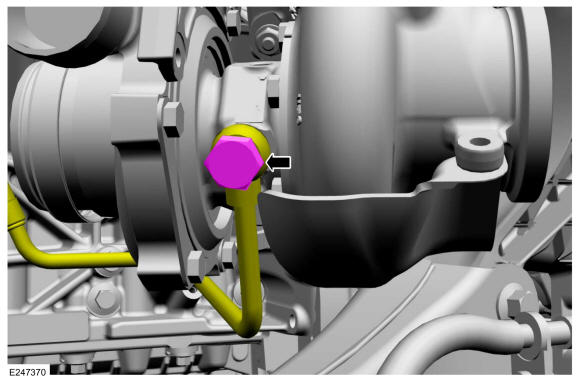

Install the turbocharger coolant supply tube, then tighten the new bolt.

Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

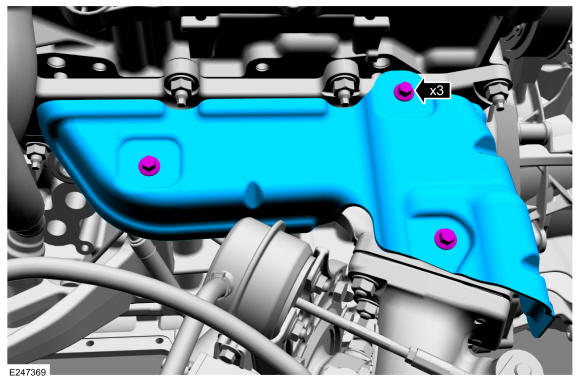

Install the exhaust manifold heat shield, apply anti-seize lubricant to the threads, then install and tighten the new bolts.
Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

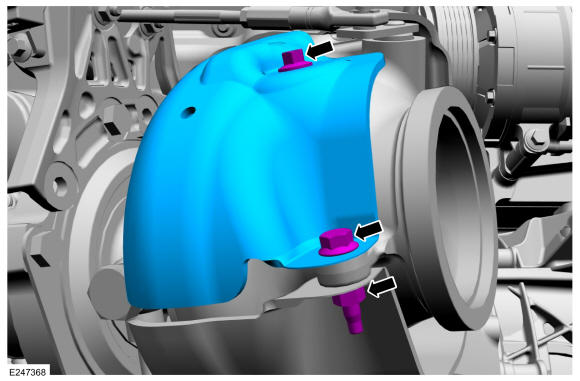

Install the turbocharger heat shield, apply anti-seize lubricant to the threads, then install and tighten the new bolts and the new nut.
Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound

Torque: New upper bolt.: 106 lb.in (12 Nm) New lower bolt and nut.: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Install the turbocharger oil return tube LH. Refer to: Turbocharger Oil Return Tube LH .
Install the turbocharger oil supply tube LH. Refer to: Turbocharger Oil Supply Tube LH .
Install the catalytic converter LH. Refer to: Catalytic Converter LH .
