Cooling Fan
Cooling Fan

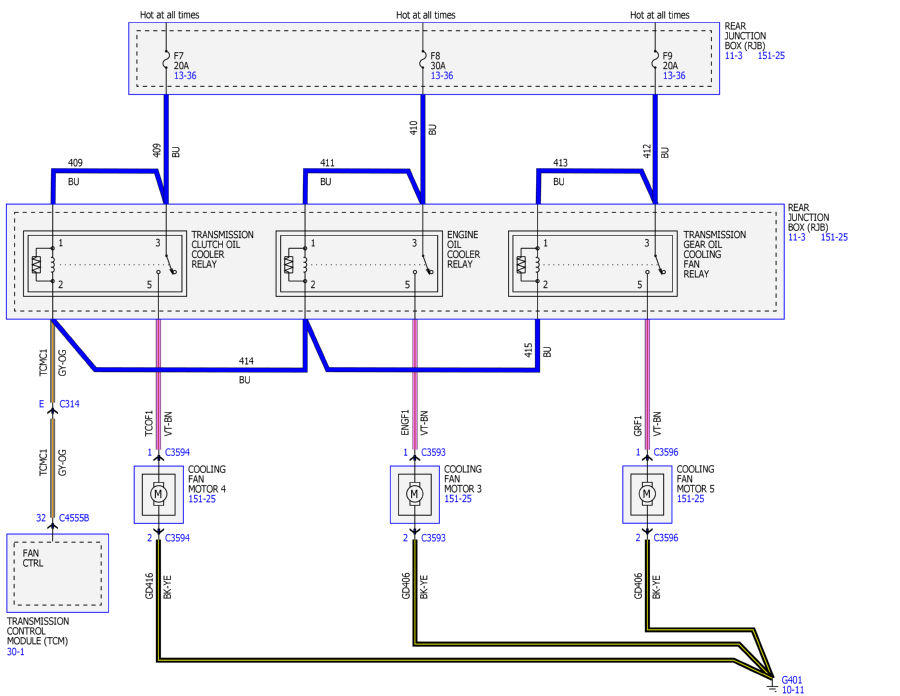

Courtesy of FORD MOTOR COMPANY

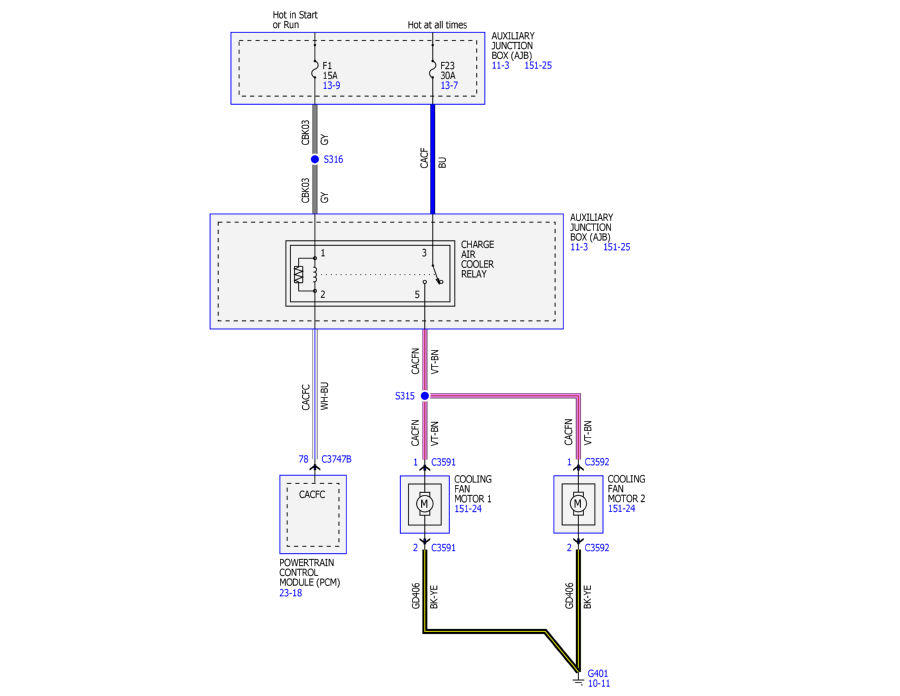

Courtesy of FORD MOTOR COMPANY

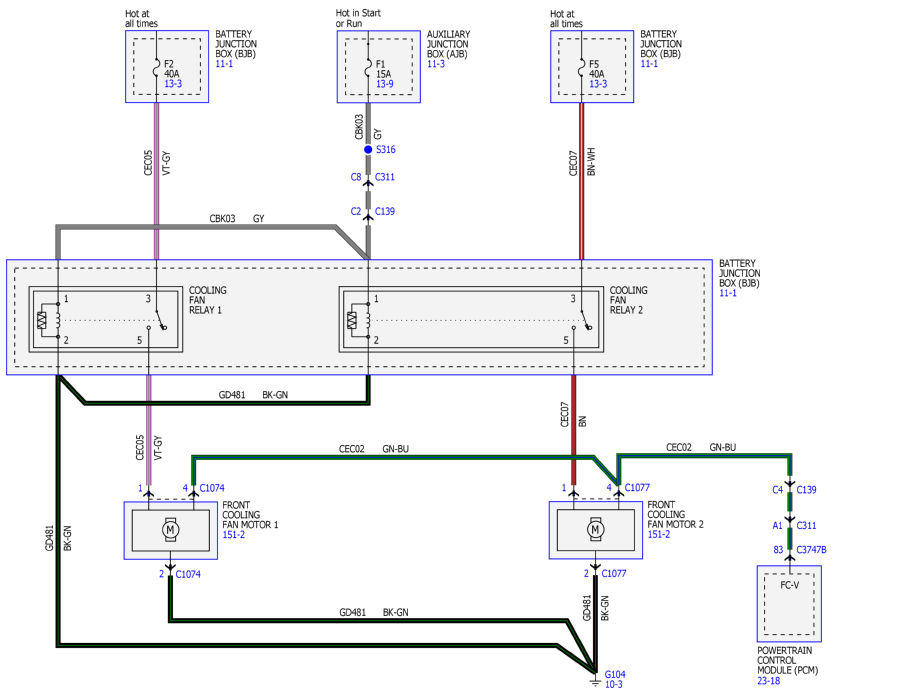

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
