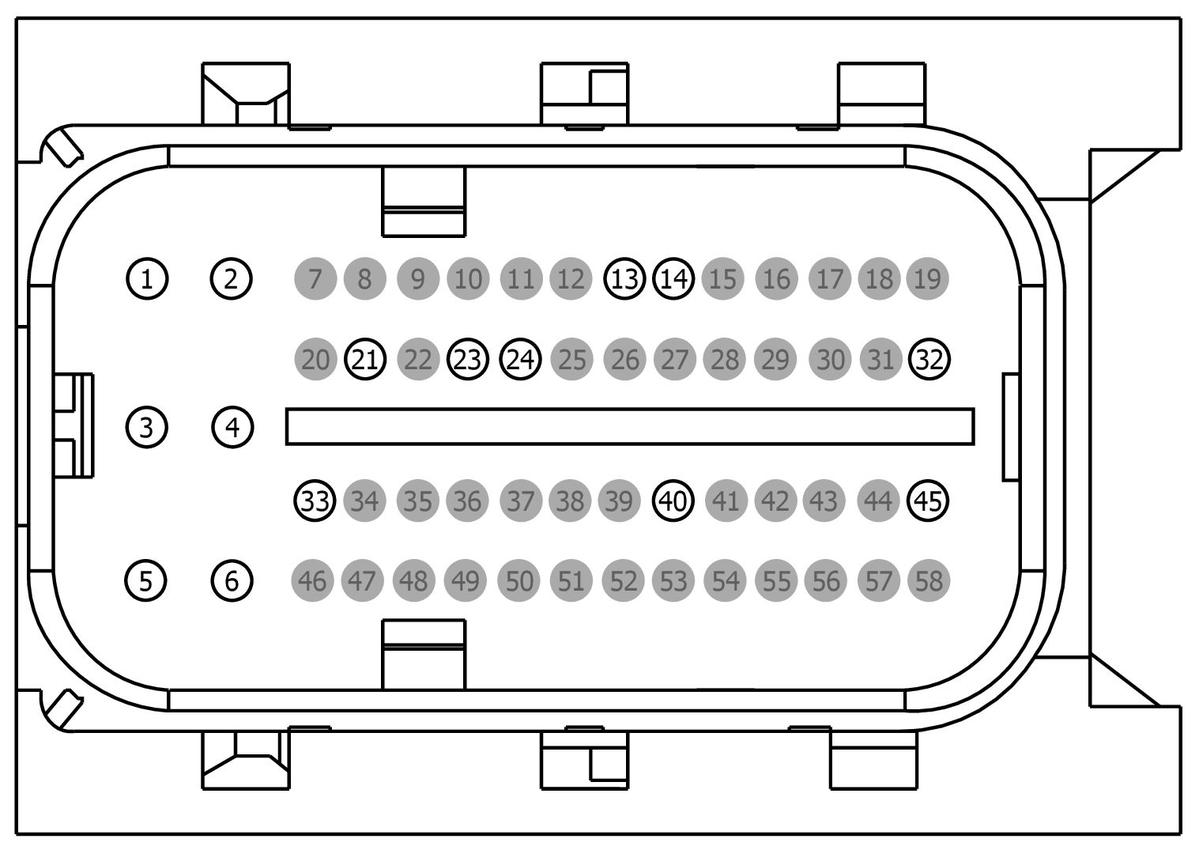

Connector End View (C4555B) - TRANSMISSION CONTROL MODULE (TCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4555B	TRANSMISSION CONTROL MODULE (TCM)	12970_15_1136_AP			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
TBD	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	TCMPR (GN-VT)	14	FUSE - CIRCUIT BREAKER	TBD
2	GD406 (BK-YE)	14	GROUND	TBD
3	TCMPR (GN-VT)	14	FUSE - CIRCUIT BREAKER	TBD
4	GD406 (BK-YE)	14	GROUND	TBD
5	TCMPR (GN-VT)	14	FUSE - CIRCUIT BREAKER	TBD
6	GD406 (BK-YE)	14	GROUND	TBD
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	TBD
14	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	TBD
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CET47 (BU)	20	SWITCH - REVERSE (RS)	TBD
22	*	*	Not Used	N/A
23	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	TBD
24	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	TBD
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	TCMC1 (GY-OG)	20	TRANSMISSION COOLING FAN RELAY CONTROL	TBD
33	VET78 (WH-VT)	22	ACTUATOR - GEAR SHIFT # PWM OUT 3 (PWM3)	TBD
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	VET76 (GN-OG)	22	ACTUATOR - GEAR SHIFT # PWM OUT 1 (PWM1)	TBD
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	CBB66 (BU-WH)	22	FUSE - CIRCUIT BREAKER	TBD
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
