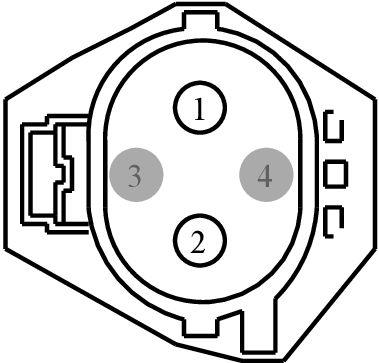

Connector End View (C3594) - COOLING FAN MOTOR 4

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3594	COOLING FAN MOTOR 4	12970_15_1102_AT			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
TBD	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	TCCF1 (VT-BN)	14	VPWR	TBD
2	GD406 (BK-YE)	14	GROUND	TBD
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1361

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-LB

Gauge:

10 16

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Motor - Electric Water Pump
• Motor - Engine Cooling Fan

Pigtail Kit Part Number WPT-935

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-LA

Gauge:

10 16

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Engine Cooling Fan
