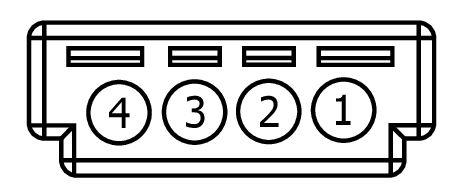

Connector End View (C232) - DEFROST VENT DOOR ACTUATOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C232 | DEFROST VENT DOOR ACTUATOR | HVAC | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| TBD | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GND (BK) | 22 | GND | TBD | ||||
| 2 | LIN (BK) | 22 | LIN | TBD | ||||
| 3 | LIN (BK) | 22 | LIN | TBD | ||||
| 4 | POW12V (BK) | 22 | 12V SW | TBD | ||||
