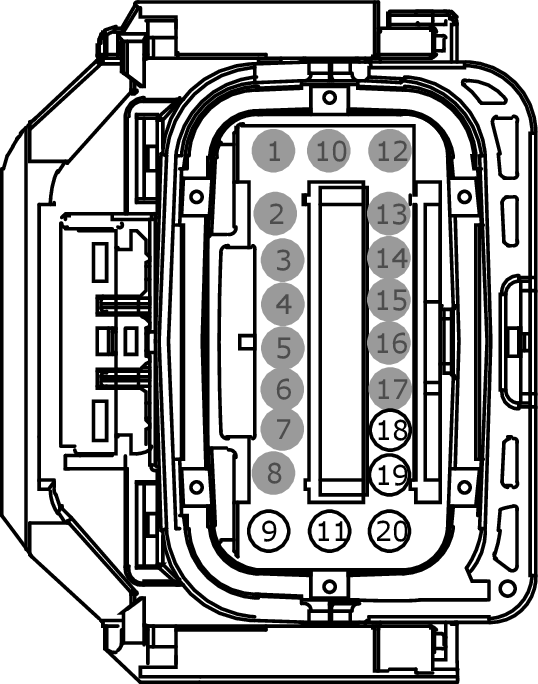

Connector End View (C482A) - TORQUE VECTOR (AWD) MODULE
Connector: C482A
Description
TORQUE VECTOR (AWD) MODULE
Color
Harness
2C054
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | GD313 (BK-GN) | 12 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | |
| 10 | * | * | Not Used | |
| 11 | CBB24 (VT-GN) | 20 | FUSE - 24 OR CIRCUIT BREAKER | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 19 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 20 | CBB30 (YE-BU) | 12 | FUSE - 30 OR CIRCUIT BREAKER |
