Connector End View (C408) - INLINE
Inline: C408
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 18C673
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRD06 (BN-YE) | 10 | |
| 2 | * | * | 18C673 |
| 2 | GD347 (BK-VT) | 10 | 14A005 |
| Available Pigtail Kits | |

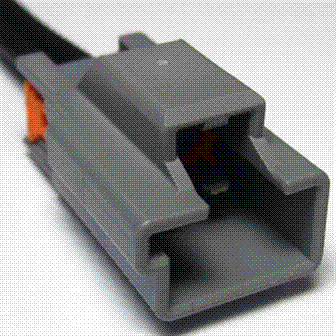

| Pigtail Kit Part Number WPT-1149 |
Service Part Number: 6U2Z-14S411-PB Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Element - Heated Windshield Motor - Convertible Top Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear Motor - Seat Lumbar Switch - Heater A/C Blower (Rear) Terminal - Rear Window Defroster Grid |

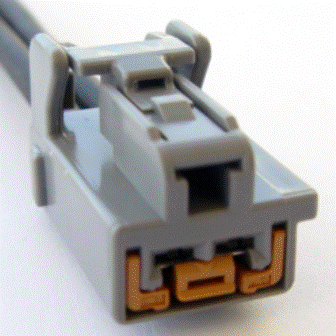

| Pigtail Kit Part Number WPT-404 |
Service Part Number: 3U2Z-14S411-CAA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Switch - Brake Pedal Position Switch - Stop Lamp |
