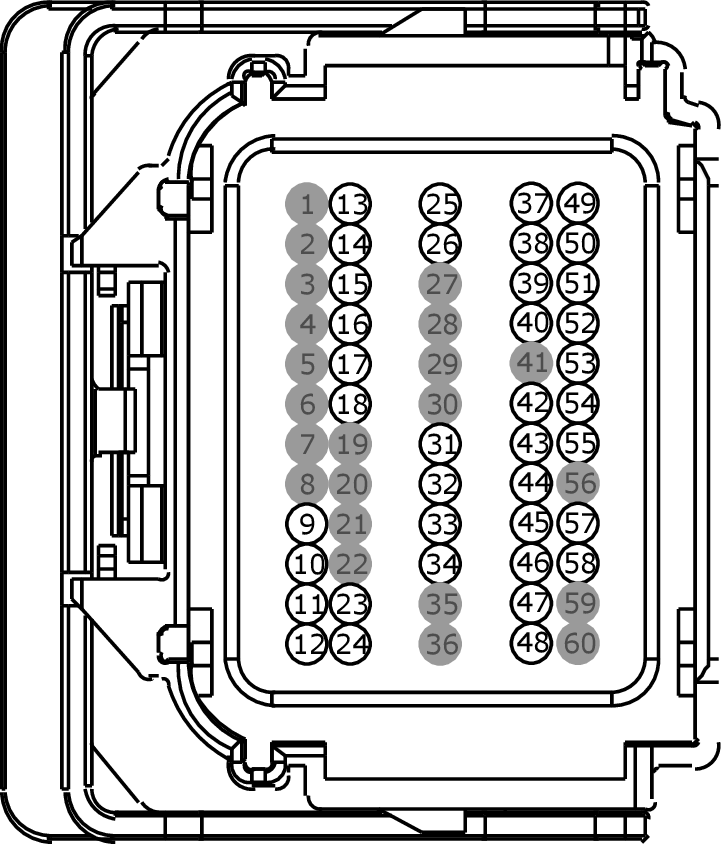

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | CR180 (YE) | 22 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER + | |
| 10 | RR180 (BN-GN) | 22 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER - | |
| 11 | RR181 (BU-OG) | 22 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD - | |
| 12 | CR181 (WH) | 22 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD + | |
| 13 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | |
| 14 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | |
| 15 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - | |
| 16 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + | |
| 17 | CR111 (BN-WH) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + | |
| 18 | RR111 (YE-VT) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER | |
| 24 | VR216 (GN-OG) | 20 | SENSOR - SEAT TRACK POSITION FRONT PASSENGER | |
| 25 | CR109 (BN-BU) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | |
| 26 | RR109 (BU-GN) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | RR132 (BU-WH) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - | |
| 32 | VR218 (YE-OG) | 20 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | |
| 33 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 34 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | CR106 (VT-GY) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + | |
| 38 | RR106 (YE-OG) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - | |
| 39 | RR105 (GY-YE) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - | |
| 40 | CR105 (GN-BU) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + | |
| 41 | * | * | Not Used | |
| 42 | CR167 (YE-VT) | 22 | CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) | |
| 43 | RR174 (WH-OG) | 22 | CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - | |
| 44 | VR236 (BU-OG) | 22 | SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE | |
| 45 | VR237 (BN-WH) | 22 | SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE | |
| 46 | RR175 (YE-OG) | 22 | CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE - | |
| 47 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 48 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 49 | CR179 (BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + | |
| 50 | RR179 (GY-BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - | |
| 51 | RR188 (WH-VT) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE - | |
| 52 | CR188 (VT-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE + | |
| 53 | RR137 (BU-GY) | 22 | CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER - | |
| 54 | CR201 (GN-BU) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 55 | CR203 (GY-VT) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD | |
| 56 | * | * | Not Used | |
| 57 | CR206 (BN) | 22 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD | |
| 58 | CR204 (VT) | 22 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE | |
| 59 | * | * | Not Used | |
| 60 | * | * | Not Used |
