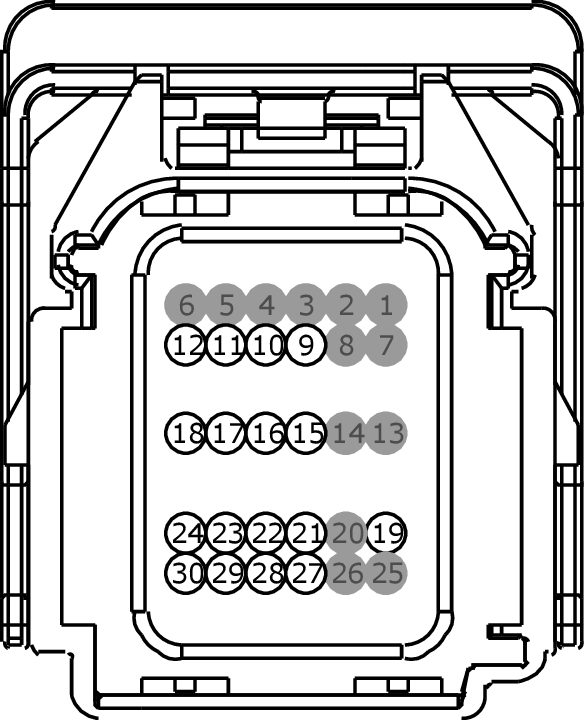

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C310A

Description

RESTRAINTS CONTROL MODULE (RCM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	RR144 (VT-GN)	22	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -
10	CR144 (GY-OG)	22	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +
11	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
12	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
13	*	*	Not Used
14	*	*	Not Used
15	RR130 (GN-BU)	22	CTRL MOD. - SENSOR IMPACT FRONT 2ND
16	VR214 (WH-BU)	22	SENSOR - IMPACT FRONT 2ND
17	VR213 (VT-GN)	22	SENSOR - IMPACT FRONT 1ST
18	RR129 (YE-GY)	22	CTRL MOD. - SENSOR IMPACT FRONT 1ST -
19	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER
20	*	*	Not Used
21	RR102 (WH)	22	CTRL MOD. - AIR BAG DRIVER 2 -
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -
22	CR102 (BU)	22	CTRL MOD. - AIR BAG DRIVER 2 +
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +
23	CR104 (YE-GY)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
24	RR104 (WH-BU)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -
25	*	*	Not Used
26	*	*	Not Used
27	RR103 (VT-GN)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -
28	CR103 (GY-BU)	22	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
29	CR101 (VT-BN)	22	CTRL MOD. - AIR BAG DRIVER 1+
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+
30	RR101 (YE-GN)	22	CTRL MOD. - AIR BAG DRIVER 1 -
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -
