Brake Master Cylinder: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

NOTE: Before removing the master cylinder, relieve the vacuum in the brake booster or the master cylinder O-ring seal may be drawn into the brake booster, causing brake booster failure and increased brake pedal effort.

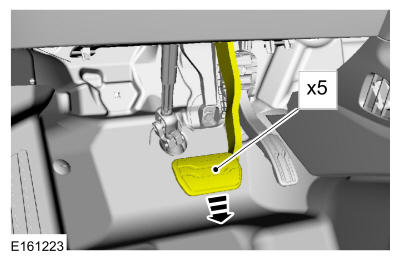

Fully apply and release the brake pedal 5 times.

Courtesy of FORD MOTOR COMPANY
Disconnect the battery. Refer to: Battery Disconnect and Connect .
1.5L EcoBoost (118kW/160PS)/2.5L Duratec (125kW/170PS)

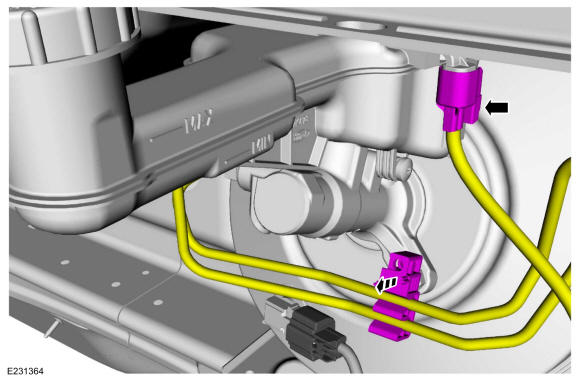

Disconnect the brake fluid level sensor electrical connector and detach the brake tube retainer.

Courtesy of FORD MOTOR COMPANY

2.0L EcoBoost (184kW/250PS) - MI4/2.7L EcoBoost (238kW/324PS)

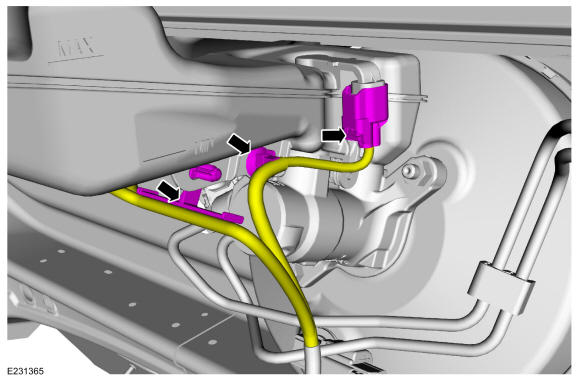

Disconnect the brake fluid level sensor electrical connector and detach the wiring retainers.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

NOTE: 2.0L EcoBoost engine shown
NOTE: If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Make sure that all openings are sealed.

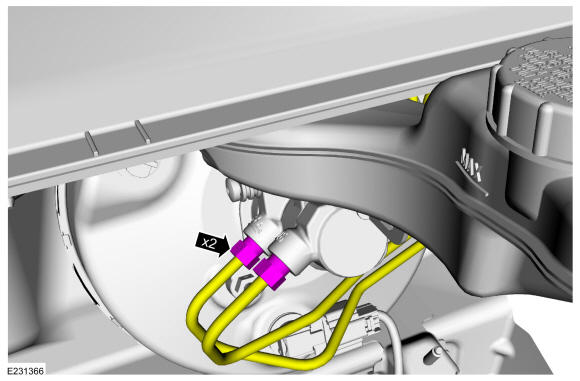

Disconnect the brake tube fittings.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

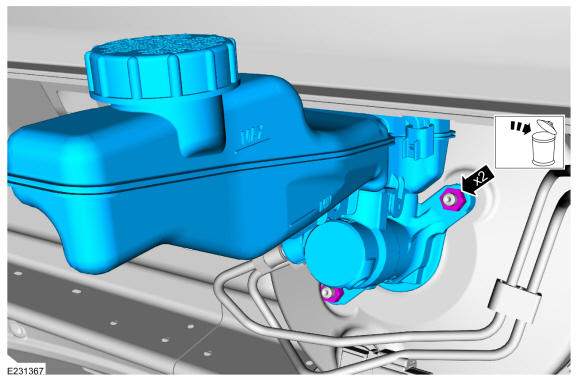

Remove the nuts and the brake master cylinder. Discard the nuts.

Torque: 18 lb.ft (25 Nm)
