Brake Fluid Reservoir: Removal
NOTE:
If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake master cylinder. Refer to: Brake Master Cylinder .

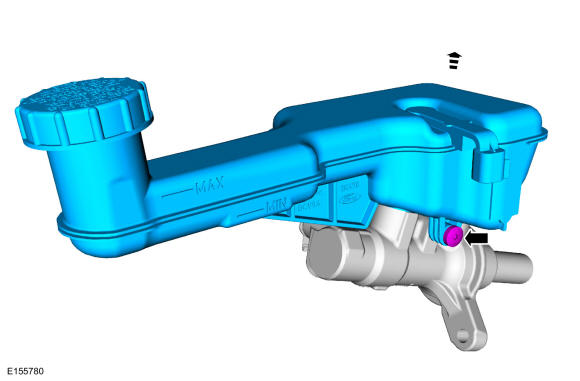

- Remove the pin and the brake fluid reservoir.
Torque: 49 lb.in (5.5 Nm)
-
NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

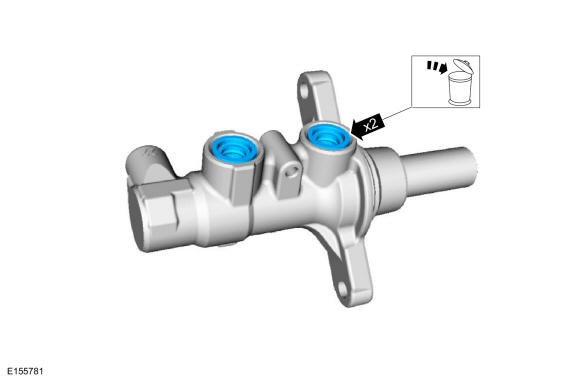

Remove and discard the brake fluid reservoir seals.
Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
