Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
  3. NOTE: If equipped.

    Remove the air cleaner. Refer to: Air Cleaner .

  4. NOTE: If equipped.

    Remove the bolts and position the cabin heater aside.

    Torque: 53 lb.in (6 Nm)

    GFD196493Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure all openings are sealed.

    Remove the evaporator pipe nut, position the flange and pipe aside.

    Torque: 97 lb.in (11 Nm)

    GFD196494Courtesy of FORD MOTOR COMPANY
  6. GFD193298Courtesy of FORD MOTOR COMPANY
    GFD196495Courtesy of FORD MOTOR COMPANY
    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.

    GFD193159Courtesy of FORD MOTOR COMPANY
  7. NOTE: Be prepared to collect escaping fluid.

    Install hose clamping pliers on the coolant hoses, release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp(s)

    GFD196496Courtesy of FORD MOTOR COMPANY
  8. On both sides, remove the front door. Refer to: Front Door .
  9. Remove the floor console. Refer to: Floor Console .
  10. If equipped, remove the selector lever assembly. Refer to: Selector Lever Cable - 6-Speed Automatic Transmission - 6F50/6F55 .
  11. If equipped, remove the gearshift lever.
  12. On both sides. Position the front door weatherstrip aside.
    GFD196497Courtesy of FORD MOTOR COMPANY
  13. On both sides. Release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover
    GFD196490Courtesy of FORD MOTOR COMPANY
  14. On both sides. Remove the cowl side trim panel. Use the General Equipment: Interior Trim Remover
    GFD196498Courtesy of FORD MOTOR COMPANY
  15. On both sides. Release the clips and remove the scuff plate. Use the General Equipment: Interior Trim Remover
    GFD196499Courtesy of FORD MOTOR COMPANY
  16. On both sides. Release the clips and remove the lower cowl trim panel. Use the General Equipment: Interior Trim Remover
    GFD196500Courtesy of FORD MOTOR COMPANY
  17. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
  18. Remove the push pins and RH insulator panel.
    GFD195665Courtesy of FORD MOTOR COMPANY
  19. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnect, or damage to the clockspring may result.

    Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    Torque: 21 lb.ft (28 Nm)

    GFD196501Courtesy of FORD MOTOR COMPANY
  20. Position the RH carpet aside.
    GFD196502Courtesy of FORD MOTOR COMPANY

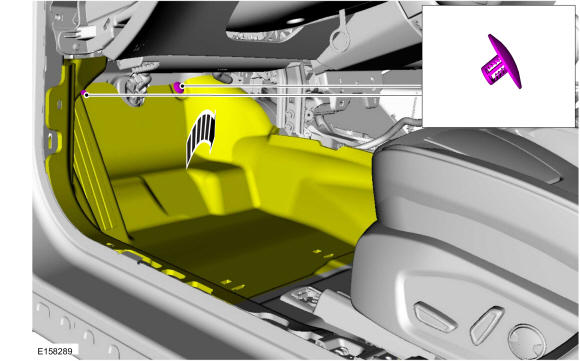

  21. Remove the push pins and position the LH carpet aside.
    GFD196096Courtesy of FORD MOTOR COMPANY
  22. Remove the bolt and the HVAC duct.
    GFD196503Courtesy of FORD MOTOR COMPANY
  23. Remove the HVAC duct.
    GFD196504Courtesy of FORD MOTOR COMPANY
  24. Remove the bolts and the instrument panel center brace.

    Torque: 133 lb.in (15 Nm)

    GFD196505Courtesy of FORD MOTOR COMPANY
  25. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    • Turn the ignition off, wait at least one minute.

    • Disconnect the electrical connector.

  26. Disconnect the electrical connectors.
    GFD196506Courtesy of FORD MOTOR COMPANY
  27. Disconnect the electrical connectors and position the wiring tray aside.
    GFD196507Courtesy of FORD MOTOR COMPANY
  28. NOTE: LH side of instrument panel.

    Disconnect the BCM electrical connectors.

    GFD196508Courtesy of FORD MOTOR COMPANY

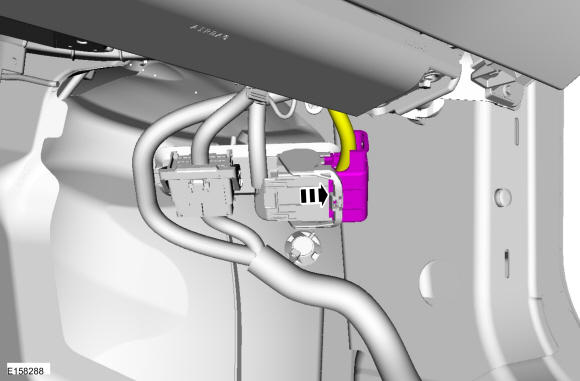

  29. NOTE: RH side of instrument panel.

    Disconnect the electrical connector.

    GFD196509Courtesy of FORD MOTOR COMPANY
  30. NOTE: If equipped.

    Disconnect the electrical connectors and release the wiring harness retainer. Release the tabs and remove the APIM.

    GFD195928Courtesy of FORD MOTOR COMPANY
  31. Remove the cowl panel grille. Refer to: Cowl Panel Grille .
  32. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD196510Courtesy of FORD MOTOR COMPANY
  33. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt cover. Use the General Equipment: Interior Trim Remover
    GFD196511Courtesy of FORD MOTOR COMPANY
  34. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt.

    Torque: 26 lb.ft (35 Nm)

    GFD196512Courtesy of FORD MOTOR COMPANY
  35. Remove the HVAC nut.

    Torque: 133 lb.in (15 Nm)

    GFD196513Courtesy of FORD MOTOR COMPANY
  36. On both sides. Remove the instrument panel support bolts.

    Torque: 17 lb.ft (22.5 Nm)

    GFD196514Courtesy of FORD MOTOR COMPANY
  37. NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel face down and remove through the LH front door opening.

GFD196515Courtesy of FORD MOTOR COMPANY
