Rear Door Alignment
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
All alignments
- Check the body to rear door dimensions. Refer to: Body and Frame .

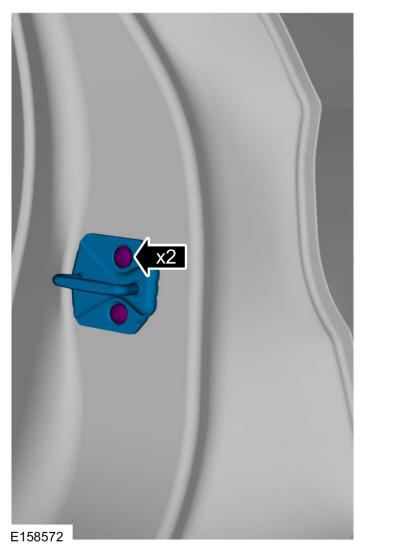

- Remove the bolts and the striker assembly.
Rear door in and out, up and down alignment

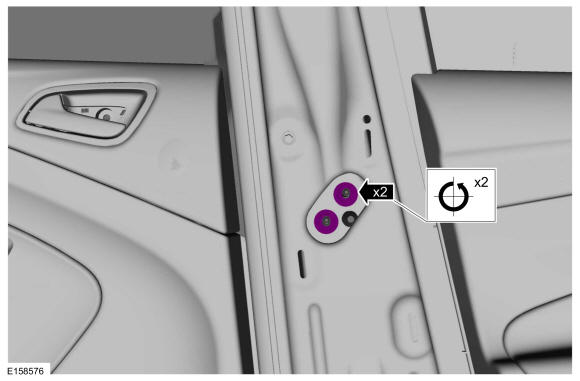

- Loosen the bolts to permit movement of the door.
Torque: 35 lb.ft (48 Nm)
- Adjust door to specification. Refer to: Body and Frame
.
Rear door fore, aft and tilt alignment
- Remove the safety belt retractor and pretensioner. Refer to: Seatbelt Shoulder Height Adjuster .

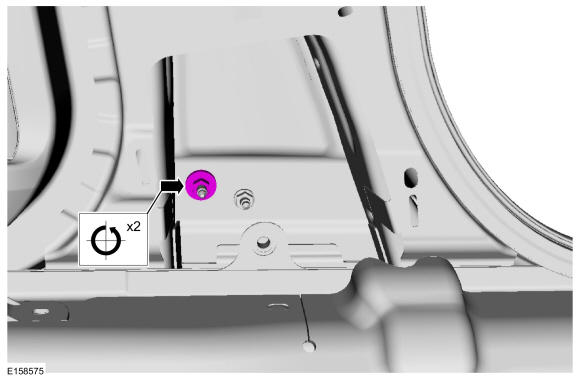

- Loosen the nut to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

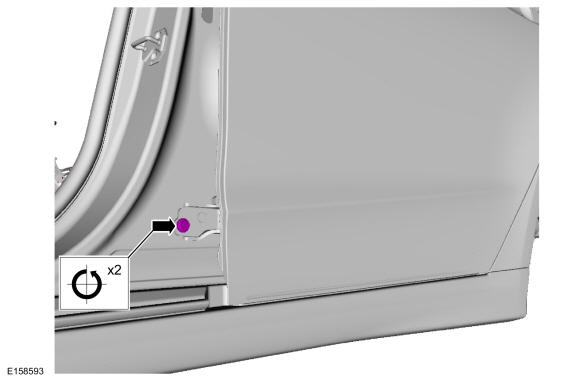

- Loosen the bolt to permit movement of the door.
Torque: 22 lb.ft (30 Nm)
- Loosen the nuts to permit movement of the door.
Torque: 22 lb.ft (30 Nm)
- Adjust the door to specification. Refer to: Body and Frame
.
All alignments
- Tighten the bolts.
Torque: 18 lb.ft (25 Nm)
- Check the body to rear door dimensions. Refer to: Body and Frame .
- Install any removed components as needed.
