Steering Wheel Multifunction Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, REFER to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
- Remove the driver airbag. Refer to: Driver Airbag .
-

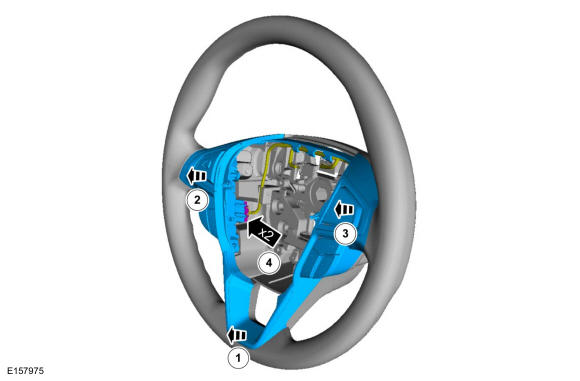

- Using a suitable flat-bladed tool, start at the bottom and remove the bezel in the sequence shown. Use the General Equipment: Interior Trim Remover
- Disconnect the electrical connectors and remove the bezel.

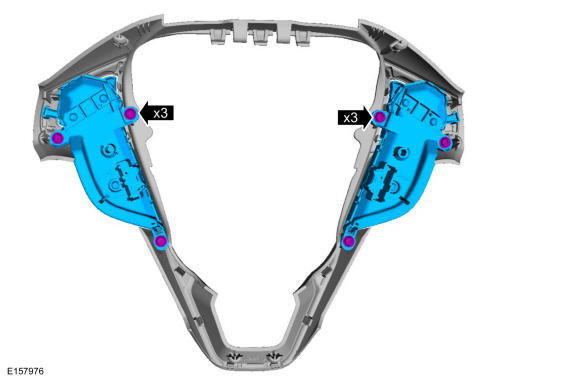

- Remove the screws and the steering wheel multifunction switches.
Torque: 27 lb.in (3 Nm)
