Wastegate Control Valve Solenoid: Installation

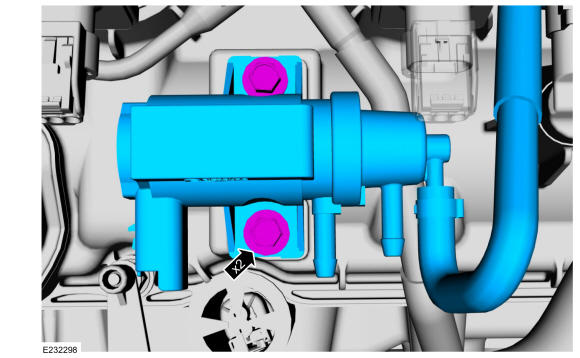

Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

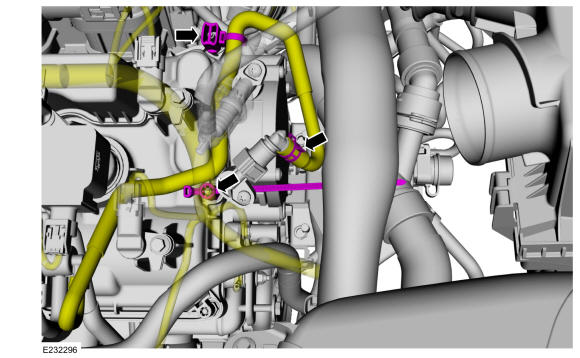

Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

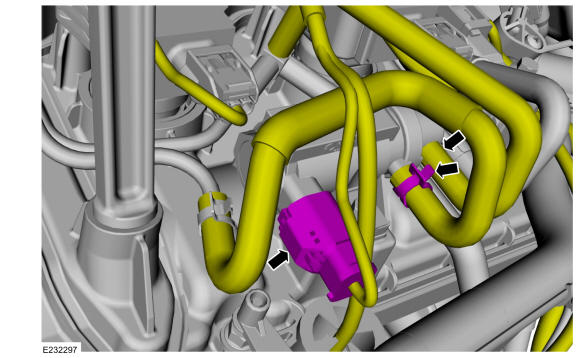

- Attach the wire harness retainer to the studbolt.
- Attach the hose retainer to the studbolt.
- Connect the wastegate control valve solenoid hose and clamp to the vacuum pump. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
