Turbocharger Coolant Supply Tube LH: Installation

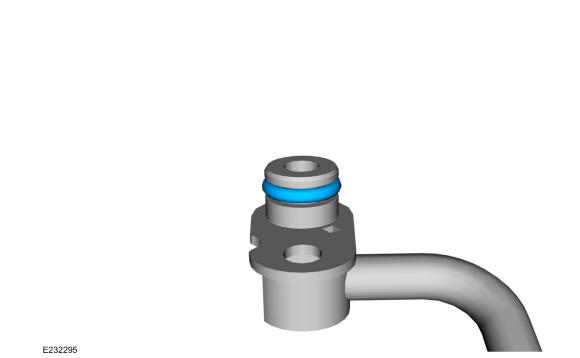

- Install a new turbocharger coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications
.
-
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

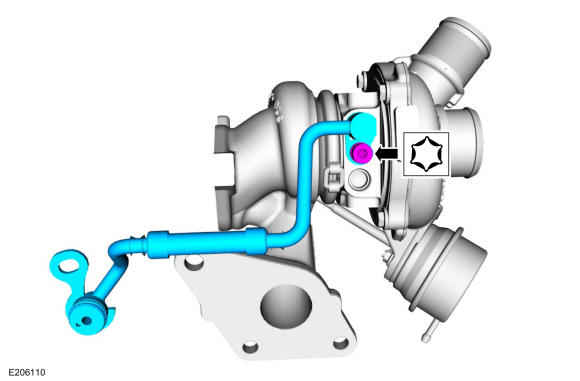

Install the turbocharger coolant supply tube to the turbocharger, then install and tighten the turbocharger coolant supply tube bolt.
Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Torque: 89 lb.in (10 Nm)
- Install the Turbocharger LH. Refer to: Turbocharger LH .
