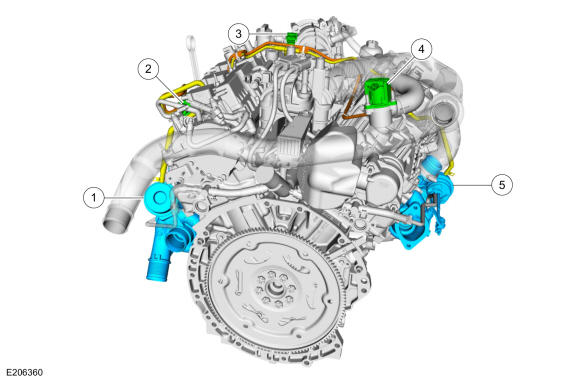

Turbocharger - Component Location
2.7L EcoBoost
| Item | Description |
|---|---|
| 1 | Turbocharger - left |
| 2 | Wastegate control valve solenoid |
| 3 | Wastegate vacuum sensor |
| 4 | Turbocharger bypass valve |
| 5 | Turbocharger - right |

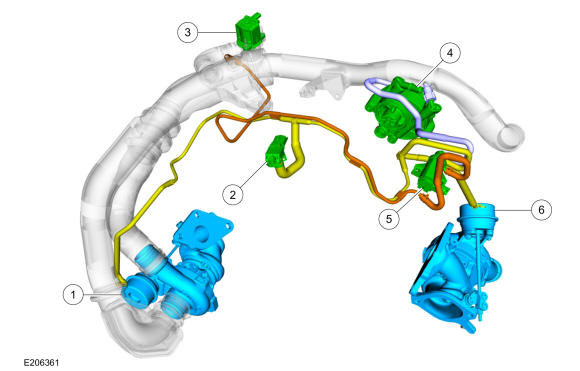

2.7L EcoBoost Turbocharger Controls
| Item | Description |
|---|---|
| 1 | Wastegate activator - right |
| 2 | Wastegate vacuum sensor |
| 3 | Turbocharger bypass valve |
| 4 | Pump assembly vacuum |
| 5 | Wastegate control valve solenoid |
| 6 | Wastegate activator - left |
