OEM Wiring Diagram Symbols (Hybrid/ENERGI): Symbols

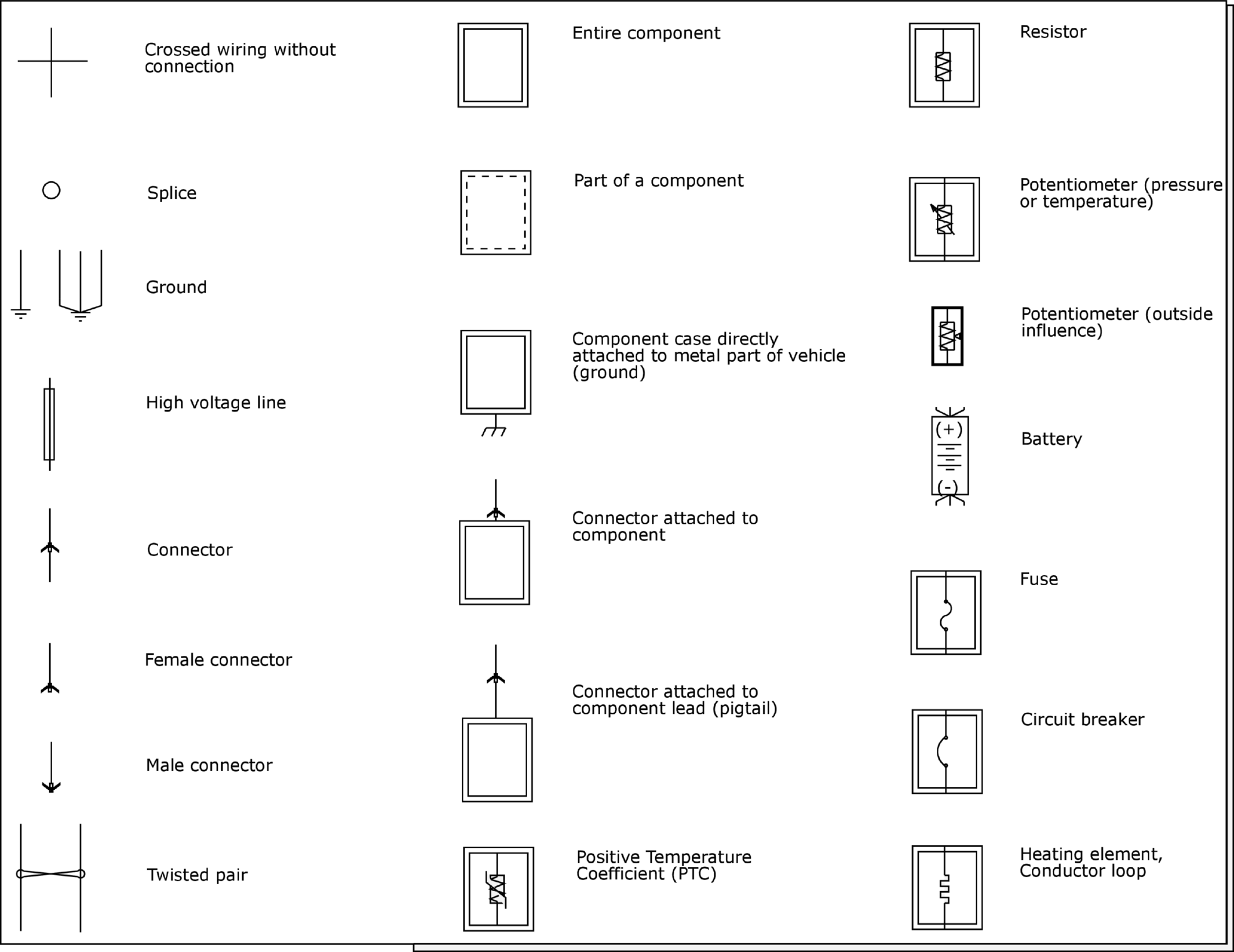

GFDW81296Courtesy of FORD MOTOR COMPANY

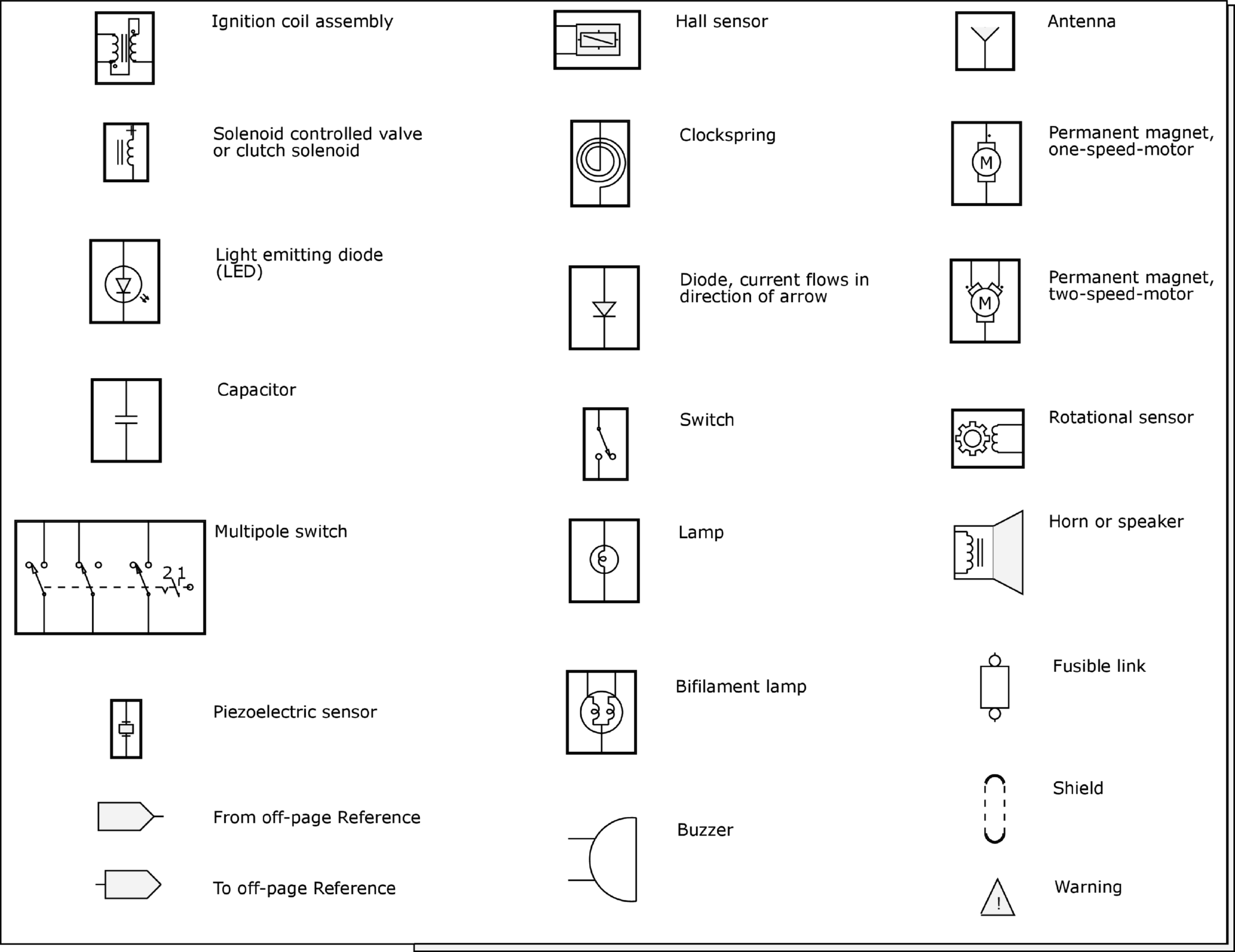

GFDW81297Courtesy of FORD MOTOR COMPANY

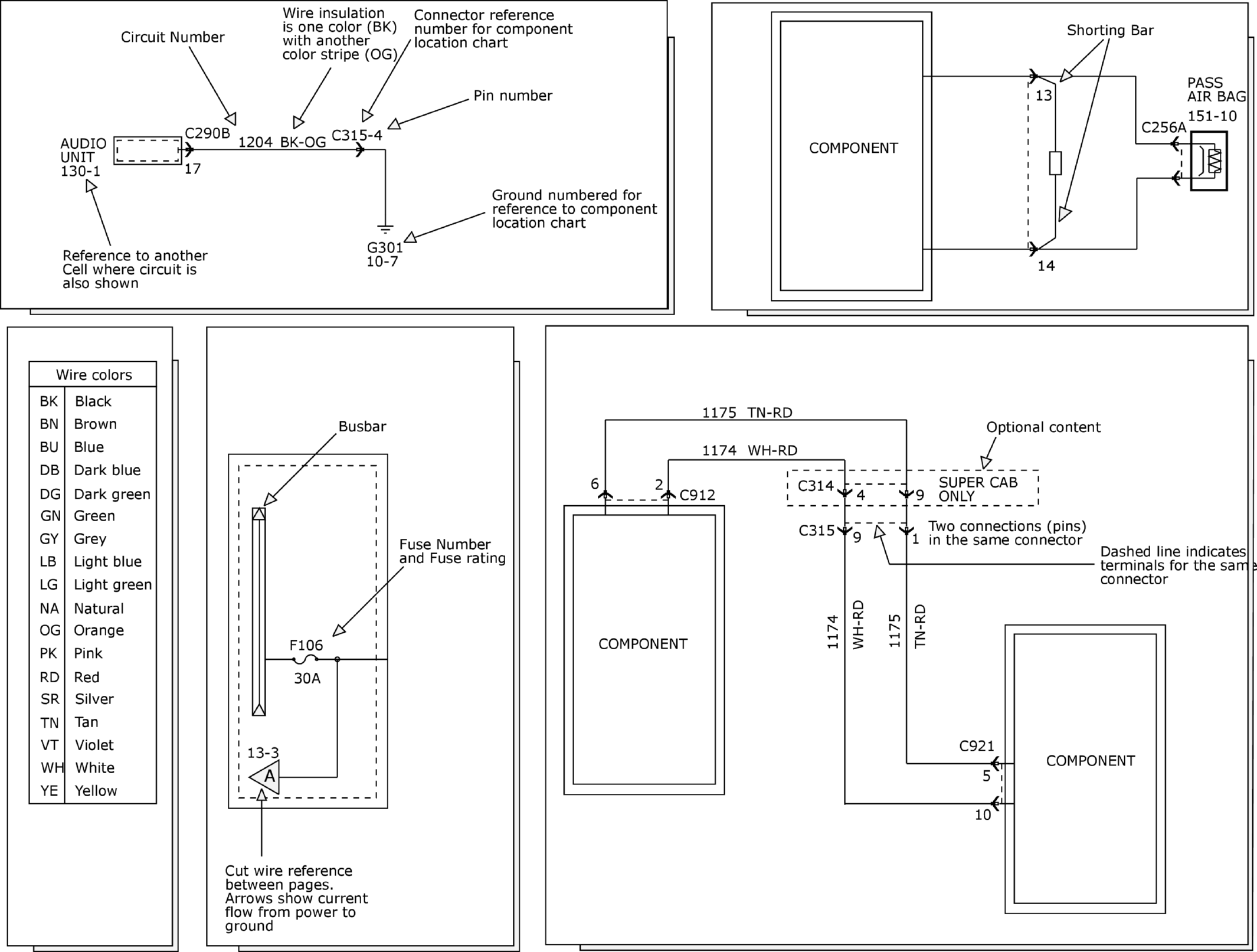

GFDW81298Courtesy of FORD MOTOR COMPANY

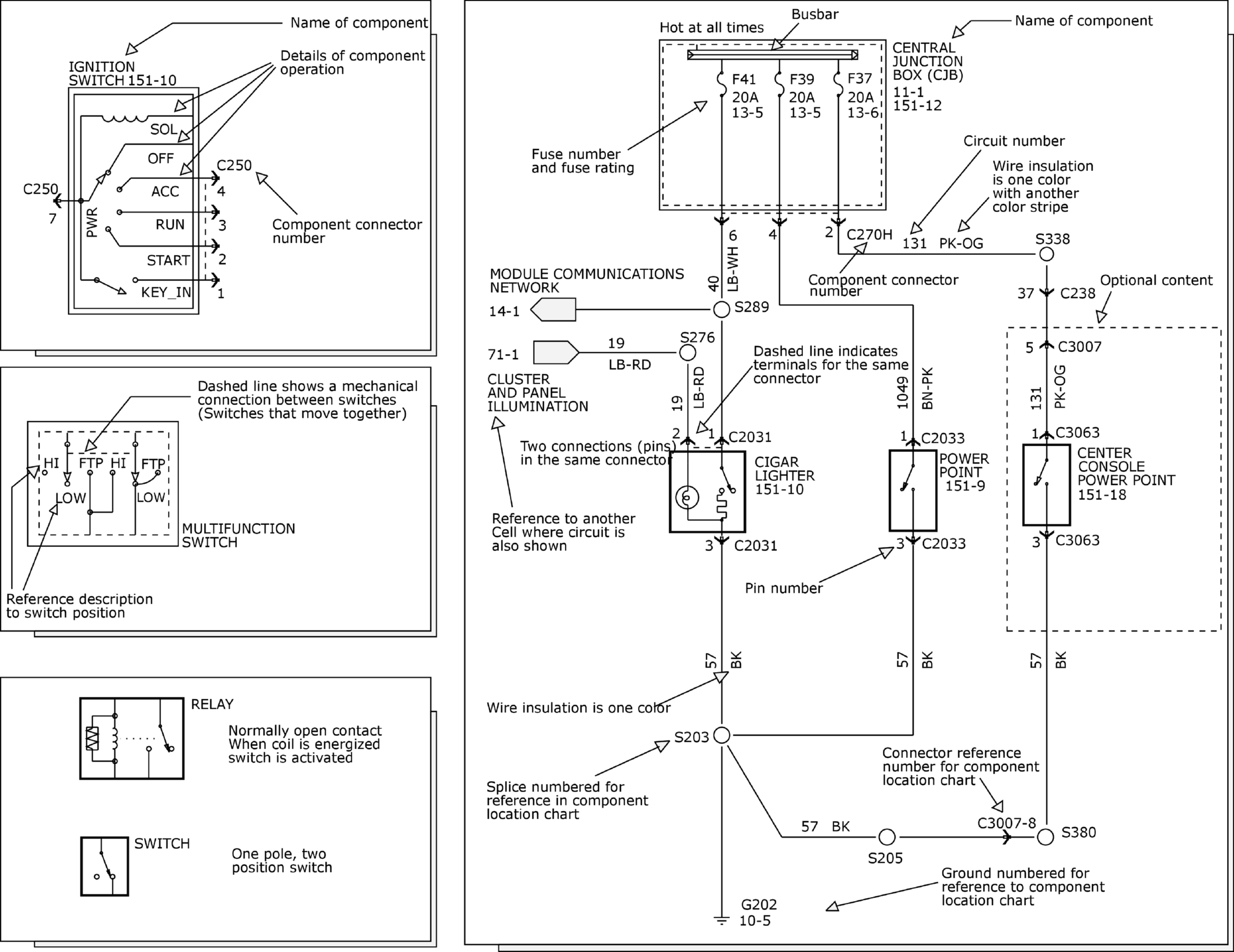

GFDW81299Courtesy of FORD MOTOR COMPANY

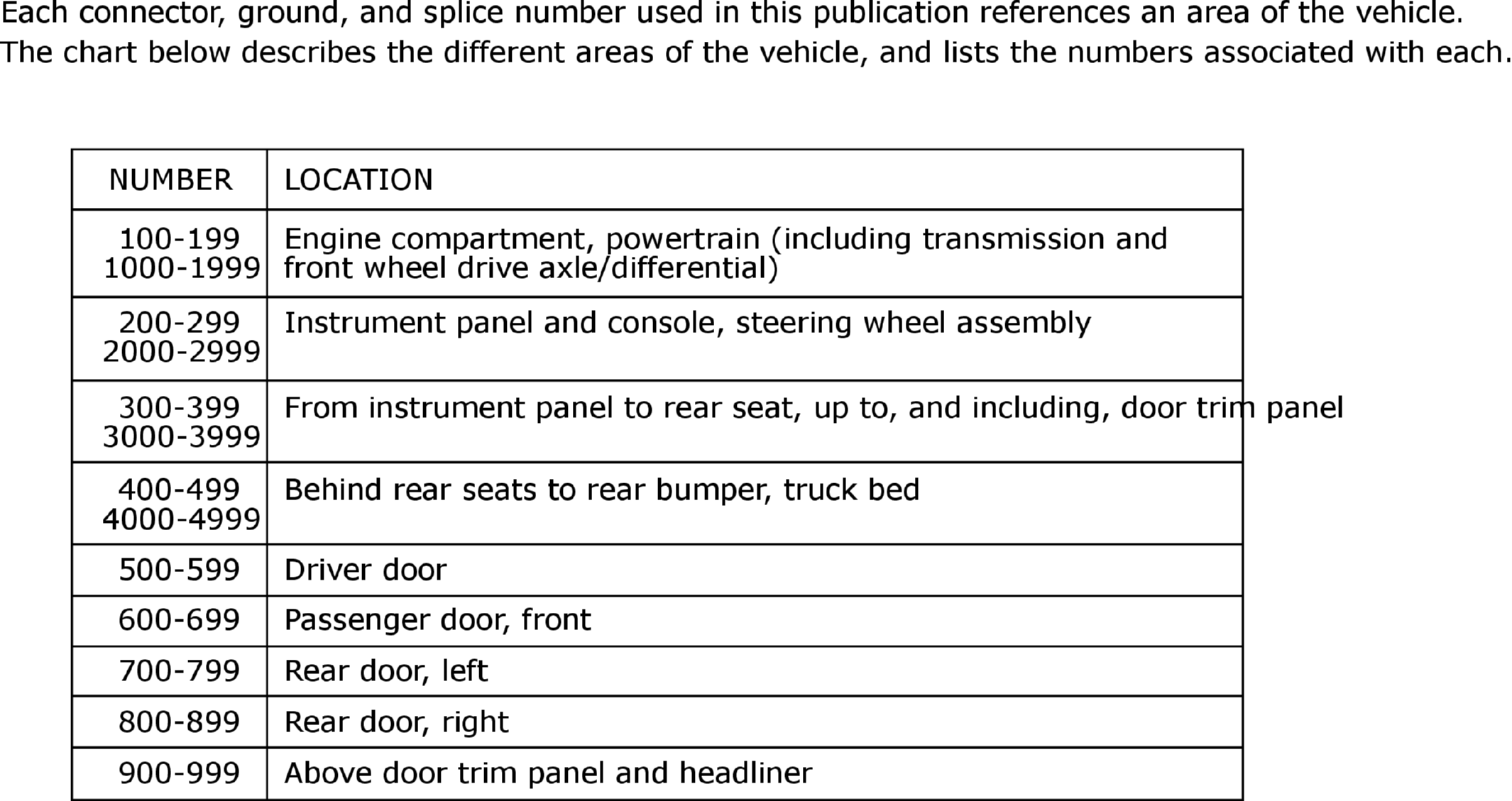

GFDW81300Courtesy of FORD MOTOR COMPANY
