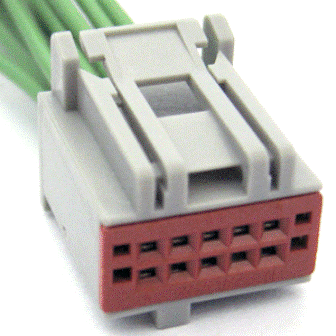

Connector End View (C2611) - COMPACT DISC PLAYER
Connector: C2611
Description
COMPACT DISC PLAYER
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP33 (WH-BN) | 18 | FUSE - 33 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VMEB0 (GN) | 26 | CTRL MOD. - REMOTE CD # AUDIO RIGHT + | |
| 4 | RMEB0 (BN) | 26 | CTRL MOD. - REMOTE CD # AUDIO RIGHT - | |
| 5 | DMEB0 (*) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D | |
| 6 | VDB29 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
| 7 | VDB30 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
| 8 | VMEA9 (BU) | 26 | CTRL MOD. - REMOTE CD # AUDIO LEFT + | |
| 9 | RMEA9 (VT) | 26 | CTRL MOD. - REMOTE CD # AUDIO LEFT - | |
| 10 | GD215 (BK-GY) | 18 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-934 |
Service Part Number: 3U2Z-14S411-LSB Gauge: 18 Pin material: Silver Cavities: 10 Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp / Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal |
