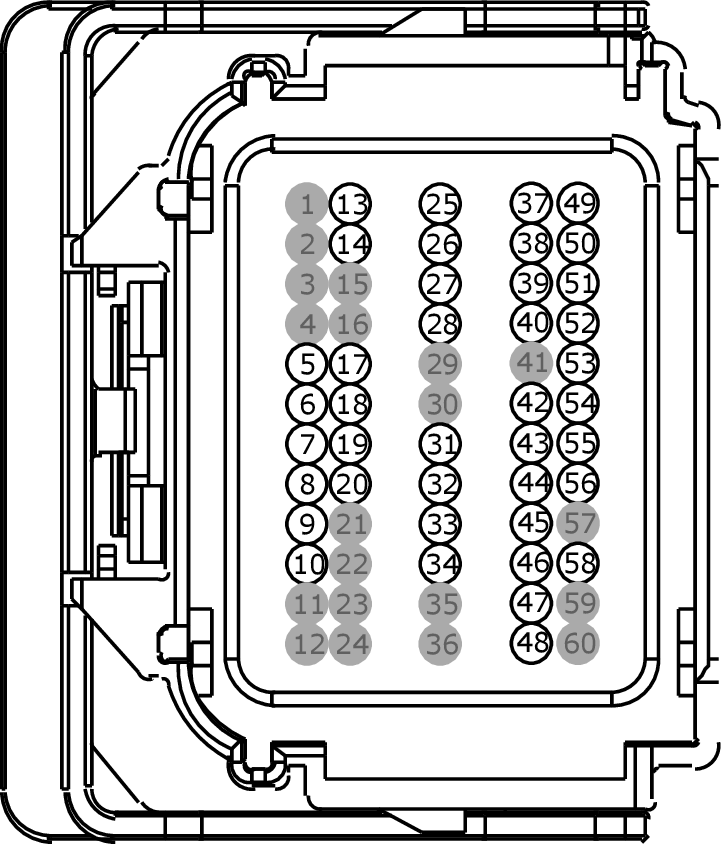

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CR180 (YE) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER + | |
| 6 | RR180 (BN-GN) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER - | |
| 7 | RR181 (BU-OG) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD - | |
| 8 | CR181 (WH) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD + | |
| 9 | CR171 (VT-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) + | |
| 10 | RR171 (GY) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) - | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | CR147 (GN-OG) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + | |
| 14 | RR147 (YE-VT) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | CR111 (BN-WH) | 18 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + | Fusion |
| 17 | CR111 (BN-WH) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + | MKZ |
| 18 | RR111 (YE-VT) | 18 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - | Fusion |
| 18 | RR111 (YE-VT) | 20 | CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - | MKZ |
| 19 | RR170 (BN-BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) - | |
| 20 | CR170 (GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) + | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | CR109 (BN-BU) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | Fusion |
| 25 | CR109 (BN-BU) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | MKZ |
| 26 | RR109 (BU-GN) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | MKZ |
| 26 | RR109 (BU-GN) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | Fusion |
| 27 | VR215 (YE-VT) | 4 | SENSOR - SEAT TRACK POSITION DRIVER | |
| 28 | VR216 (GN-OG) | 4 | SENSOR - SEAT TRACK POSITION FRONT PASSENGER | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | VR218 (YE-OG) | 22 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | Fusion |
| 31 | VR222 (GY-OG) | 22 | SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE | MKZ |
| 32 | RR132 (BU-WH) | 22 | CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - | Fusion |
| 32 | RR136 (BN-WH) | 22 | CTRL MOD. - SENSOR SIDE IMPACT ROW 3 PASSENGER SIDE - | MKZ |
| 33 | RR131 (VT-GY) | 22 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | Fusion |
| 33 | RR135 (GN-BN) | 22 | CTRL MOD. - SENSOR SIDE IMPACT ROW 3 DRIVER SIDE - | MKZ |
| 34 | VR217 (GY-YE) | 22 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | Fusion |
| 34 | VR221 (BU-GN) | 22 | SENSOR - SIDE IMPACT ROW 3 DRIVER SIDE | MKZ |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | CR106 (VT-GY) | 4 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + | |
| 38 | RR106 (YE-OG) | 4 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - | |
| 39 | RR105 (GY-YE) | 4 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - | |
| 40 | CR105 (GN-BU) | 4 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + | |
| 41 | * | * | Not Used | |
| 42 | CR167 (YE-VT) | 22 | CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) | Fusion |
| 42 | CR167 (YE-VT) | 18 | CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) | MKZ |
| 43 | VR218 (YE-OG) | 4 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | MKZ |
| 43 | VR220 (VT-OG) | 4 | SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE | Fusion |
| 44 | RR132 (BU-WH) | 4 | CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - | MKZ |
| 44 | RR134 (BN-BU) | 4 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - | Fusion |
| 45 | RR131 (VT-GY) | 4 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | MKZ |
| 45 | RR133 (GY-BN) | 4 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - | Fusion |
| 46 | VR217 (GY-YE) | 4 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | MKZ |
| 46 | VR219 (GN-WH) | 4 | SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE | Fusion |
| 47 | VDB26 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | Fusion |
| 47 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | PHEV |
| 47 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | MKZ |
| 48 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | PHEV |
| 48 | VDB25 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | Fusion |
| 48 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | MKZ |
| 49 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | |
| 50 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | |
| 51 | RR120 (BN-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - | |
| 52 | CR120 (BU-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + | |
| 53 | RR137 (BU-GY) | 20 | CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER - | |
| 54 | CR201 (GN-BU) | 4 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 55 | CR203 (GY-VT) | 4 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD | |
| 56 | CR204 (VT) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE | |
| 57 | * | * | Not Used | |
| 58 | CR206 (BN) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD | |
| 59 | * | * | Not Used | |
| 60 | * | * | Not Used |
