Safety Belt Tension Sensor (BTS), passenger

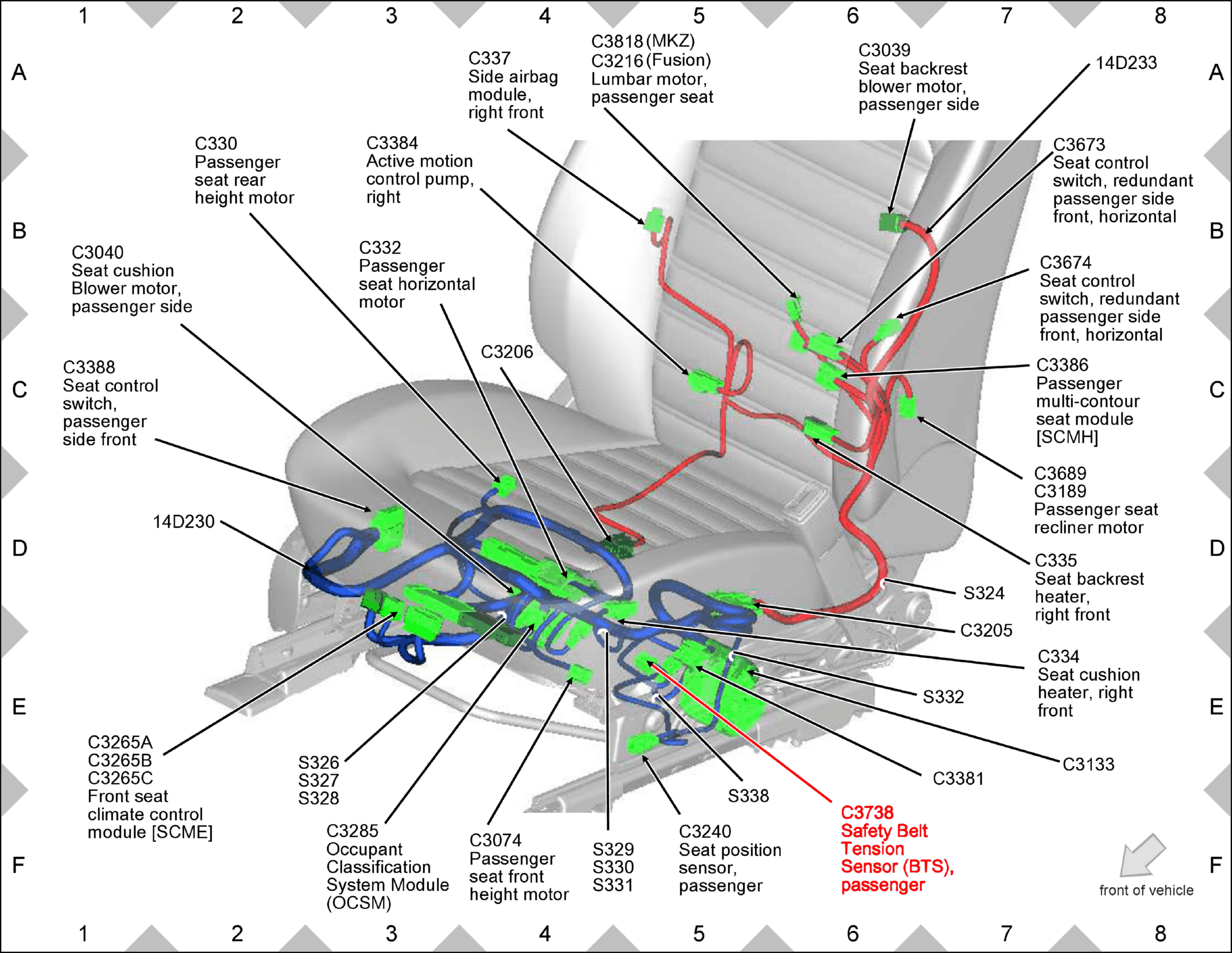

Fig 1: Safety Belt Tension Sensor (BTS), passenger Components Location

GFDW81749

Courtesy of FORD MOTOR COMPANY
