Remote Keyless Entry (RKE) exterior sounder

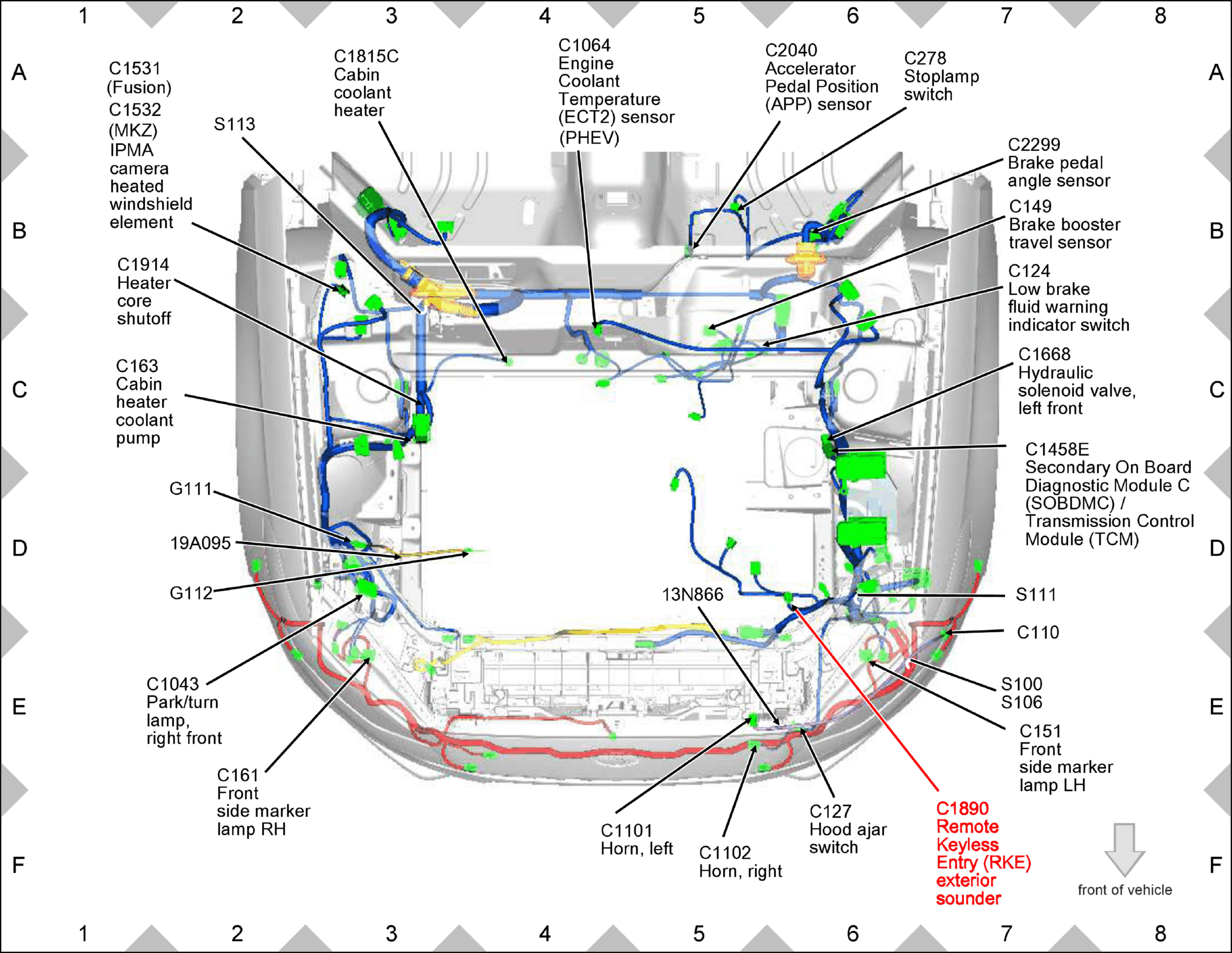

Fig 1: Remote Keyless Entry (RKE) exterior sounder Components Location

GFDW81734

Courtesy of FORD MOTOR COMPANY
