Brake booster solenoid
Brake booster solenoid

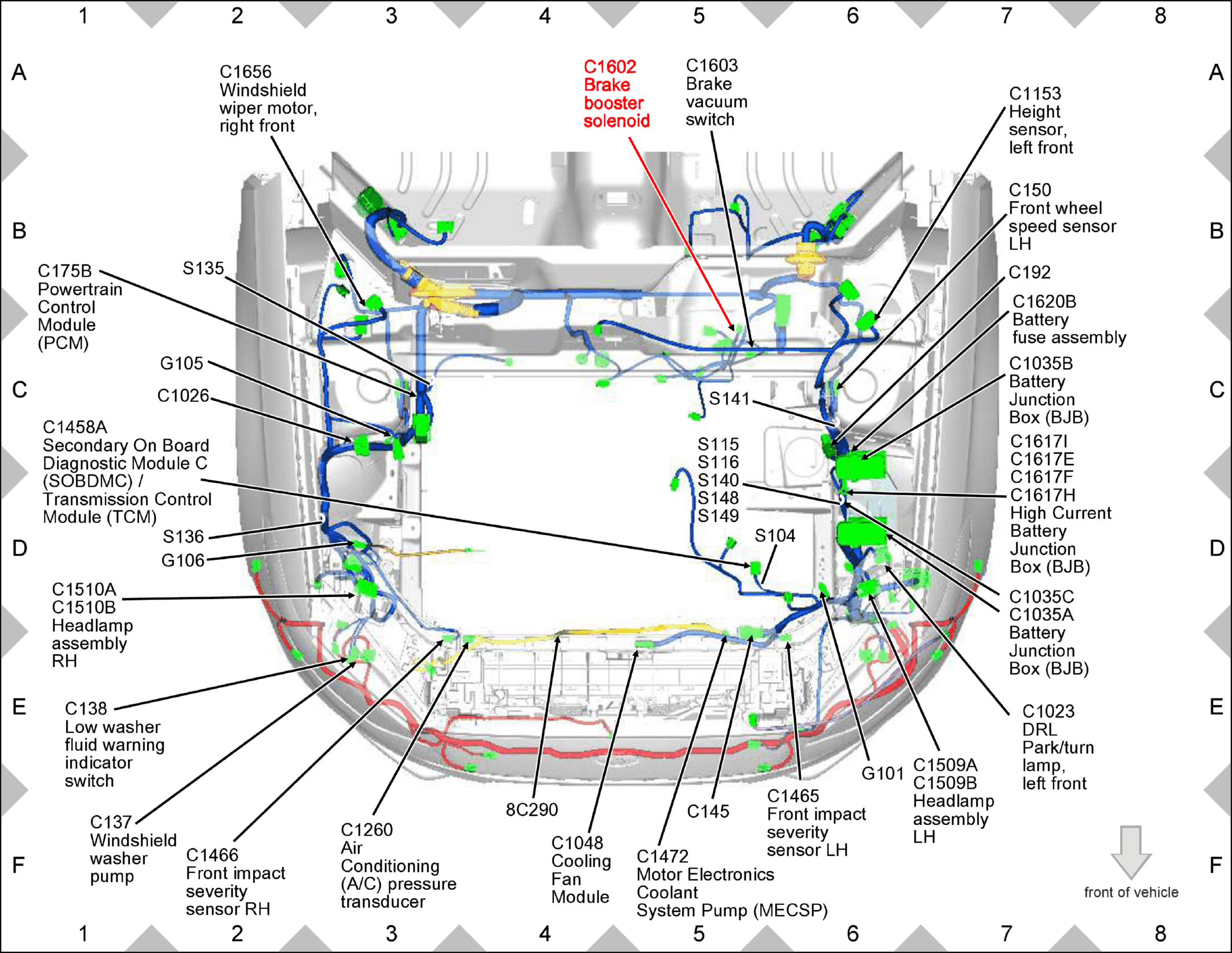

Fig 1: Brake booster solenoid Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
