Rear Wheel Bearing and Rear Wheel Hub - AWD: Installation

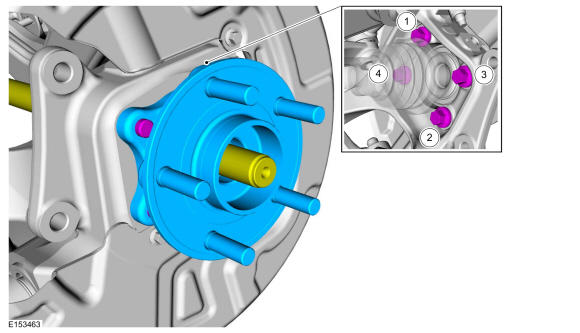

  1. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.

    Torque: 98 lb.ft (133 Nm)

    GFD197281Courtesy of FORD MOTOR COMPANY
  2. Install the brake disc. Refer to: Brake Disc .

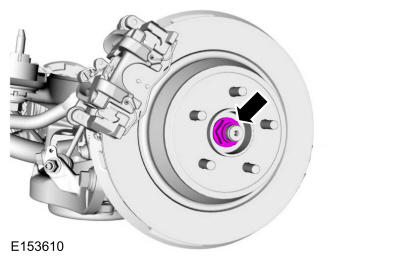

  3. Install the new wheel hub nut.

    Torque: 148 lb.ft (200 Nm)

    GFD197282Courtesy of FORD MOTOR COMPANY
  4. Install the wheel and tire. Refer to: Wheel and Tire .
