Remote Keyless Entry And Alarm

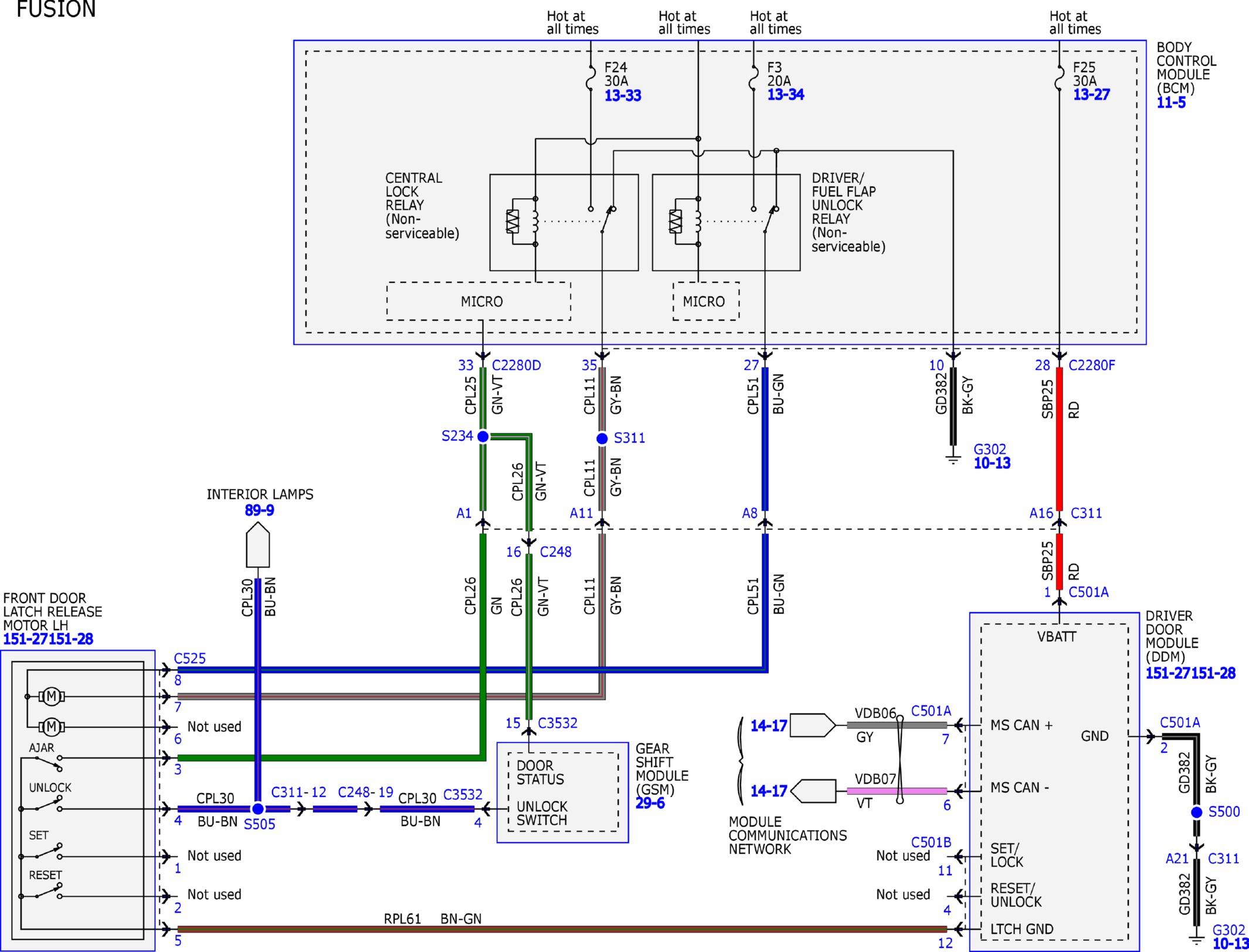

Fig 1: Remote Keyless Entry and Alarm (1 of 18)

GFDW81212

Courtesy of FORD MOTOR COMPANY

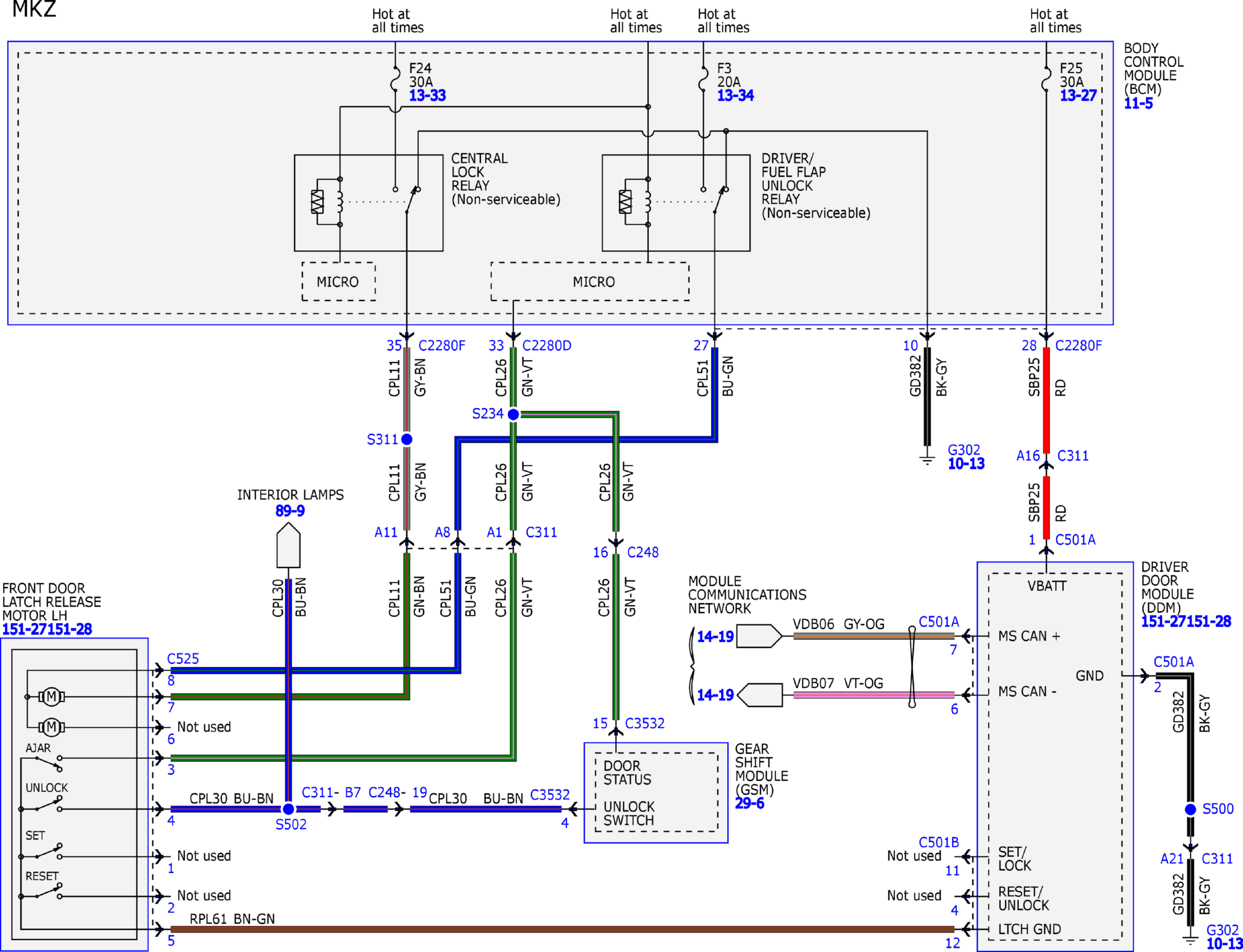

Fig 2: Remote Keyless Entry and Alarm (2 of 18)

GFDW81213

Courtesy of FORD MOTOR COMPANY

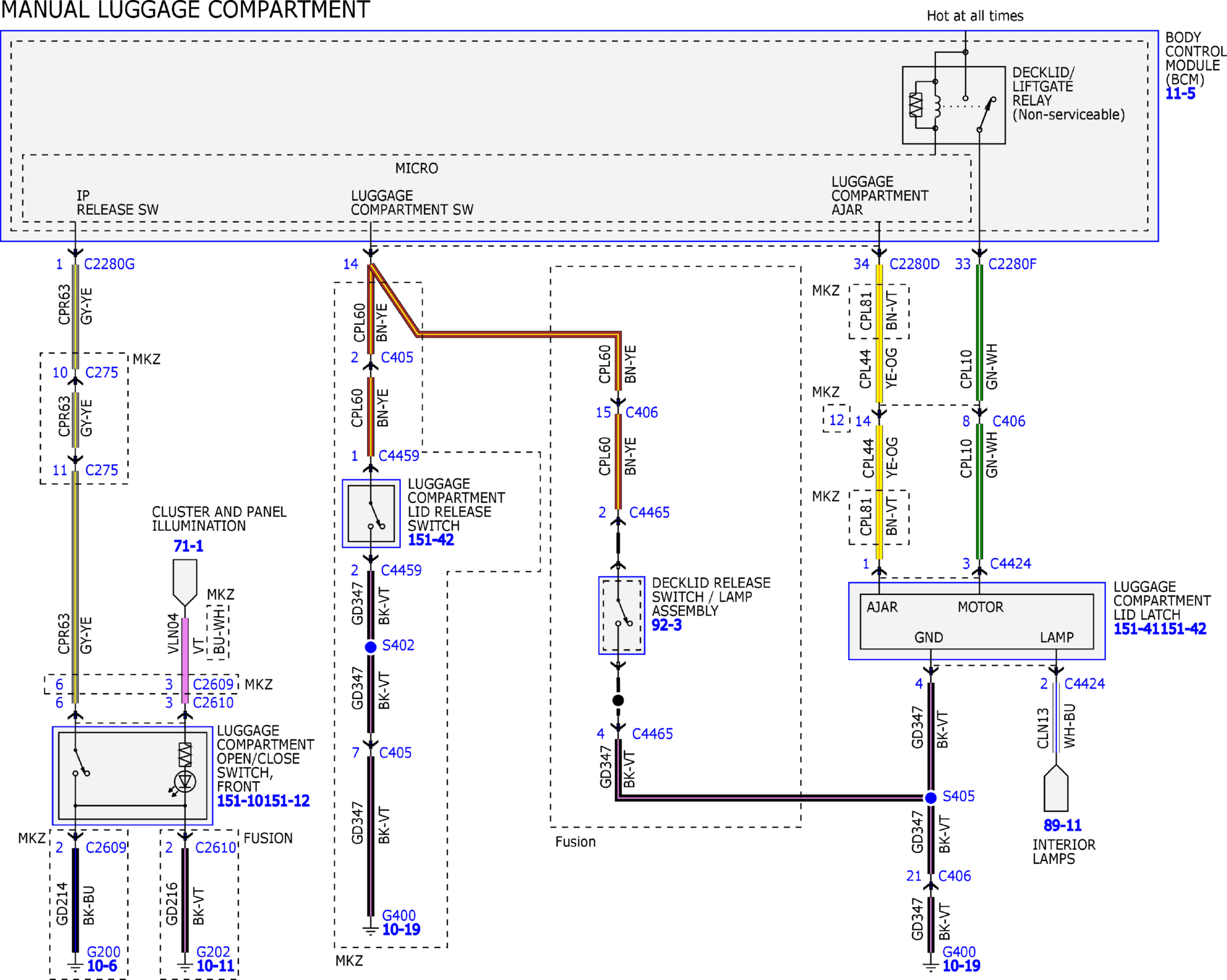

Fig 3: Remote Keyless Entry and Alarm (3 of 18)

GFDW81214

Courtesy of FORD MOTOR COMPANY

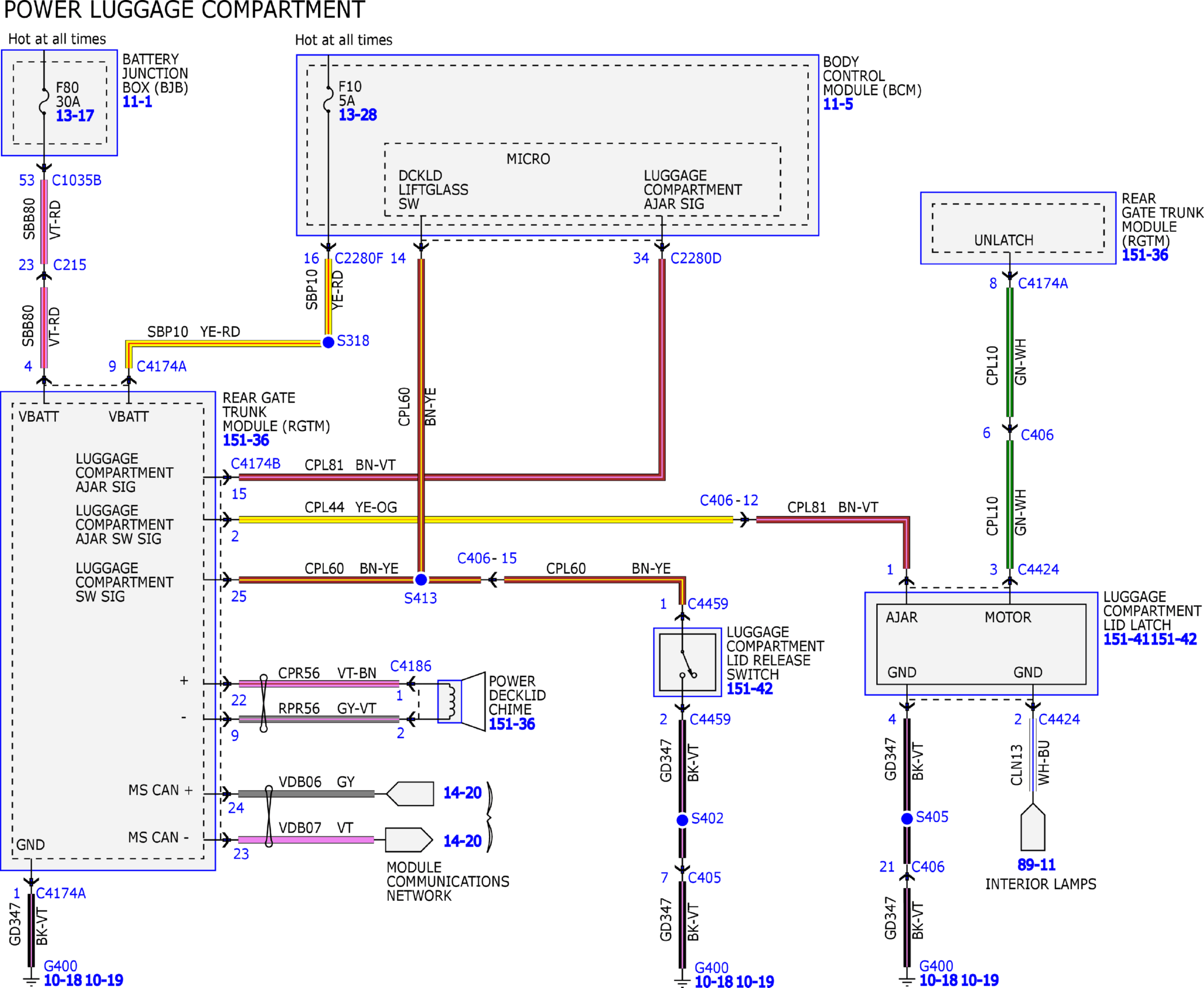

Fig 4: Remote Keyless Entry and Alarm (4 of 18)

GFDW81215

Courtesy of FORD MOTOR COMPANY

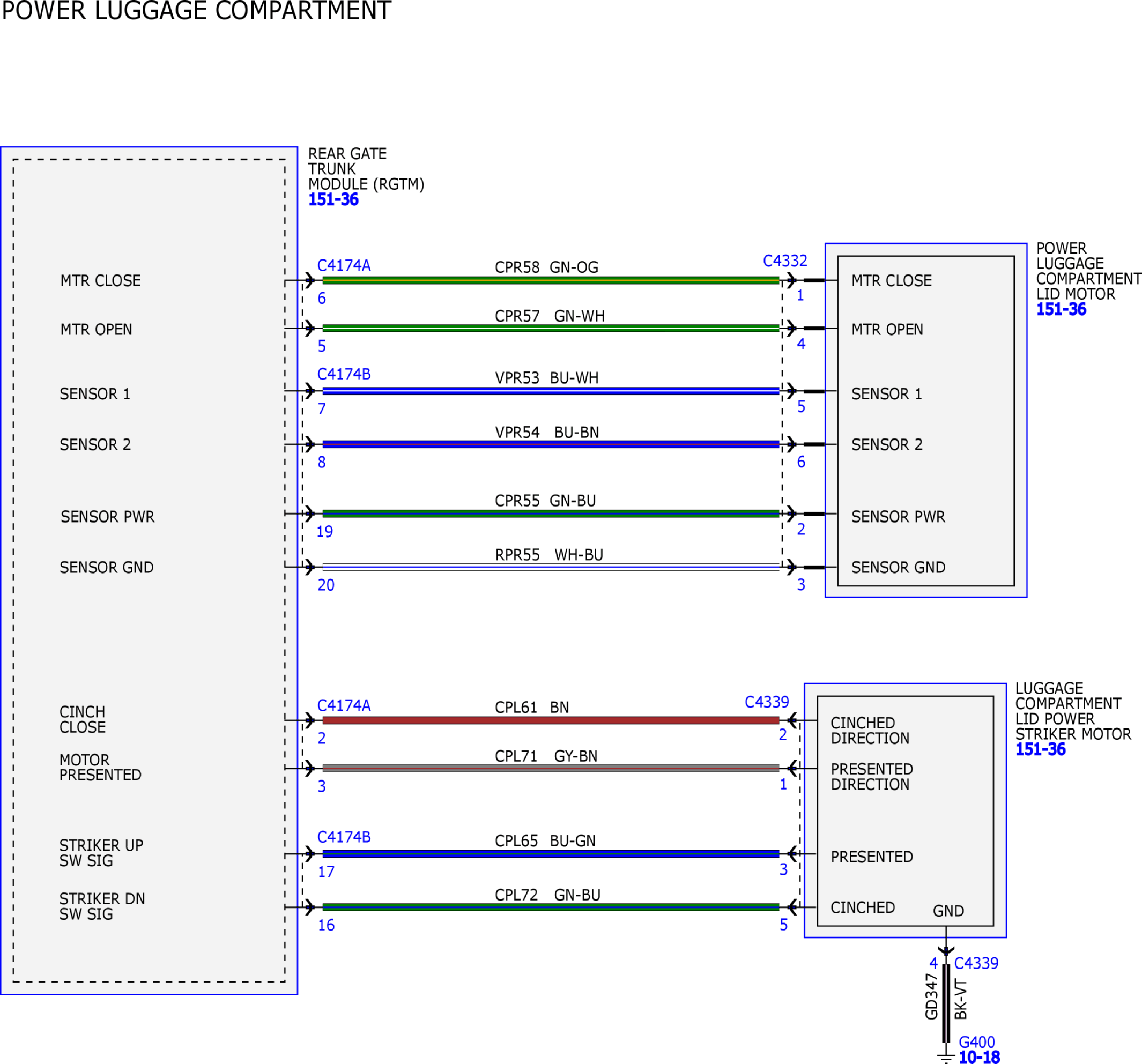

Fig 5: Remote Keyless Entry and Alarm (5 of 18)

GFDW81216

Courtesy of FORD MOTOR COMPANY

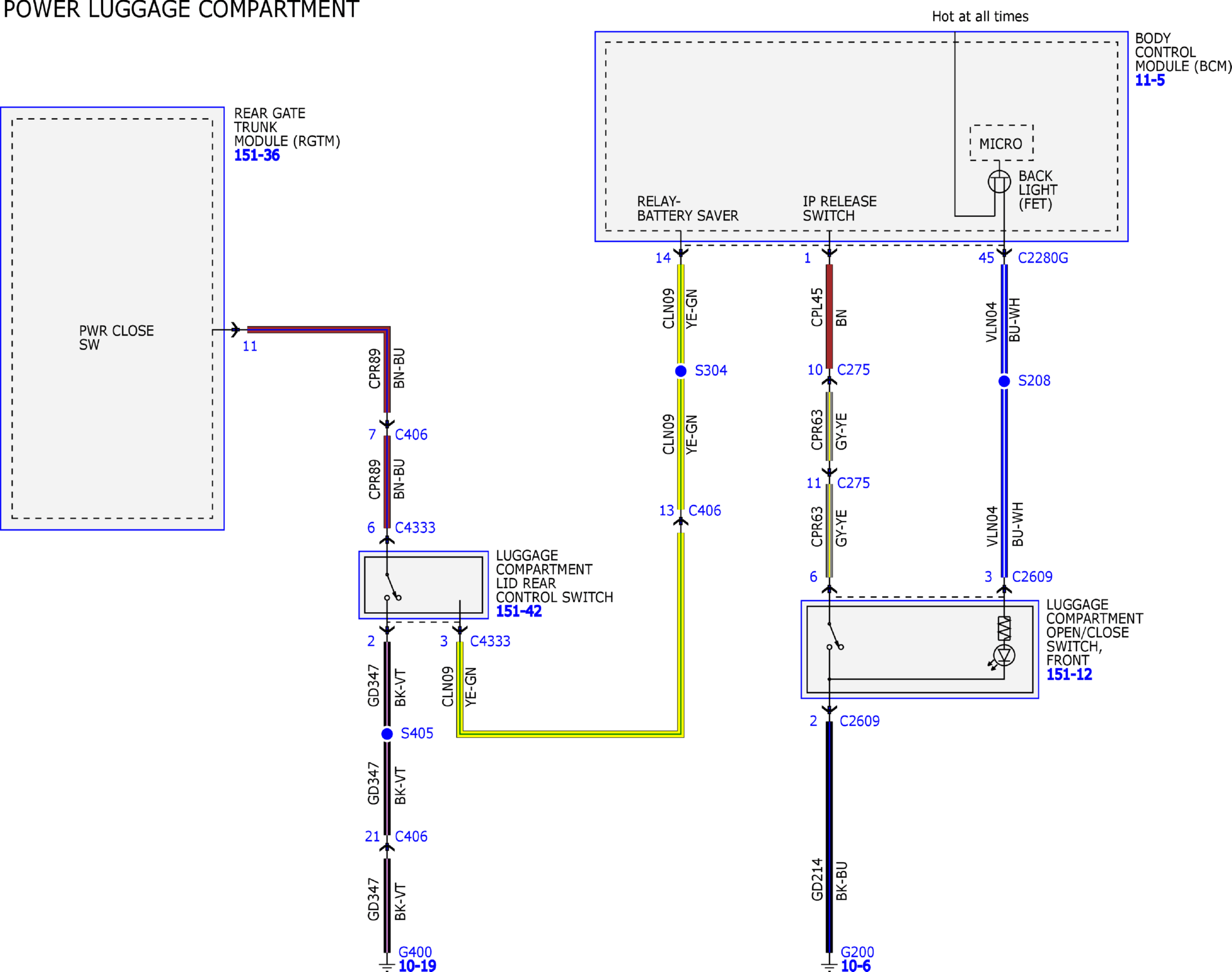

Fig 6: Remote Keyless Entry and Alarm (6 of 18)

GFDW81217

Courtesy of FORD MOTOR COMPANY

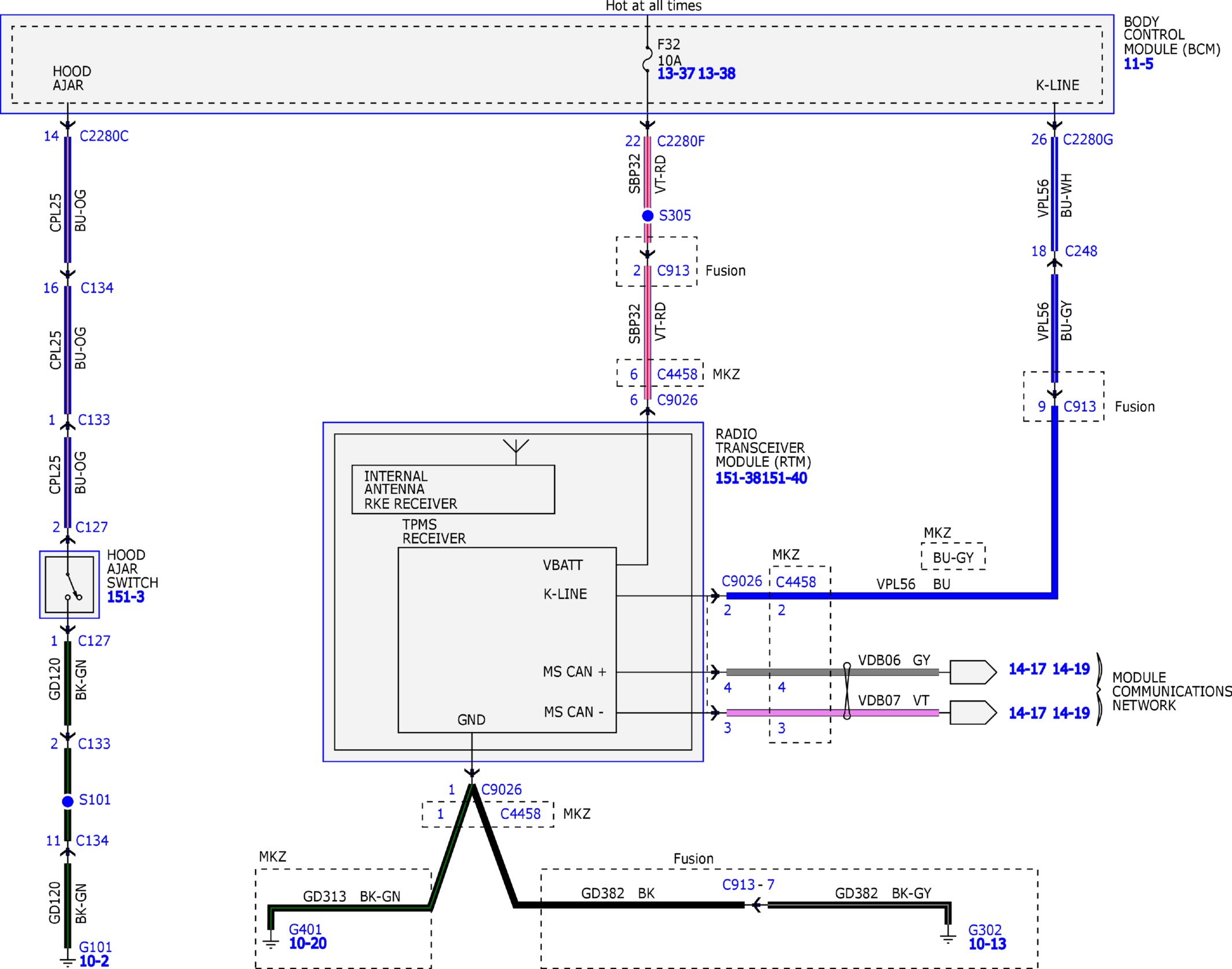

Fig 7: Remote Keyless Entry and Alarm (7 of 18)

GFDW81218

Courtesy of FORD MOTOR COMPANY

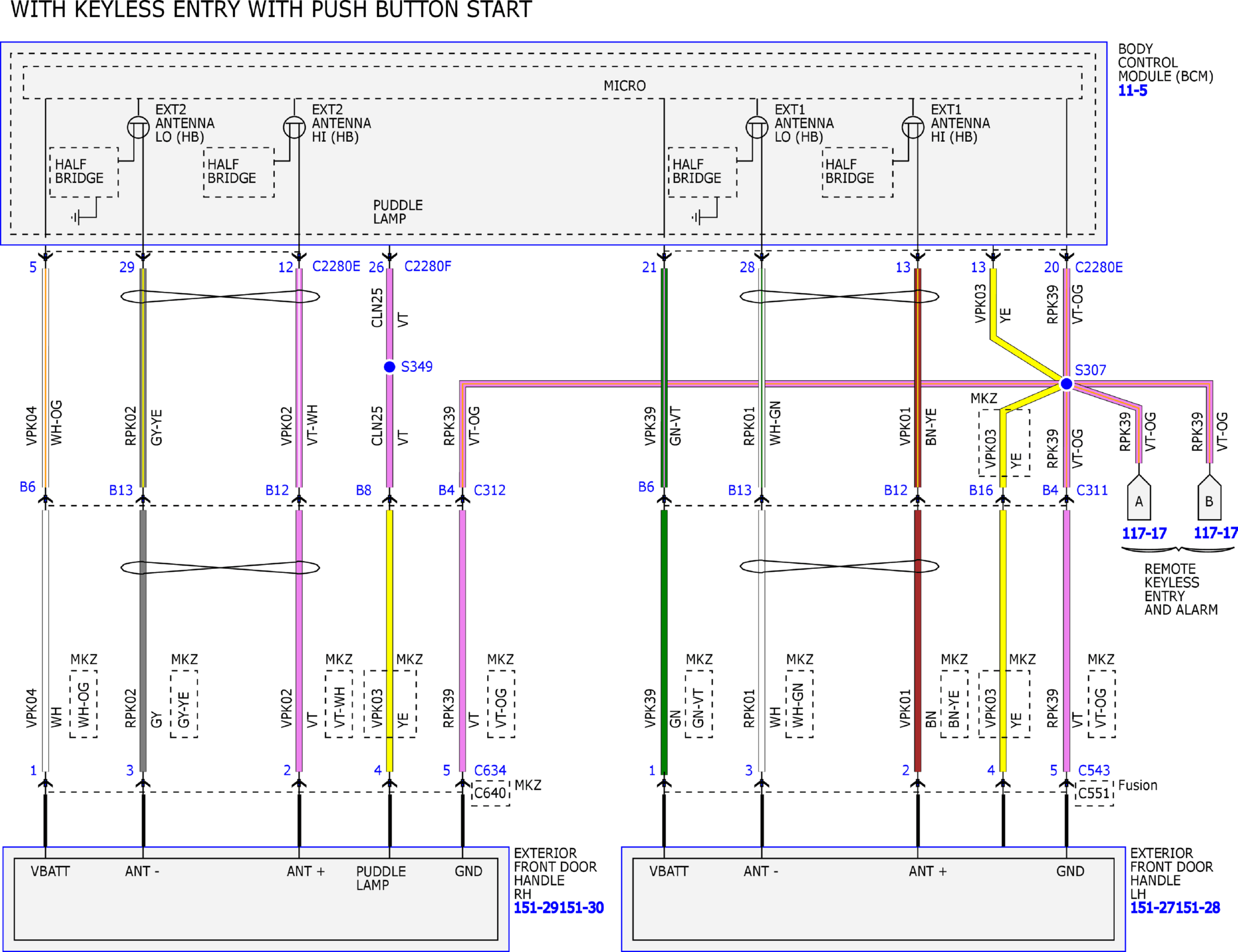

Fig 8: Remote Keyless Entry and Alarm (8 of 18)

GFDW81219

Courtesy of FORD MOTOR COMPANY

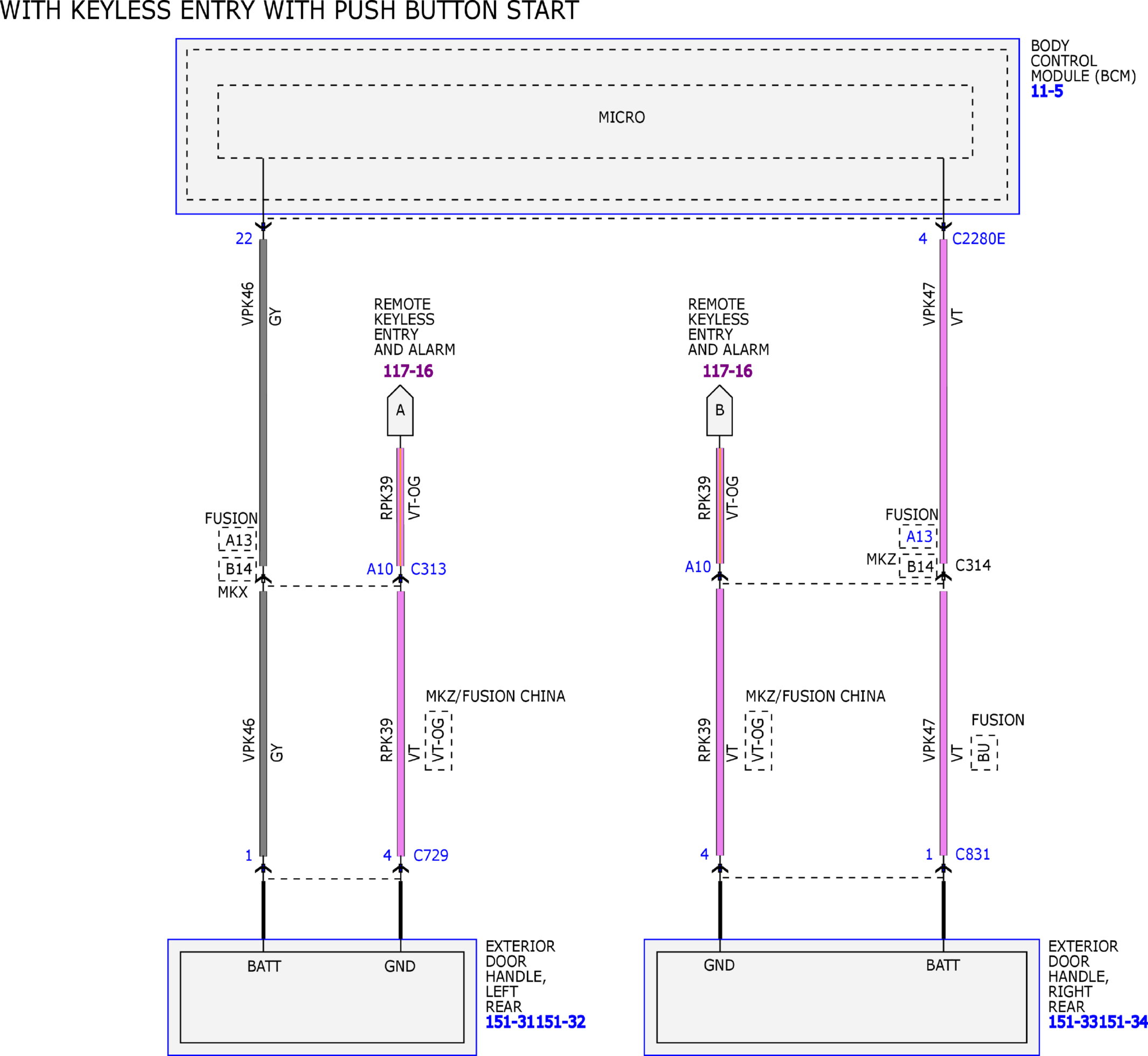

Fig 9: Remote Keyless Entry and Alarm (9 of 18)

GFDW81220

Courtesy of FORD MOTOR COMPANY

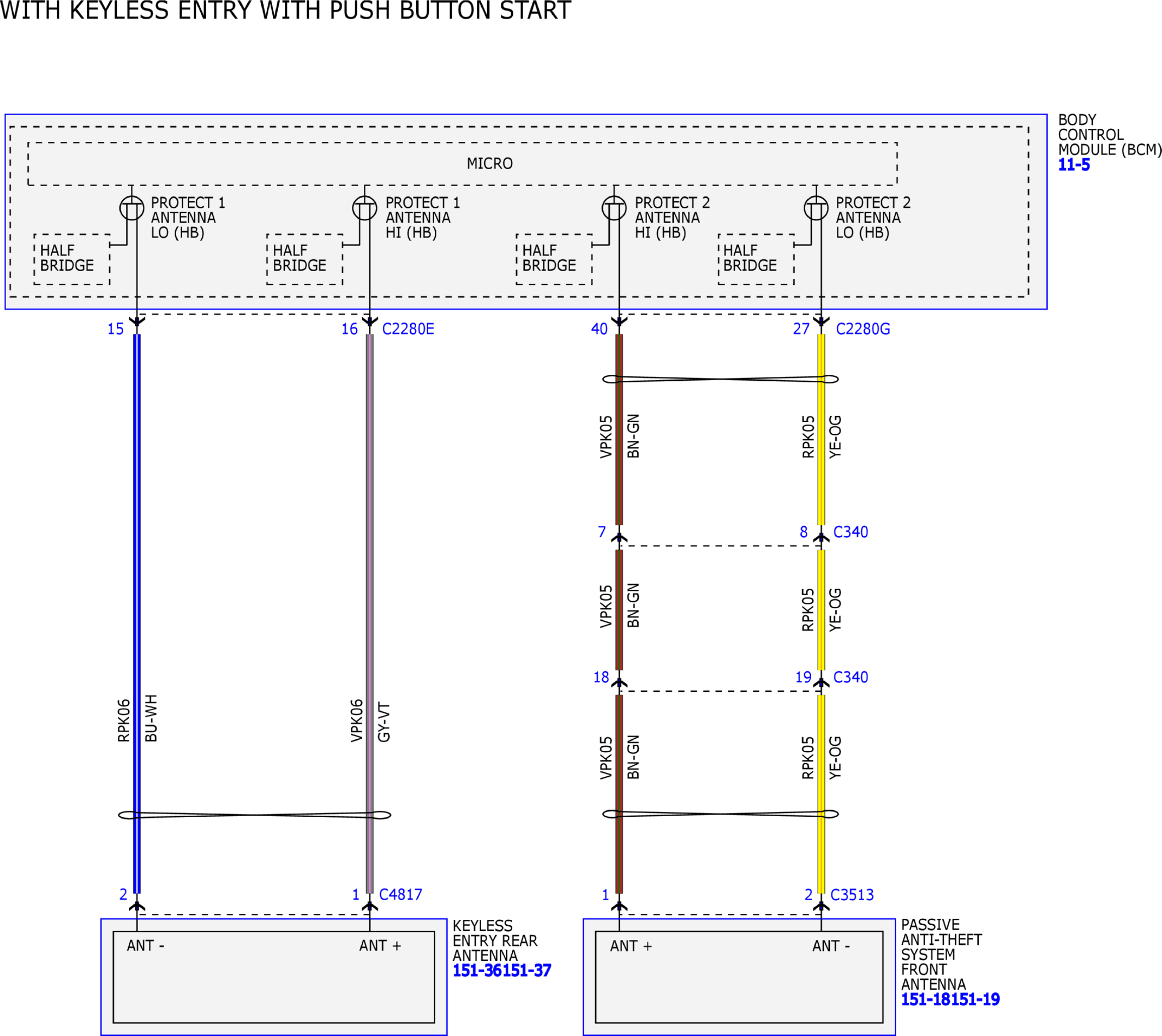

Fig 10: Remote Keyless Entry and Alarm (10 of 18)

GFDW81221

Courtesy of FORD MOTOR COMPANY

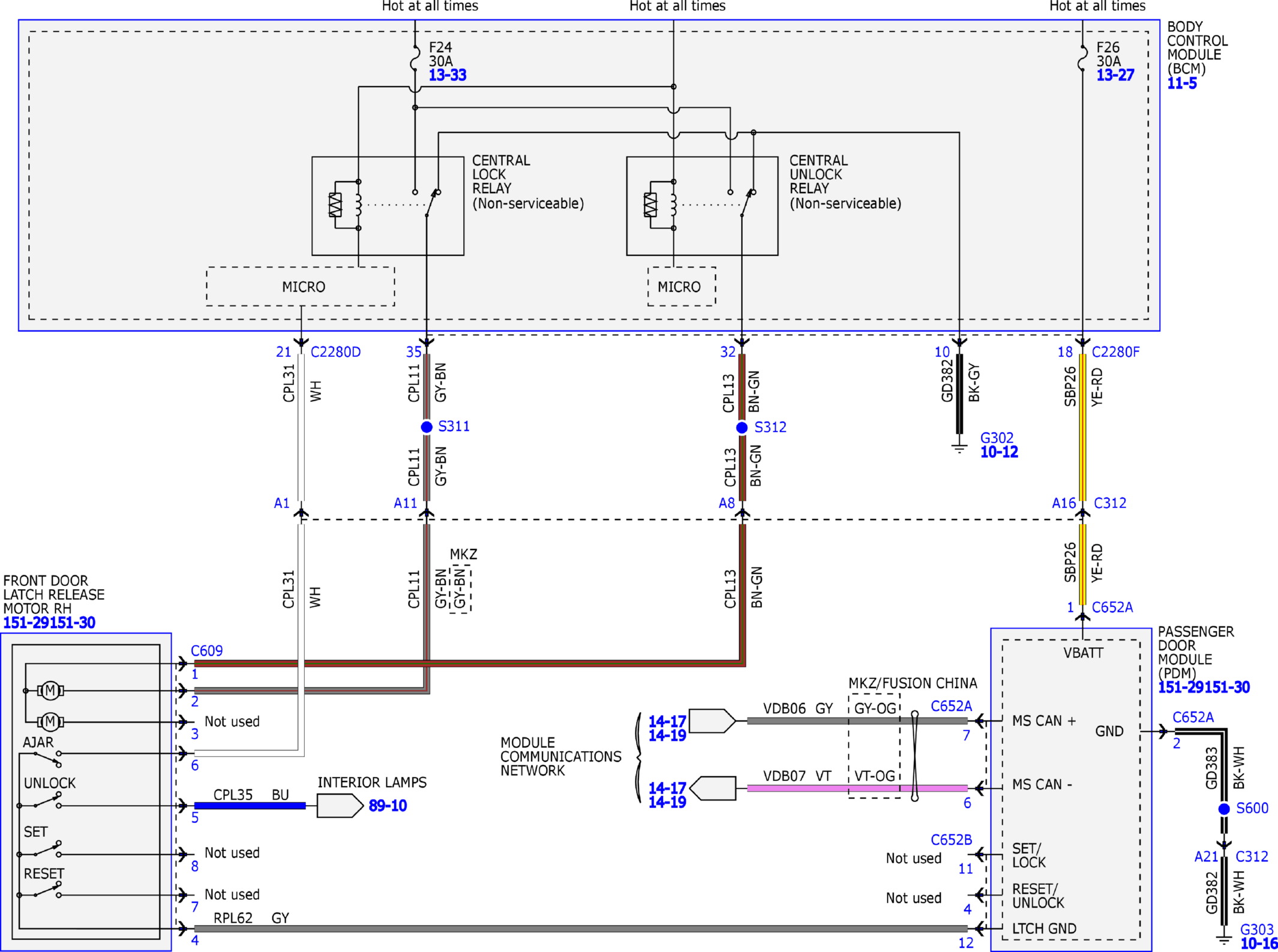

Fig 11: Remote Keyless Entry and Alarm (11 of 18)

GFDW81222

Courtesy of FORD MOTOR COMPANY

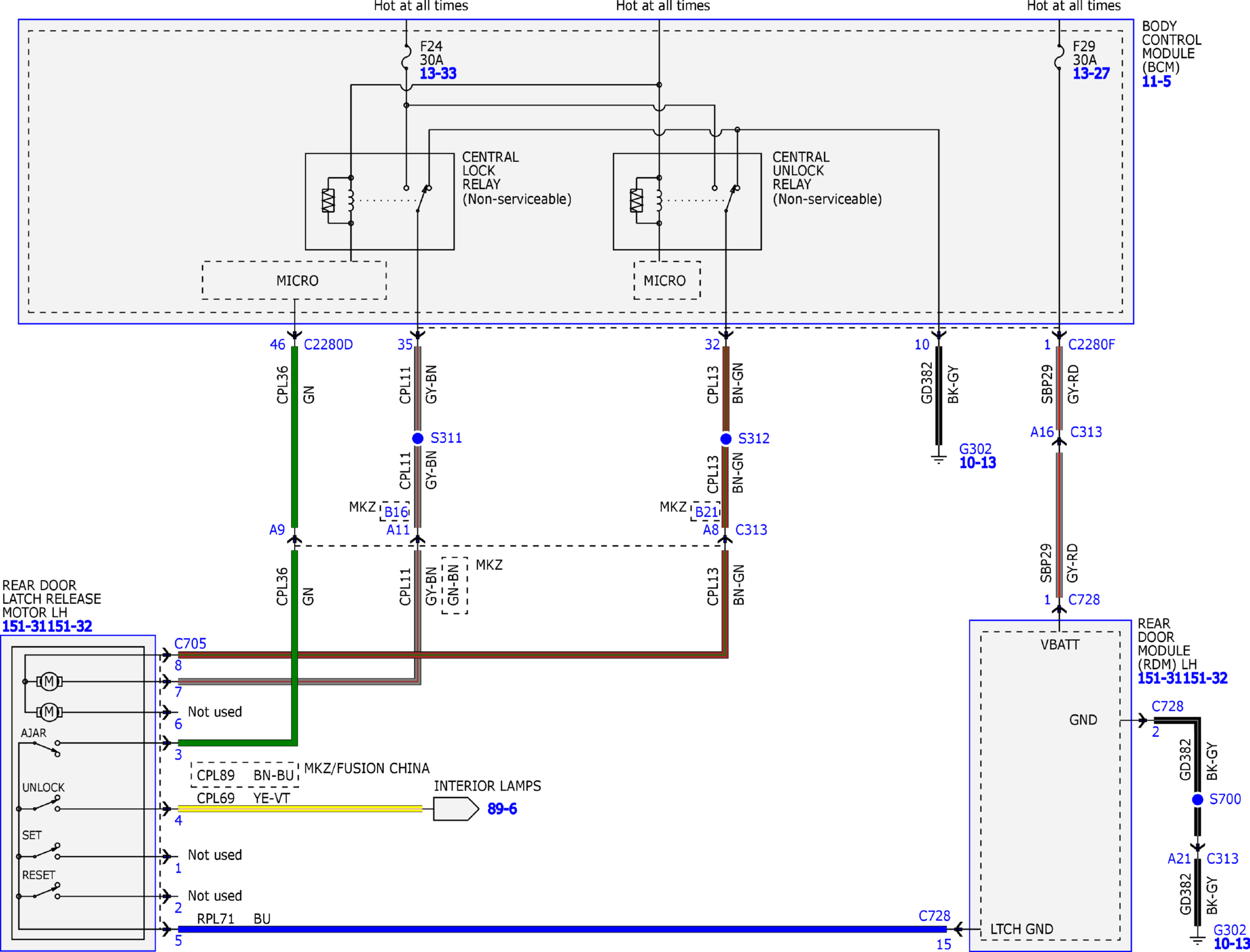

Fig 12: Remote Keyless Entry and Alarm (12 of 18)

GFDW81223

Courtesy of FORD MOTOR COMPANY

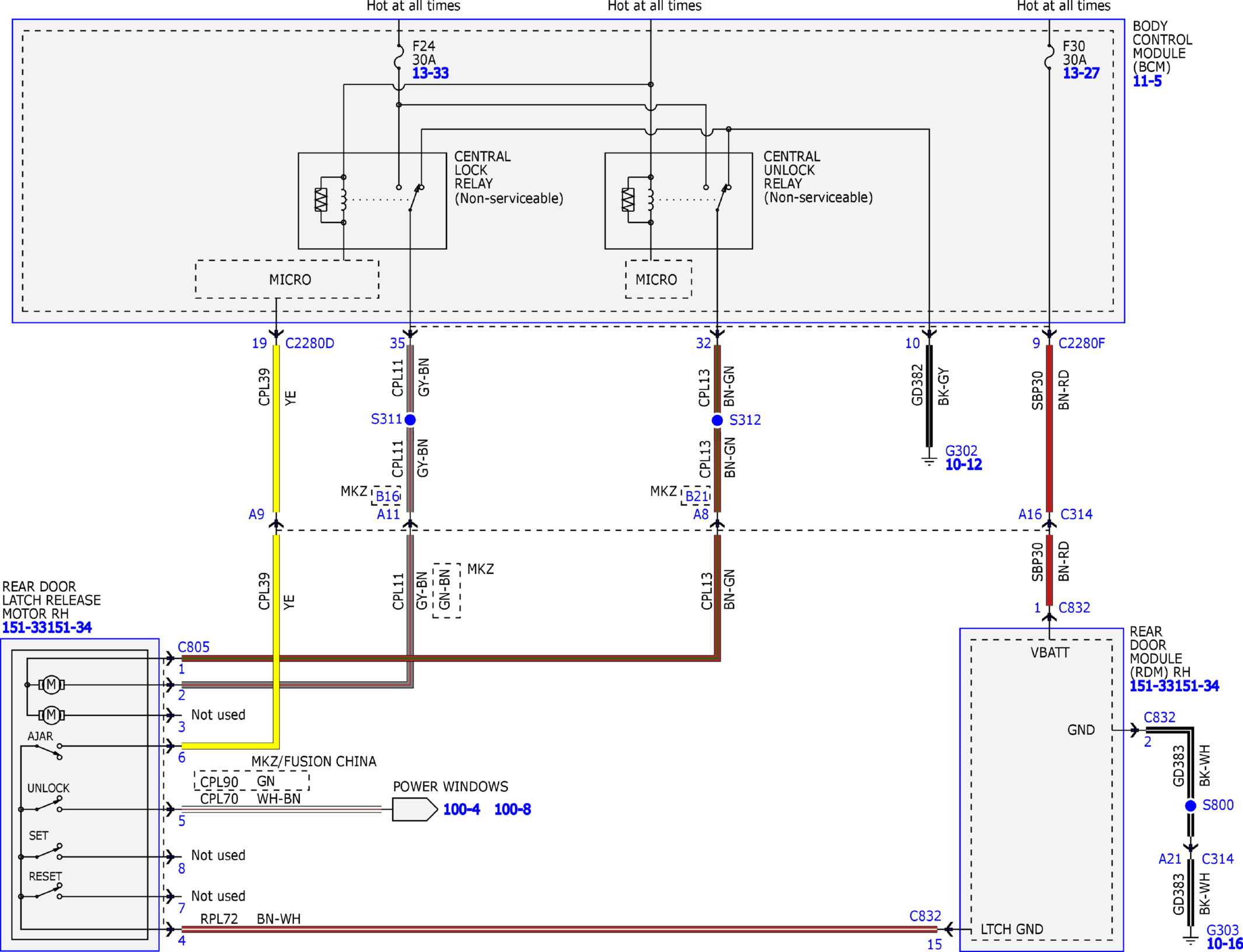

Fig 13: Remote Keyless Entry and Alarm (13 of 18)

GFDW81224

Courtesy of FORD MOTOR COMPANY

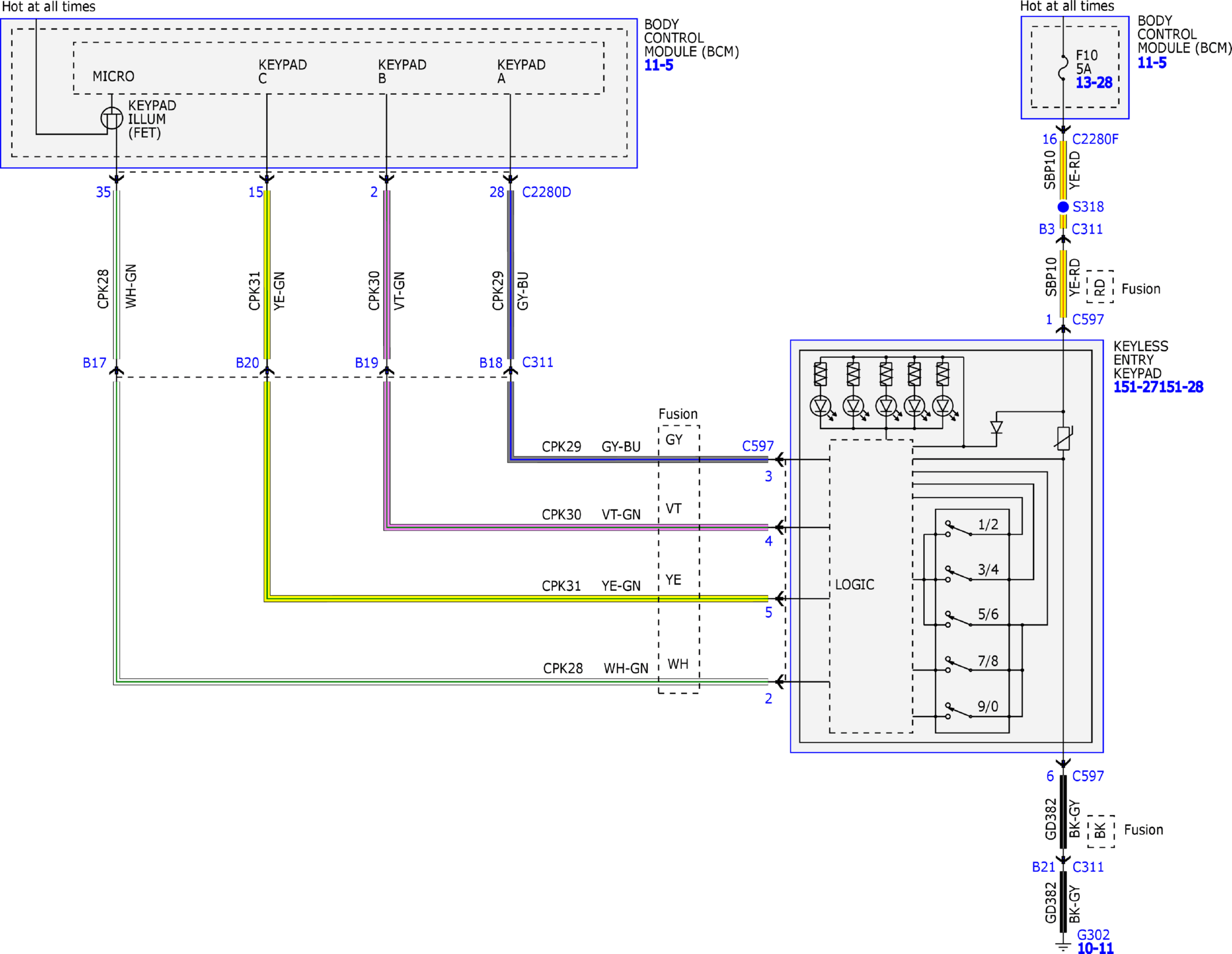

Fig 14: Remote Keyless Entry and Alarm (14 of 18)

GFDW81225

Courtesy of FORD MOTOR COMPANY

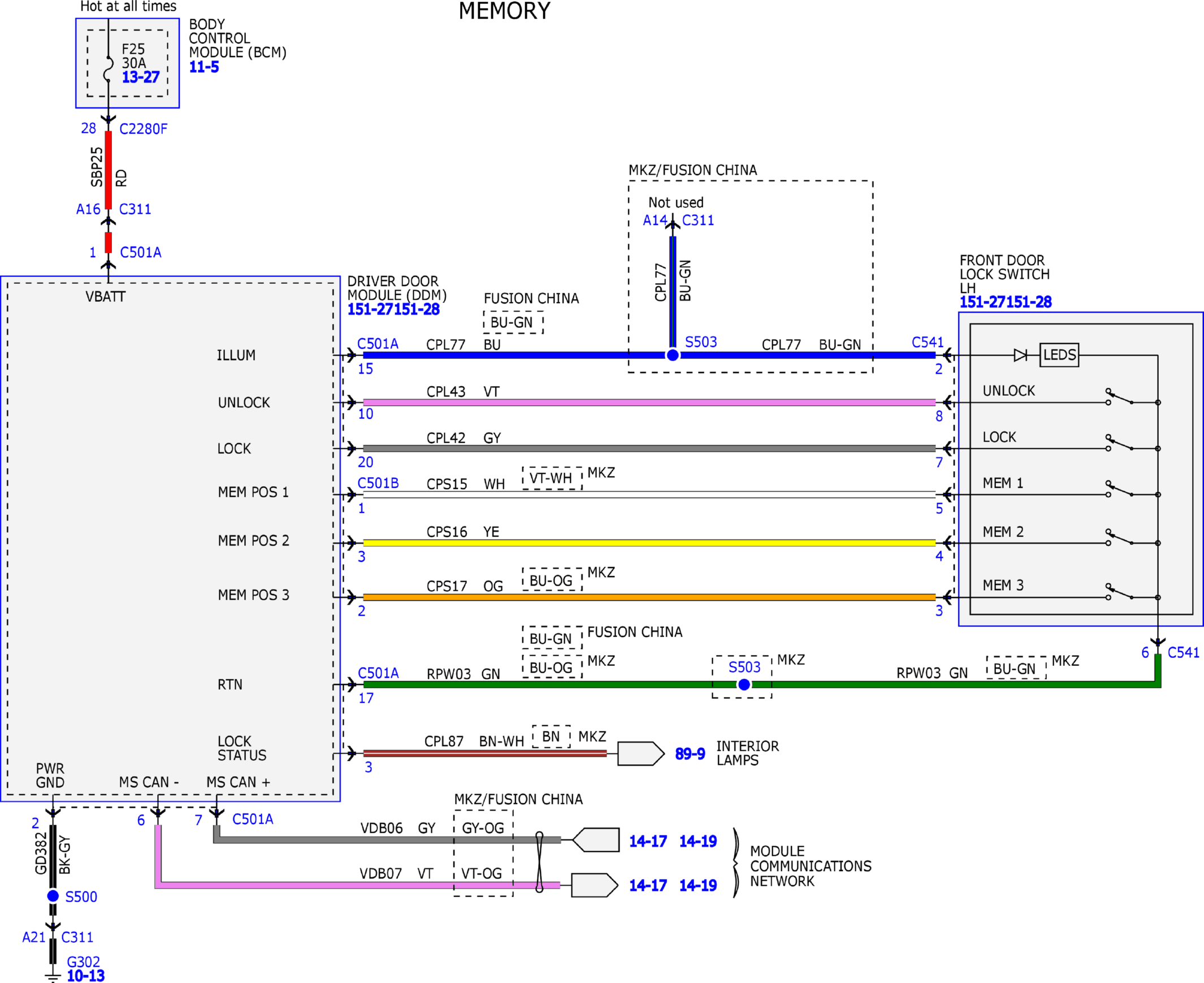

Fig 15: Remote Keyless Entry and Alarm (15 of 18)

GFDW81226

Courtesy of FORD MOTOR COMPANY

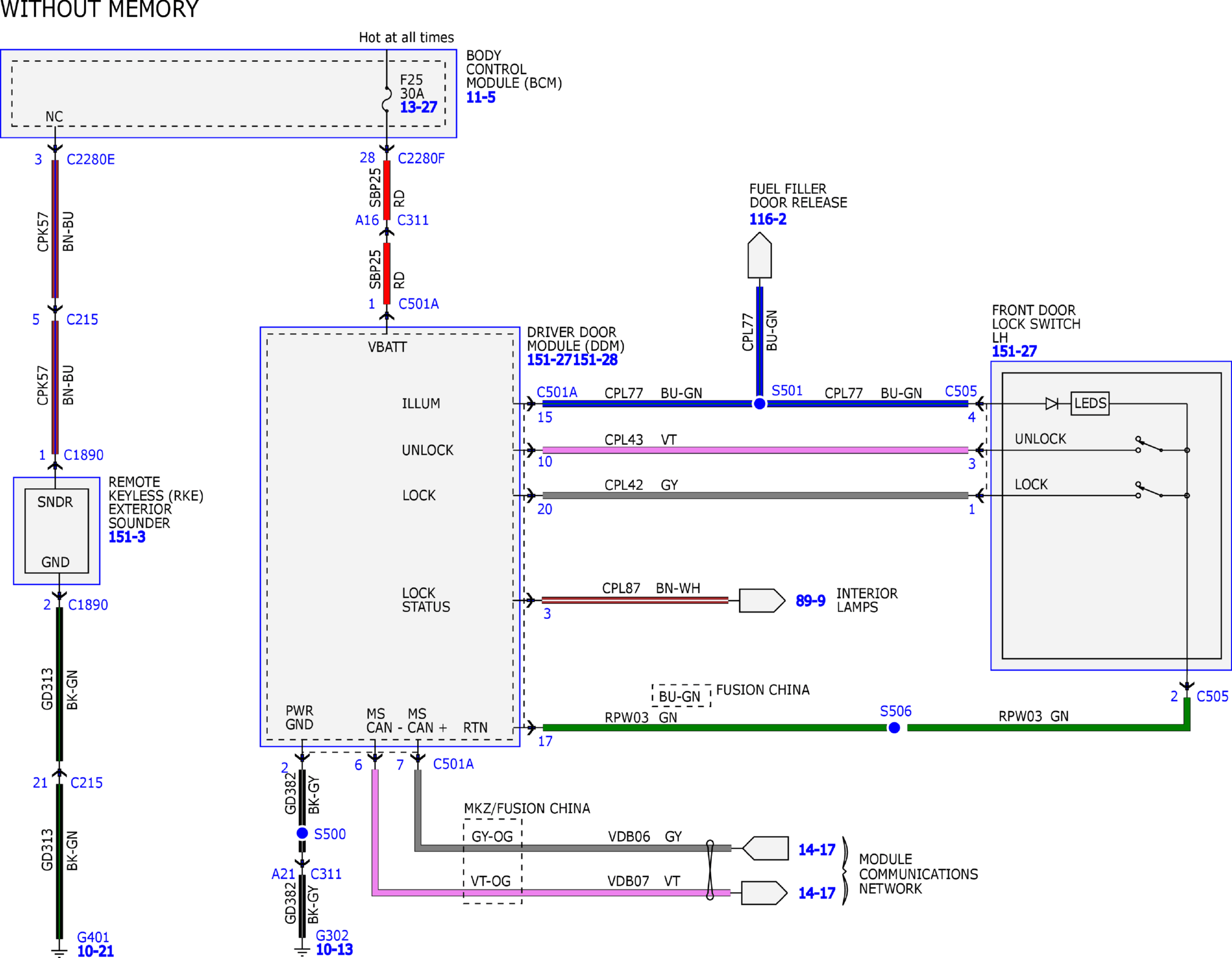

Fig 16: Remote Keyless Entry and Alarm (16 of 18)

GFDW81227

Courtesy of FORD MOTOR COMPANY

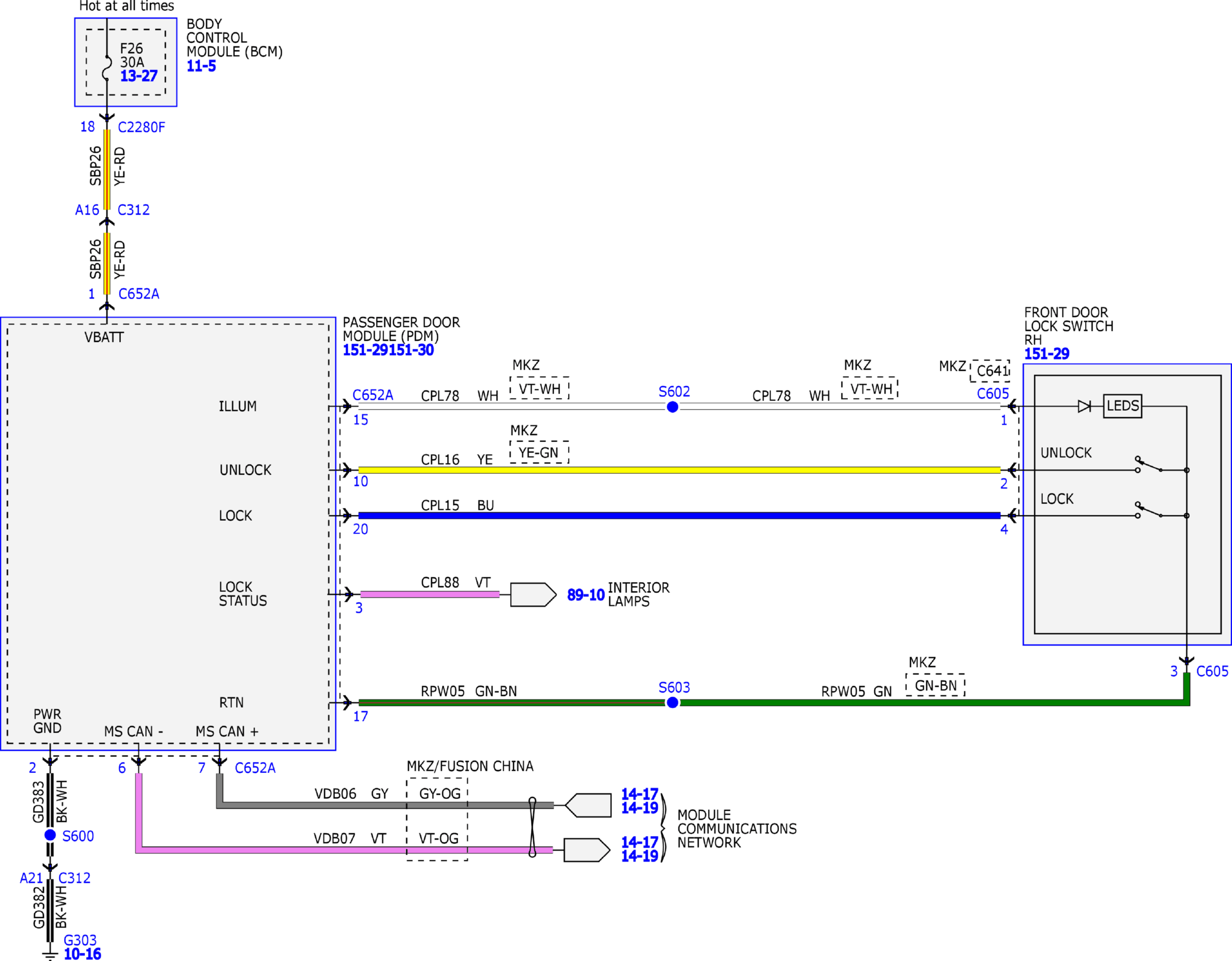

Fig 17: Remote Keyless Entry and Alarm (17 of 18)

GFDW81228

Courtesy of FORD MOTOR COMPANY

Fig 18: Remote Keyless Entry and Alarm (18 of 18)

GFDW81229

Courtesy of FORD MOTOR COMPANY
