Battery Disconnect and Connect

Disconnect

1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions .

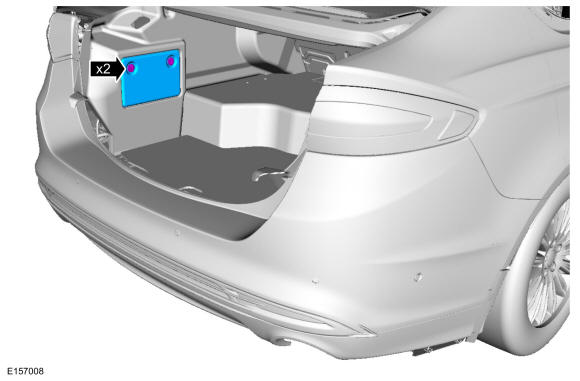

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

2. NOTE: When disconnecting the battery cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.
   1. Torque: 44 lb.in (5 Nm)
   2. Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

1. To install, reverse the removal procedure.
