Luggage Compartment Lid: Removal

NOTE: Removal steps in this procedure may contain installation details.

Open the luggage compartment lid.

Courtesy of FORD MOTOR COMPANY
1. Position aside the luggage compartment lid pull handle cover.
2. Remove the trim cover.
3. Remove the screws and the luggage compartment pull handle.
Courtesy of FORD MOTOR COMPANY
Insert a flat blade screwdriver in the latch housing slot and slowly pry down to disengage the tabs on the latch and remove the trim cover. Use the General Equipment: Flat-Bladed Screwdriver

Courtesy of FORD MOTOR COMPANY
1. Remove the pin-type retainers.
2. Remove the trim panel, passing the emergency release handle through the trim panel opening.
Courtesy of FORD MOTOR COMPANY

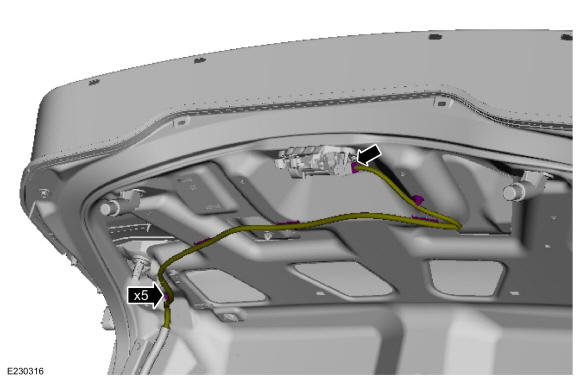

Disconnect the electrical connector, detach the wiring harness retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

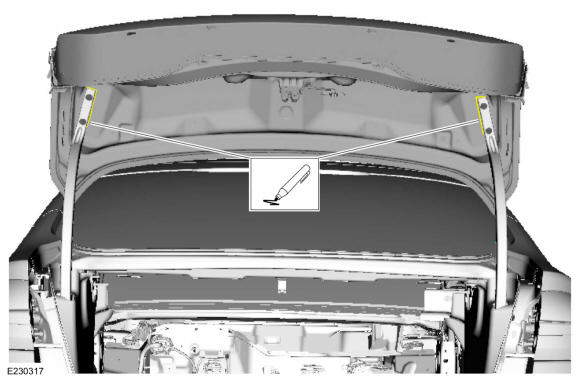

Index-mark the hinge location to aid in luggage compartment lid installation.

Courtesy of FORD MOTOR COMPANY

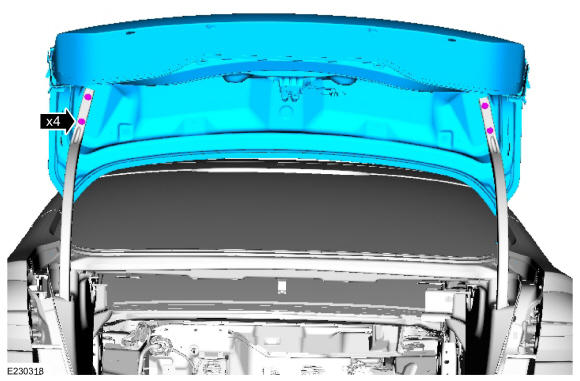

Remove the bolts and the luggage compartment lid.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
