Steering Column Multifunction Switch RH: Removal

  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. NOTE: The steering wheel is removed for clarity.
    NOTE: Make sure the component terminals are not bent or damaged.

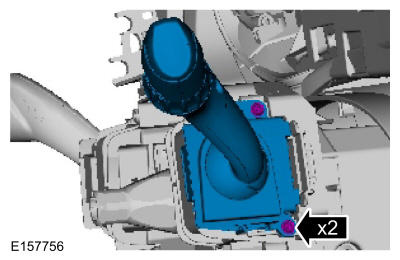

    Remove the retainers and the RH steering column multifunction switch.

GFD197491Courtesy of FORD MOTOR COMPANY
