Ignition Lock Cylinder Housing: Installation
NOTE:
The ignition lock cylinder housing bolts must be tightened in the order of the following steps. Otherwise, binding of the ignition cylinder and ignition switch may occur.

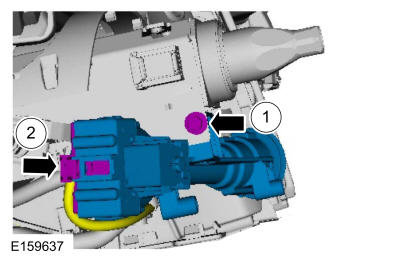

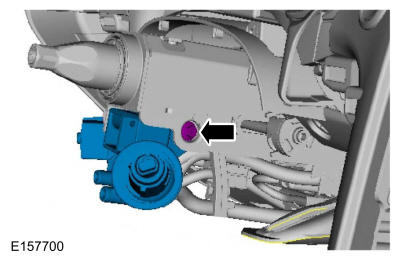

- Install the RH side bolt.
- Install the LH side bolt and connect the electrical connector.
- Install the SCCM. Refer to: Steering Column Control Module (SCCM) .
