Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

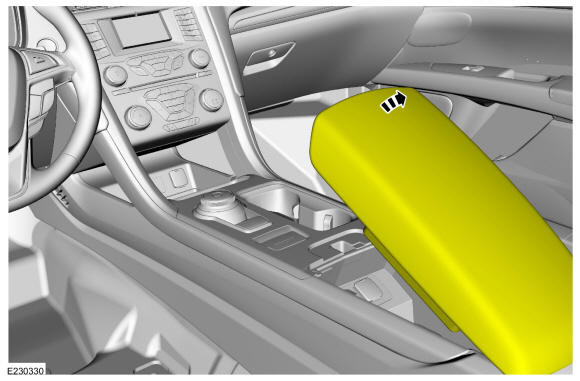

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY

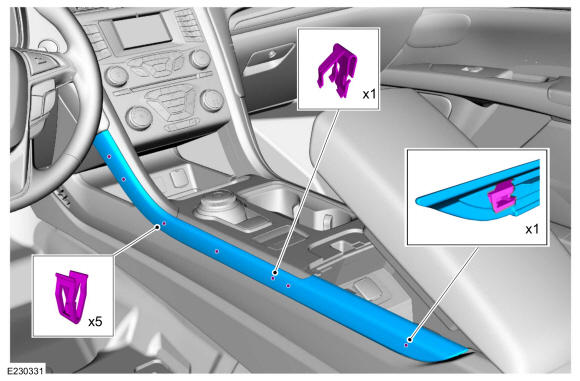

On both sides. Detach the clips and remove the floor console upper side finish panels.

Courtesy of FORD MOTOR COMPANY

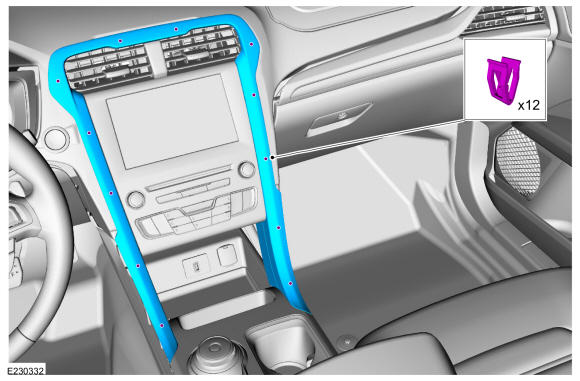

Detach the clips and remove the instrument panel center finish panel.

Courtesy of FORD MOTOR COMPANY

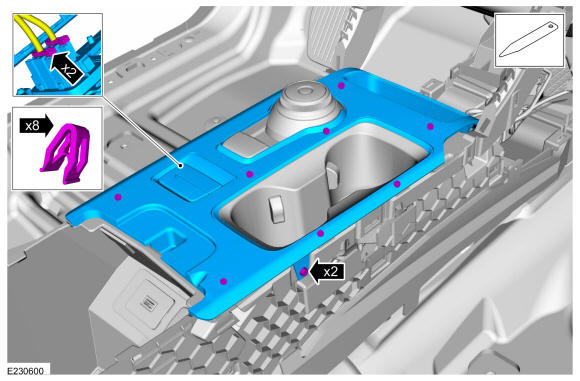

Remove the screws, detach the clips, disconnect the electrical connectors and remove the upper floor console finish panel.

Courtesy of FORD MOTOR COMPANY

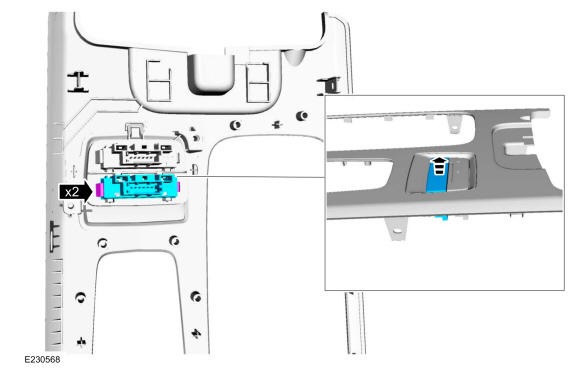

Release the tabs and remove the active park assist switch.

Courtesy of FORD MOTOR COMPANY
