Window Control Switch - Passenger Door, Rear Door LH and Rear Door RH

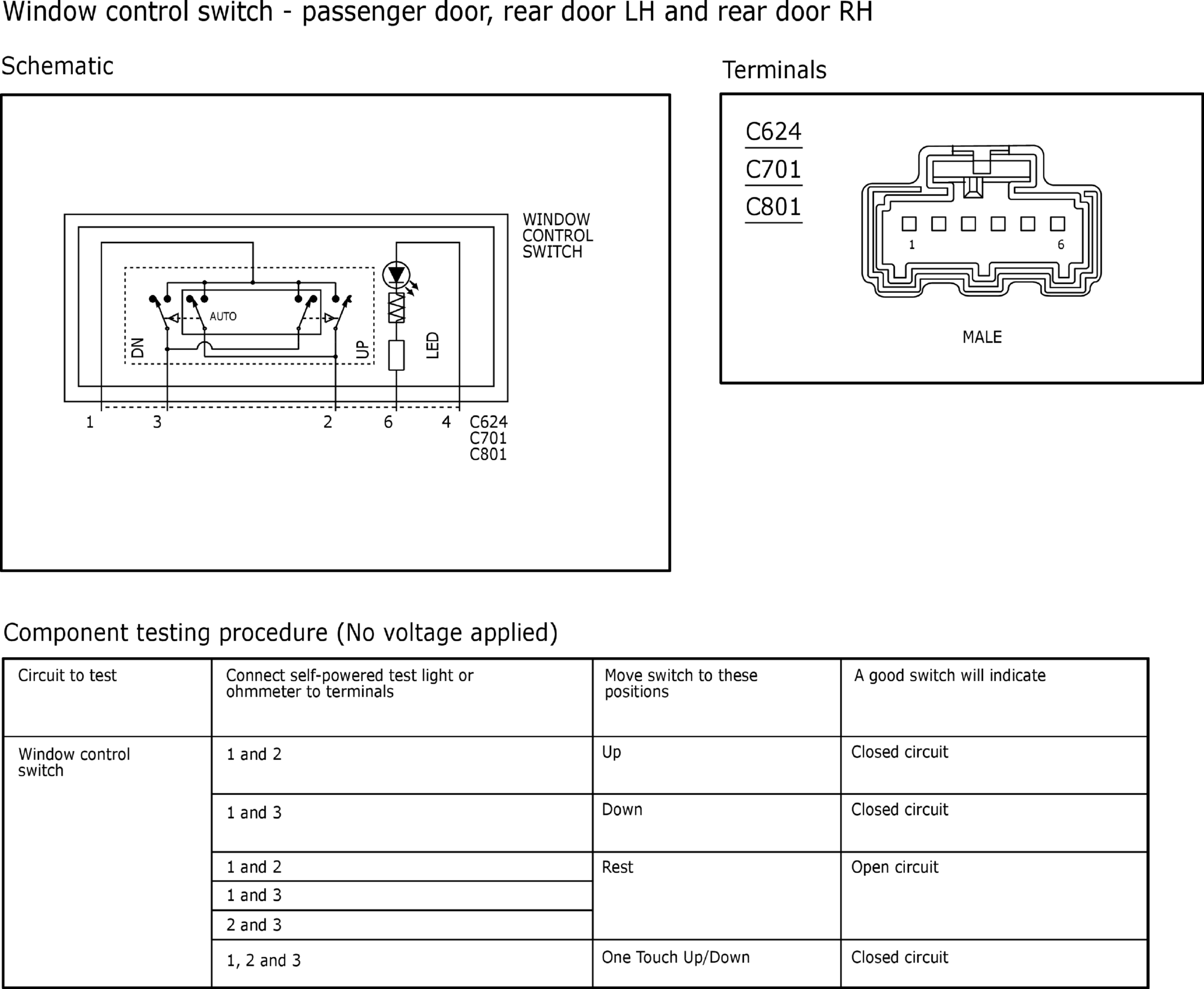

Fig 1: Window Control Switch - Passenger Door, Rear Door LH and Rear Door RH

GFDW81293

Courtesy of FORD MOTOR COMPANY
