Passive Anti-Theft System
Passive Anti-Theft System

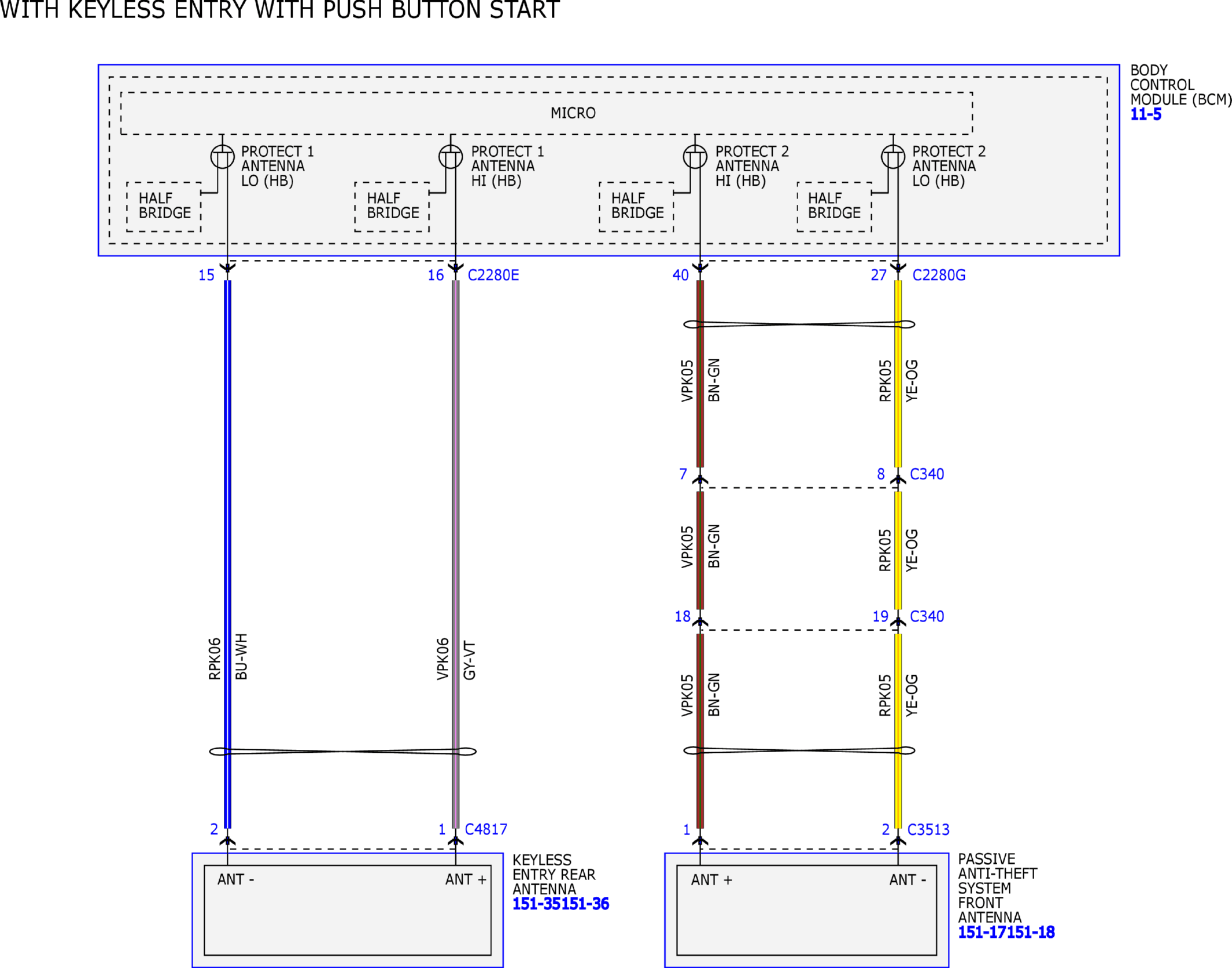

Fig 1: Passive Anti-Theft System (1 of 2)
Courtesy of FORD MOTOR COMPANY

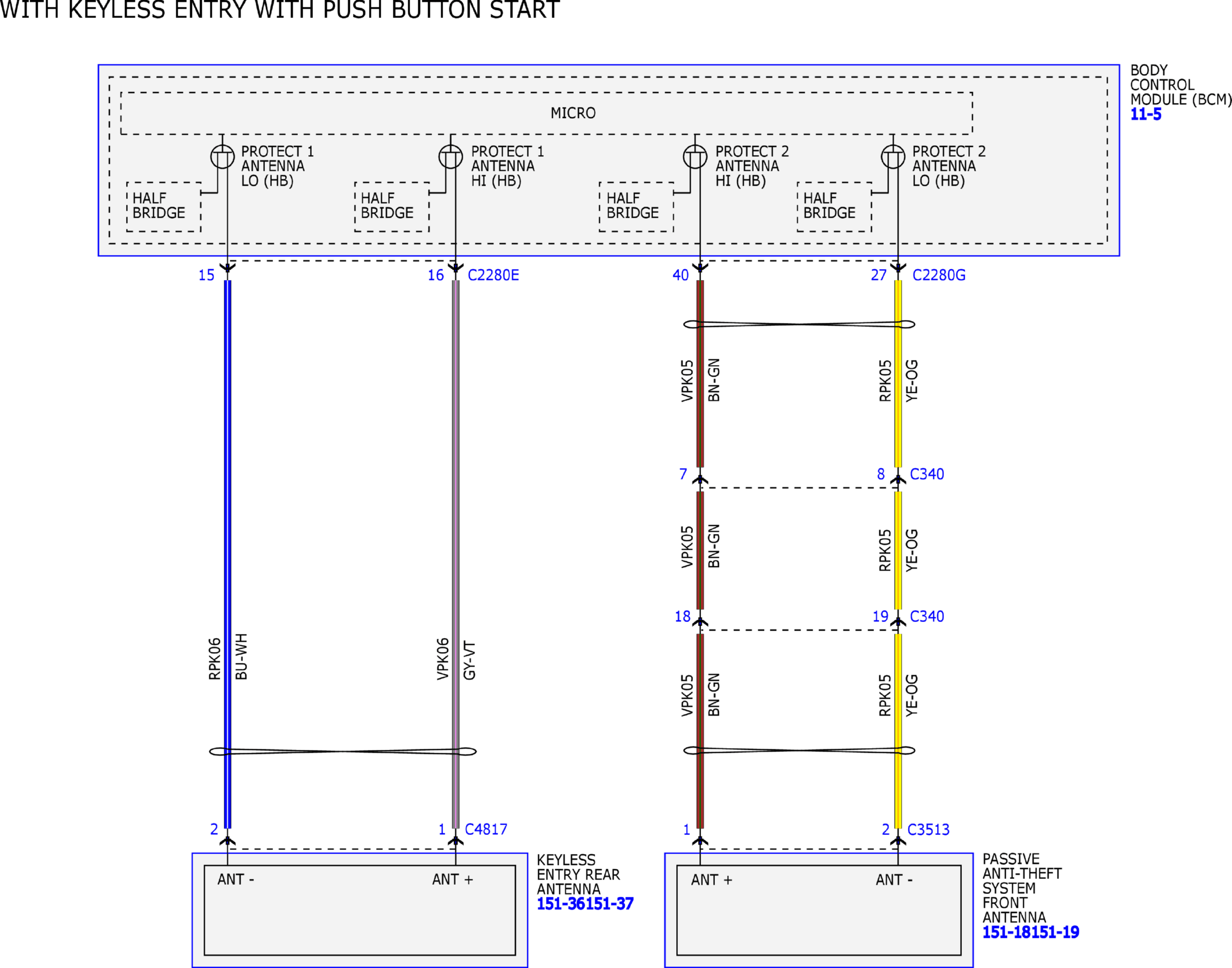

Fig 2: Passive Anti-Theft System (2 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
