Connector End View (C4424) - LUGGAGE COMPARTMENT LID LATCH
Connector: C4424
Description
LUGGAGE COMPARTMENT LID LATCH
Color
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL44 (YE-OG) | 20 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | Fusion |
| 1 | CPL81 (BN-VT) | 20 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR | MKZ |
| 2 | CLN13 (WH-BU) | 20 | SWITCH - TRUNK/CARGO LAMP | |
| 3 | CPL10 (GN-WH) | 18 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE | |
| 4 | GD347 (BK-VT) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT |

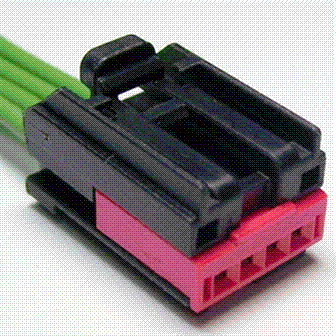

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1055 |
Service Part Number: 3U2Z-14S411-KYB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Switch - Deck Lid / Lift Gate Ajar Switch - Steering Column Tilt/Telescope |
