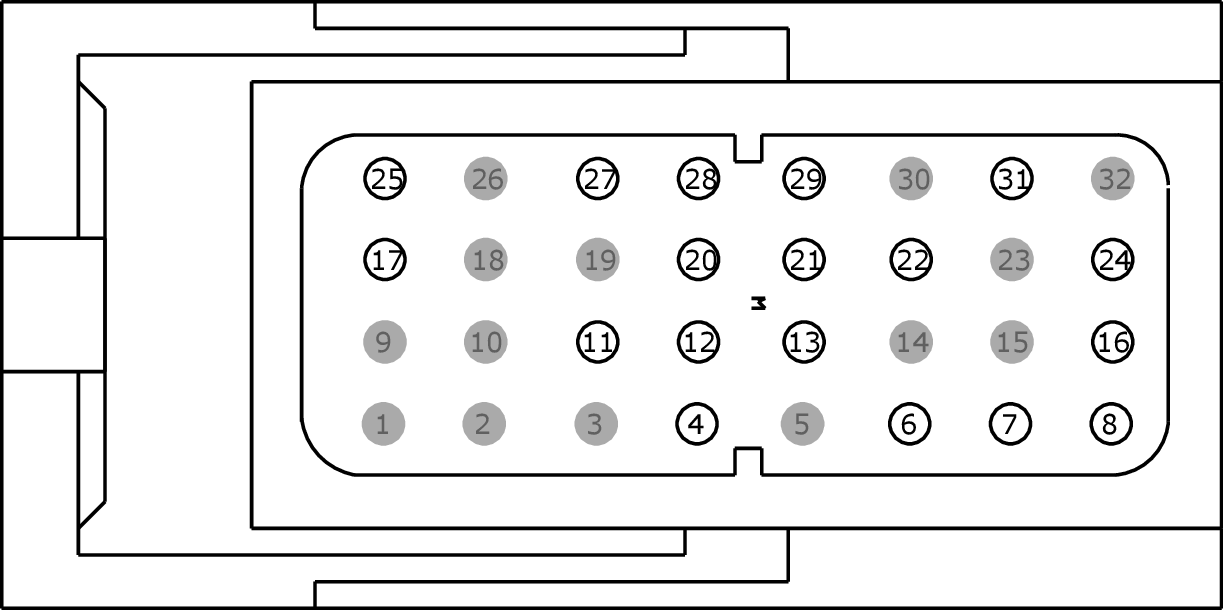

Connector End View (C175T) - POWERTRAIN CONTROL MODULE (PCM)

Connector: C175T

Description

POWERTRAIN CONTROL MODULE (PCM)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	LET57 (WH-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1BVREF)
5	*	*	Not Used
6	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +
7	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)
8	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)
9	*	*	Not Used
10	*	*	Not Used
11	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)
12	LET56 (BN-VT)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 2 (TR-A2BVREF)
13	LE459 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)
14	*	*	Not Used
15	*	*	Not Used
16	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)
17	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]
18	*	*	Not Used
19	*	*	Not Used
20	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]
21	VE706 (BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +
22	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)
23	*	*	Not Used
24	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)
25	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -
26	*	*	Not Used
27	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -
28	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]
29	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)
30	*	*	Not Used
31	GD108 (BK-VT)	18	GROUND - CHASSIS / BATTERY
32	*	*	Not Used
