Headlamp Control Module (HCM) (Fusion)

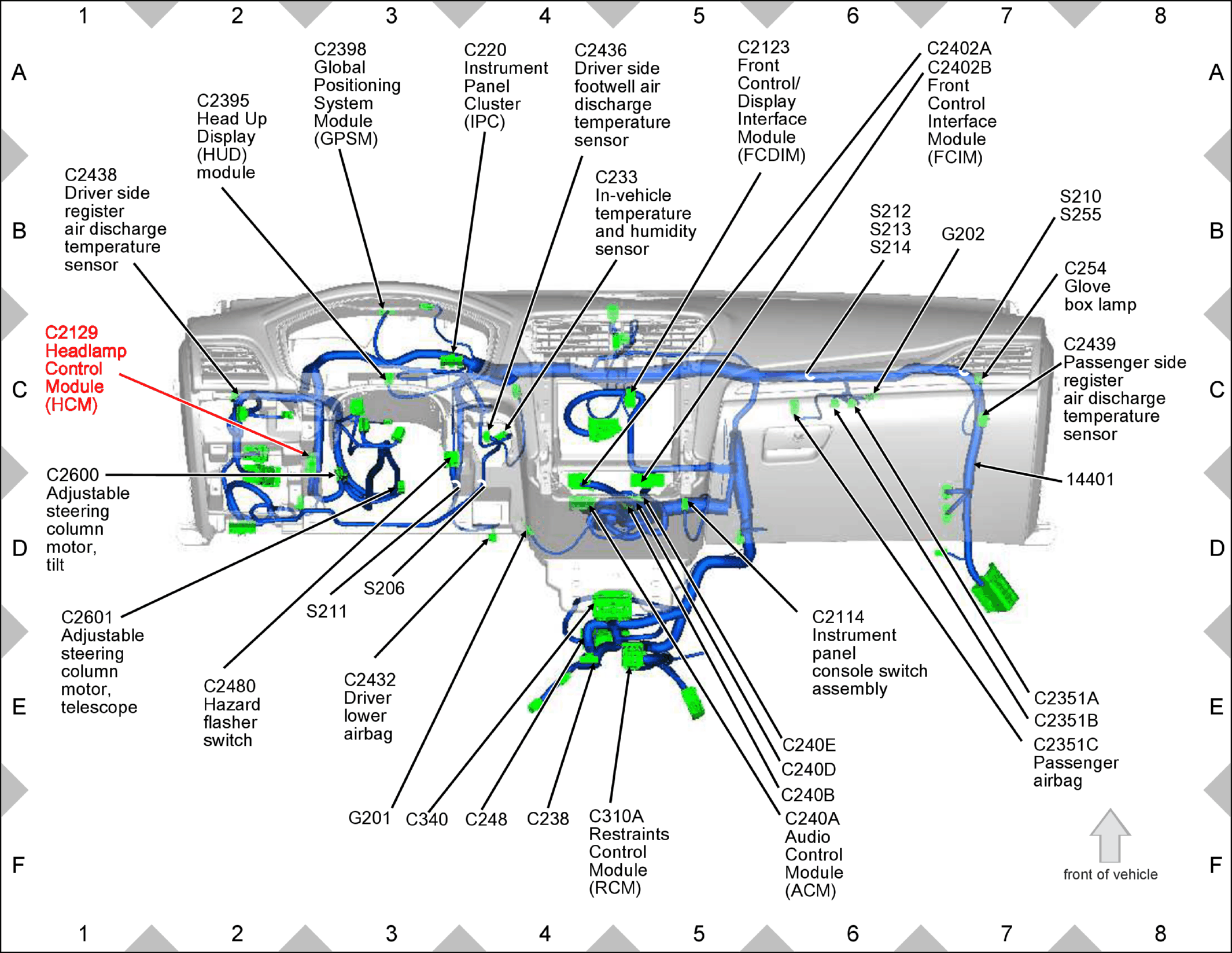

Fig 1: Headlamp Control Module (HCM) (Fusion) Components Location

GFDW81570

Courtesy of FORD MOTOR COMPANY
