Battery Charger Control Module (BCCM) (PHEV)

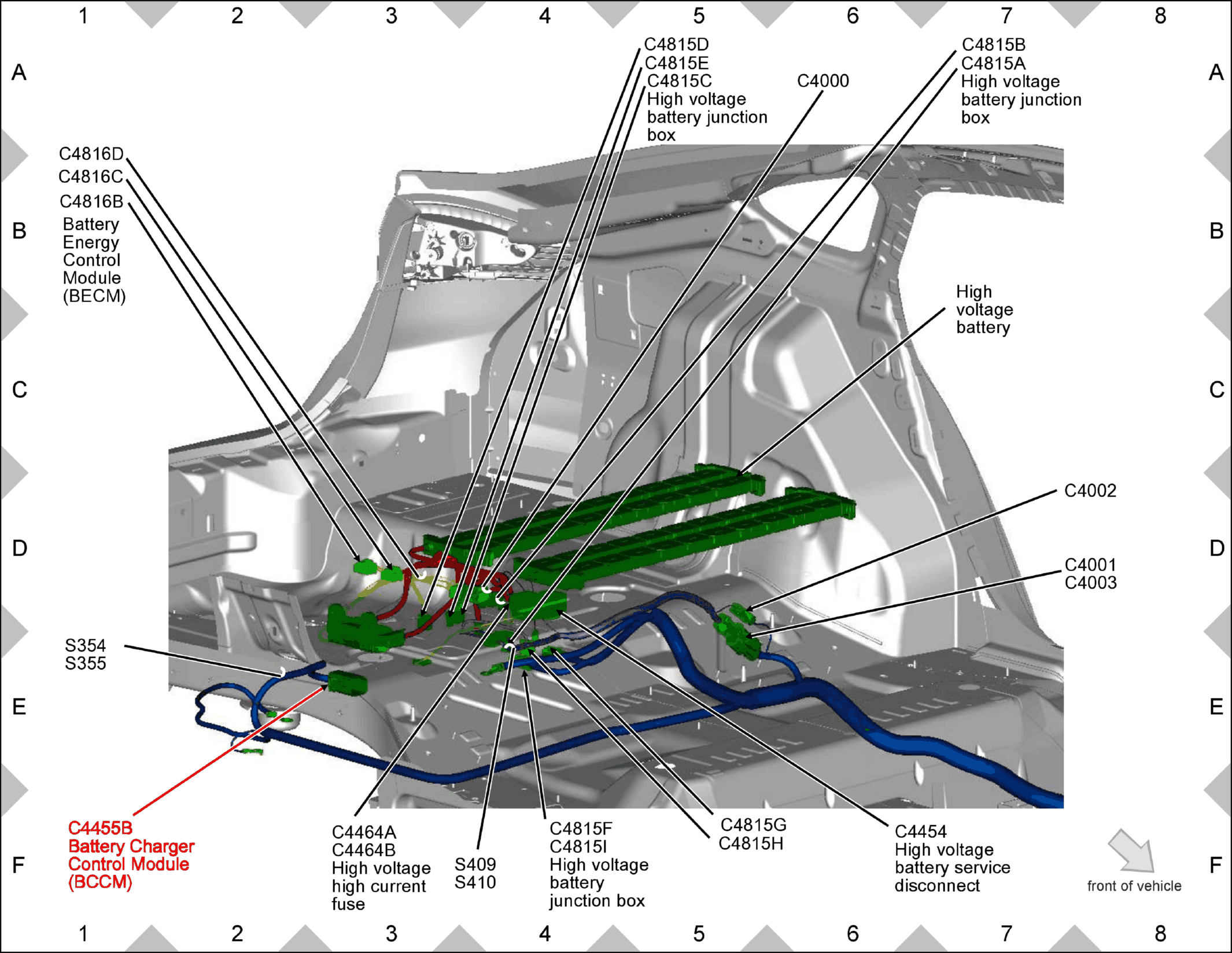

Fig 1: Battery Charger Control Module (BCCM) (PHEV) Components Location

GFDW81386

Courtesy of FORD MOTOR COMPANY
