Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
  3. NOTE: If equipped.

    Remove the air cleaner. Refer to Air Cleaner .

  4. NOTE: If equipped.

    Remove the bolts and position the cabin heater aside.

    Torque: 53 lb.in (6 Nm)

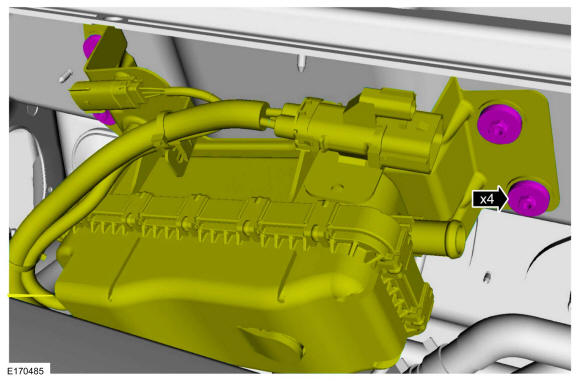

    GFD199450Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure all openings are sealed.

    Remove the evaporator pipe nut, position the flange and pipe aside.

    Torque: 97 lb.in (11 Nm)

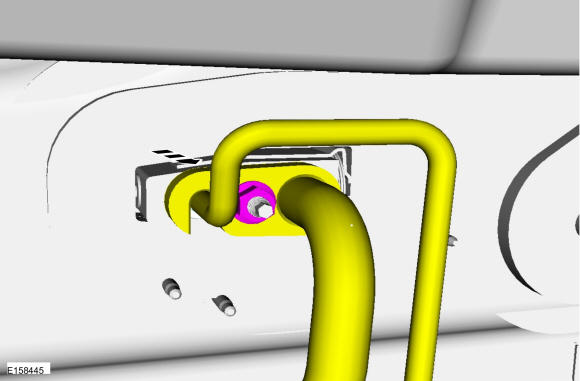

    GFD199451Courtesy of FORD MOTOR COMPANY
  6. GFD199399Courtesy of FORD MOTOR COMPANY
    GFD199452Courtesy of FORD MOTOR COMPANY
    WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

    Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.

    GFD199453Courtesy of FORD MOTOR COMPANY
  7. NOTE: Be prepared to collect escaping fluid.

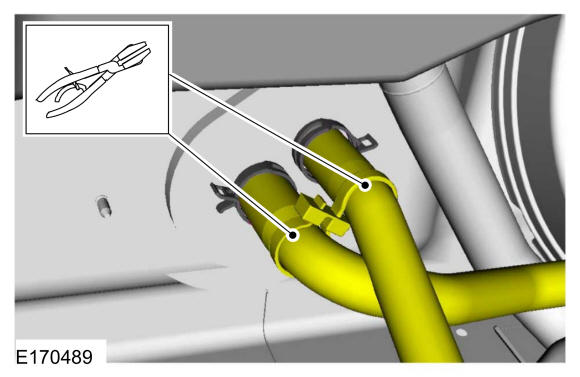

    Install hose clamping pliers on the coolant hoses, release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp(s)

    GFD199454Courtesy of FORD MOTOR COMPANY
  8. On both sides, remove the front door. Refer to:Front Door .
  9. Remove the floor console.
  10. If equipped, remove the selector lever assembly. Refer to:Selector Lever Cable .
  11. If equipped, remove the gearshift lever.

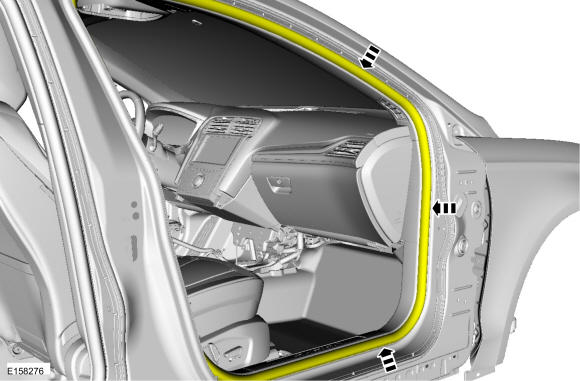

  12. On both sides. Position the front door weatherstrip aside.
    GFD199455Courtesy of FORD MOTOR COMPANY

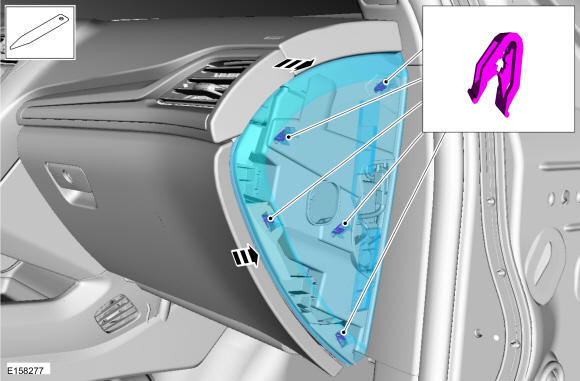

  13. On both sides. Release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover
    GFD199447Courtesy of FORD MOTOR COMPANY

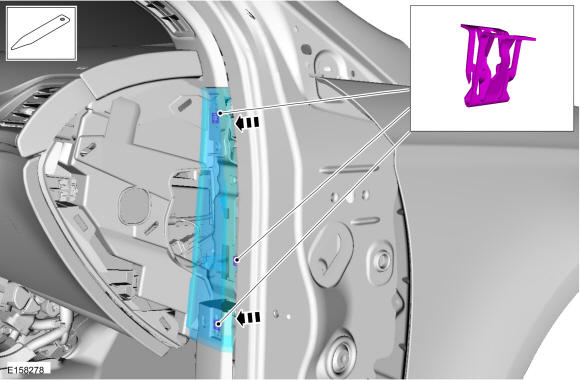

  14. On both sides. Remove the cowl side trim panel. Use the General Equipment: Interior Trim Remover
    GFD199456Courtesy of FORD MOTOR COMPANY

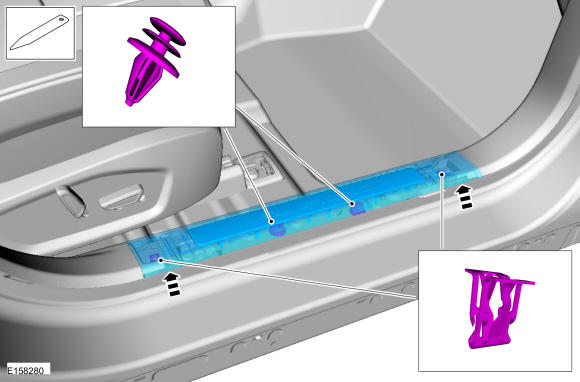

  15. On both sides. Release the clips and remove the scuff plate. Use the General Equipment: Interior Trim Remover
    GFD199457Courtesy of FORD MOTOR COMPANY

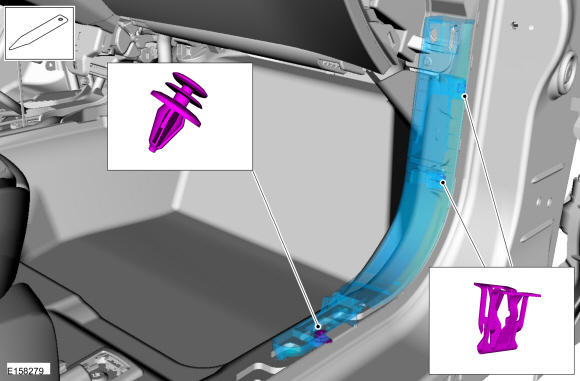

  16. On both sides. Release the clips and remove the lower cowl trim panel. Use the General Equipment: Interior Trim Remover
    GFD199458Courtesy of FORD MOTOR COMPANY
  17. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .

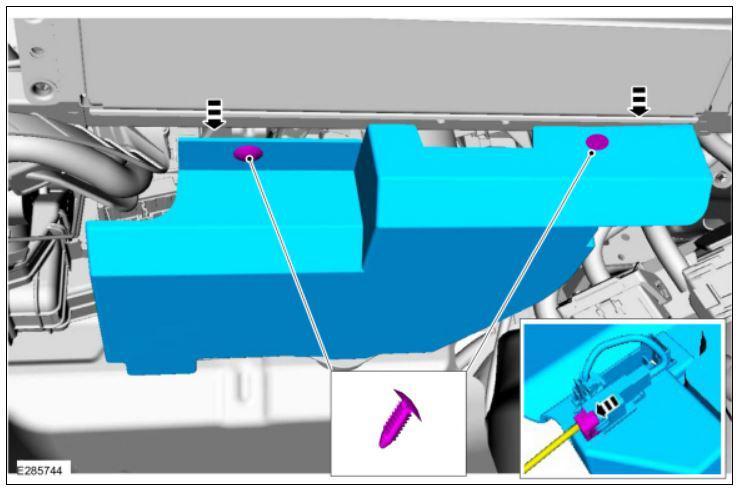

  18. Remove the push pins and RH insulator panel.
    GFD199459Courtesy of FORD MOTOR COMPANY
  19. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnect, or damage to the clockspring may result.

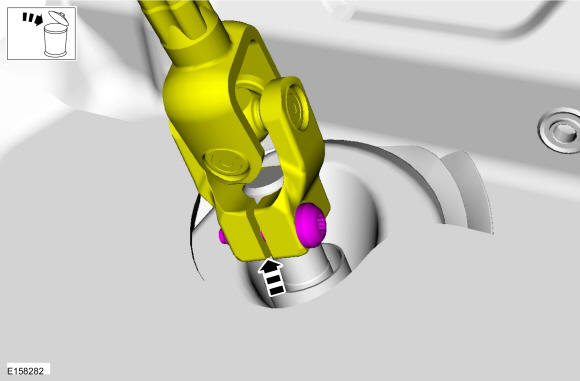

    Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    Torque: 21 lb.ft (28 Nm)

    GFD199460Courtesy of FORD MOTOR COMPANY
  20. Position the RH carpet aside.
    GFD199461Courtesy of FORD MOTOR COMPANY

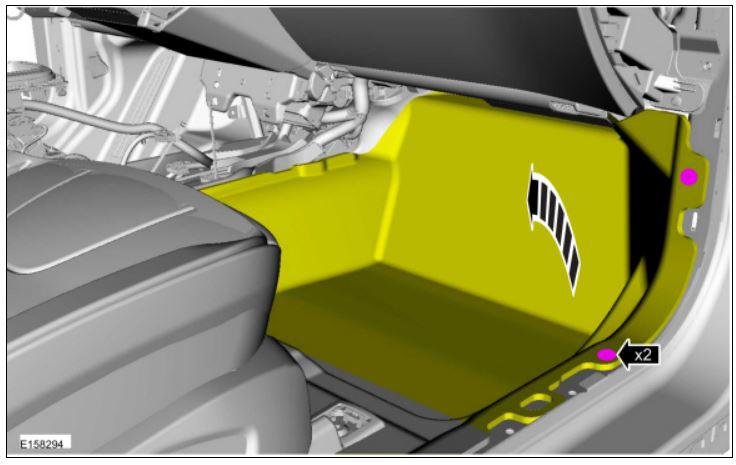

  21. Remove the push pins and position the LH carpet aside.

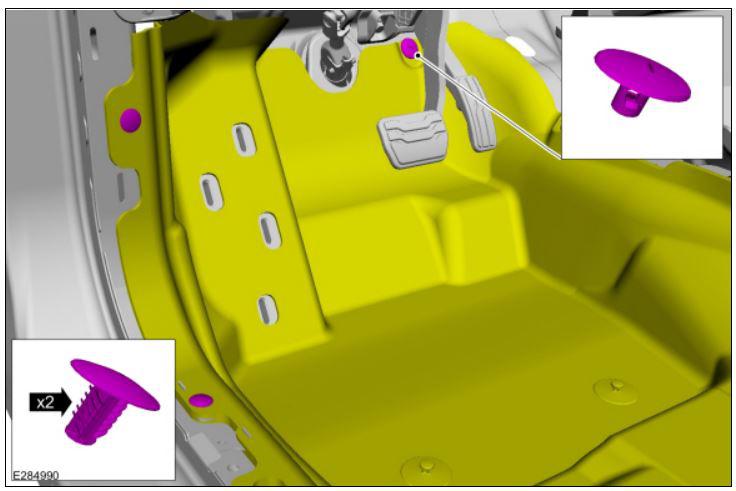

    GFD199462Courtesy of FORD MOTOR COMPANY

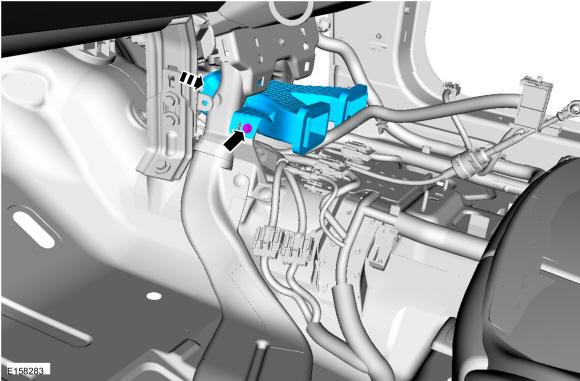

  22. Remove the bolt and the HVAC duct.
    GFD199463Courtesy of FORD MOTOR COMPANY

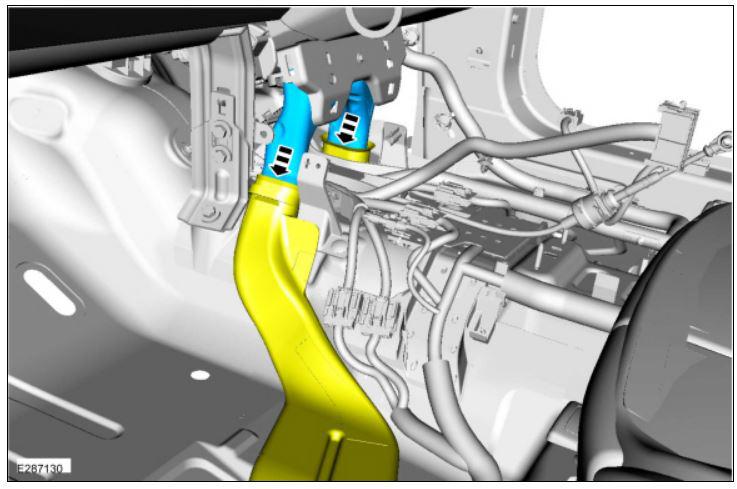

  23. Remove the HVAC duct.
    GFD199464Courtesy of FORD MOTOR COMPANY
  24. Remove the bolts and the instrument panel center brace.

    Torque: 133 lb.in (15 Nm)

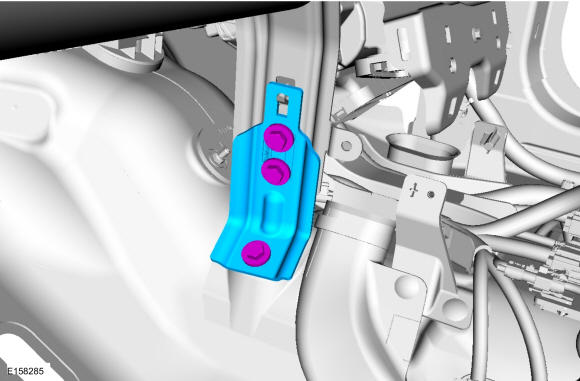

    GFD199465Courtesy of FORD MOTOR COMPANY
  25. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    • Turn the ignition off, wait at least one minute.

    • Disconnect the electrical connector.

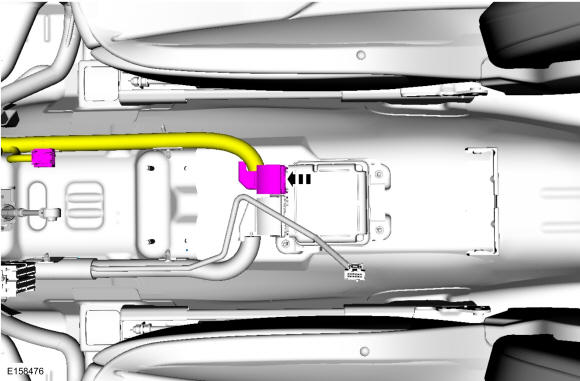

  26. Disconnect the electrical connectors.
    GFD199466Courtesy of FORD MOTOR COMPANY
  27. Disconnect the electrical connectors and position the wiring tray aside.

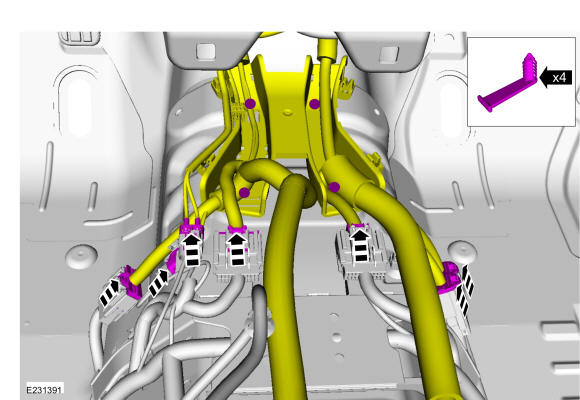

    GFD199467Courtesy of FORD MOTOR COMPANY
  28. NOTE: LH side of instrument panel.

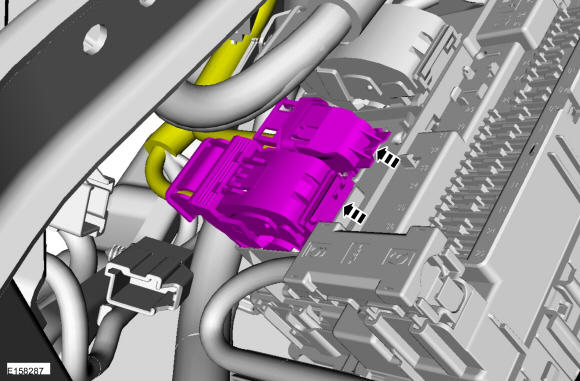

    Disconnect the BCM electrical connectors.

    GFD199468Courtesy of FORD MOTOR COMPANY

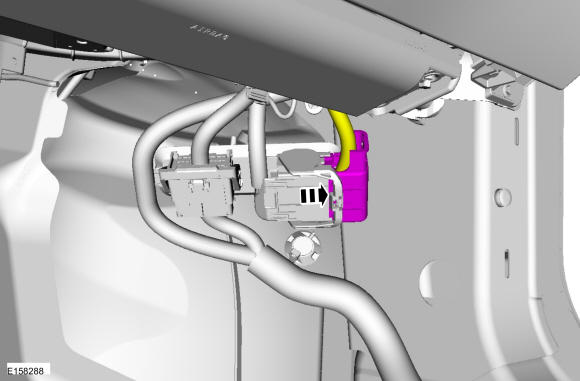

  29. NOTE: RH side of instrument panel.

    Disconnect the electrical connector.

    GFD199469Courtesy of FORD MOTOR COMPANY
  30. NOTE: If equipped.

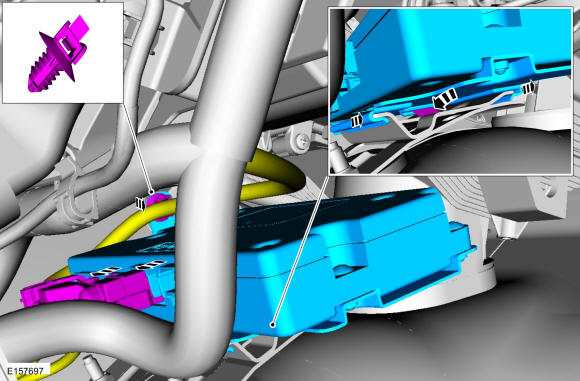

    Disconnect the electrical connectors and release the wiring harness retainer. Release the tabs and remove the APIM.

    GFD199470Courtesy of FORD MOTOR COMPANY
  31. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

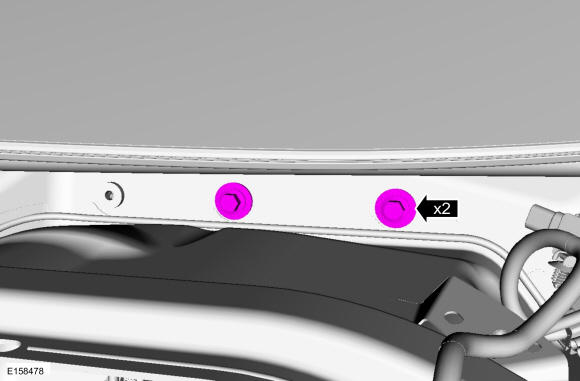

  32. Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD199471Courtesy of FORD MOTOR COMPANY
  33. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt cover. Use the General Equipment: Interior Trim Remover

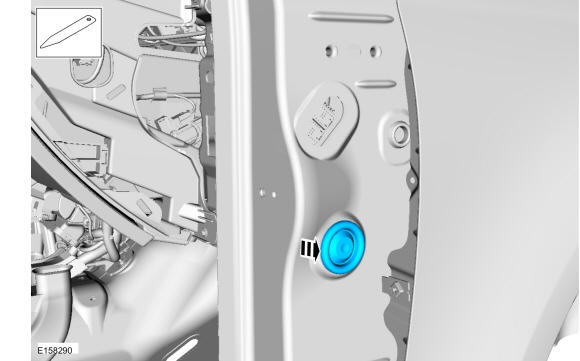

    GFD199472Courtesy of FORD MOTOR COMPANY

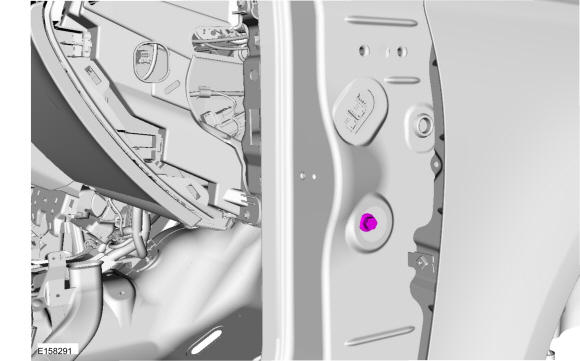

  34. On both sides. Remove the A-pillar to in-vehicle cross beam support bolt.

    Torque: 26 lb.ft (35 Nm)

    GFD199473Courtesy of FORD MOTOR COMPANY
  35. Remove the HVAC nut.

    Torque: 133 lb.in (15 Nm)

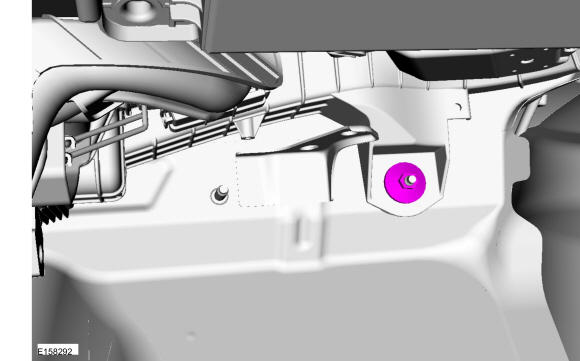

    GFD199474Courtesy of FORD MOTOR COMPANY
  36. On both sides. Remove the instrument panel support bolts.

    Torque: 17 lb.ft (22.5 Nm)

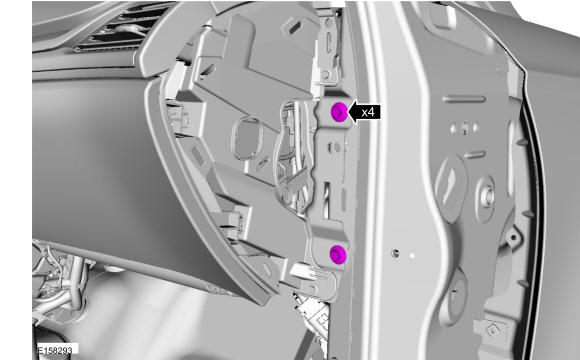

    GFD199475Courtesy of FORD MOTOR COMPANY
  37. NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

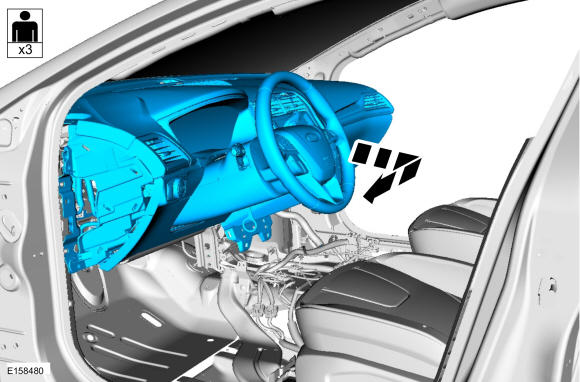

    Rotate the instrument panel face down and remove through the LH front door opening.

GFD199476Courtesy of FORD MOTOR COMPANY
