Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. NOTE: The instrument panel must be removed from the vehicle prior to removing the instrument panel upper section.

    Remove the instrument panel. Refer to: Instrument Panel .

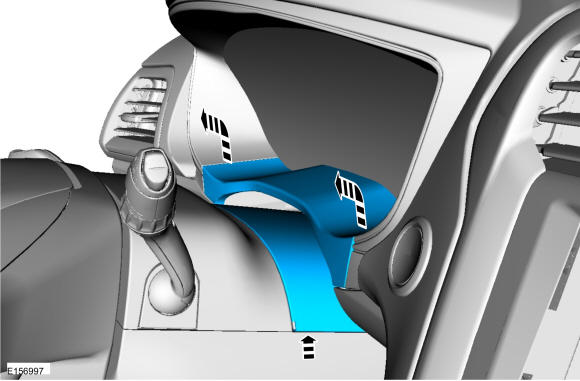

  3. Remove the upper steering column shroud.
    GFD199477Courtesy of FORD MOTOR COMPANY
  4. Remove the steering column. Refer to: Steering Column (Hybrid/Energi) .

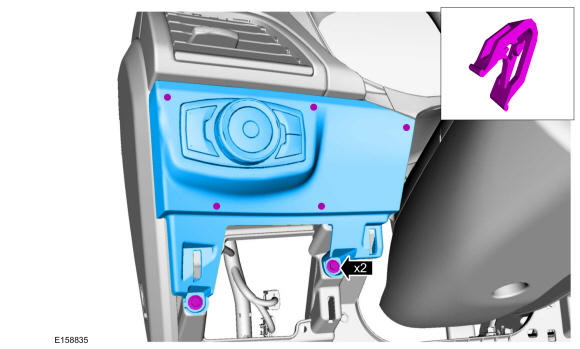

  5. Remove the bolts, release the clips and lower the instrument panel trim panel.

    Torque: 22 lb.in (2.5 Nm)

    GFD199478Courtesy of FORD MOTOR COMPANY

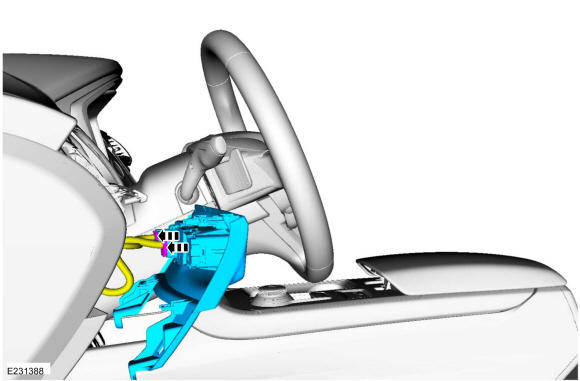

  6. Disconnect the headlamp switch electrical connector and remove the instrument panel trim panel.
    GFD199479Courtesy of FORD MOTOR COMPANY

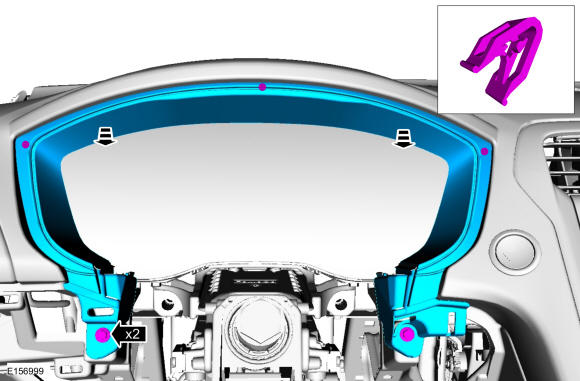

  7. Remove the bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

    GFD199480Courtesy of FORD MOTOR COMPANY

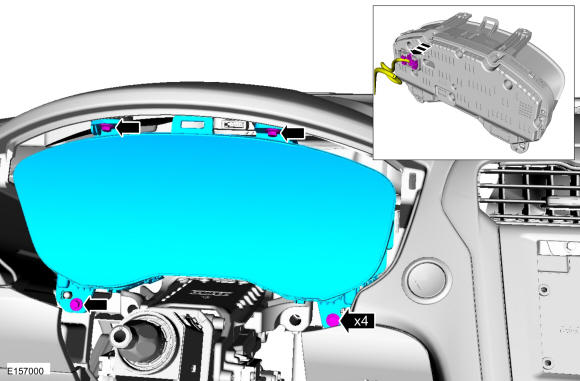

  8. Remove the bolts and the IPC. Disconnect the electrical connector.

    Torque: 27 lb.in (3 Nm)

    GFD199481Courtesy of FORD MOTOR COMPANY
  9. Remove the FCDIM or the FDIM. Refer to: Front Control/Display Interface Module (FCDIM) - Vehicles With: SYNC . Refer to: Front Display Interface Module (FDIM) - Vehicles With: SYNC 3 . Refer to: Front Display Interface Module (FDIM) -Vehicles With: Sony Audio System .

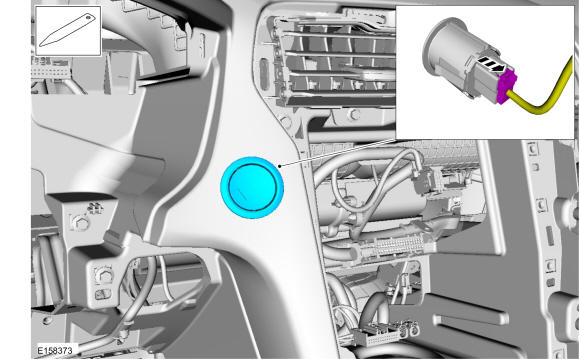

  10. If equipped. Remove the engine start stop button and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
    GFD199482Courtesy of FORD MOTOR COMPANY
  11. Remove the ACM. Refer to: Audio Front Control Module (ACM) - Vehicles With: SYNC . Refer to: Audio Front Control Module (ACM) - Vehicles With: SYNC 3 Touchscreen . Refer to: Audio Front Control Module (ACM) - Vehicles With: Sony Audio System .

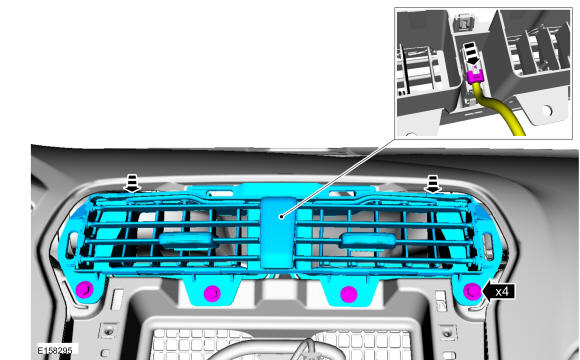

  12. Remove the bolts and the center register. Disconnect the electrical connector.

    Torque: 22 lb.in (2.5 Nm)

    GFD199483Courtesy of FORD MOTOR COMPANY

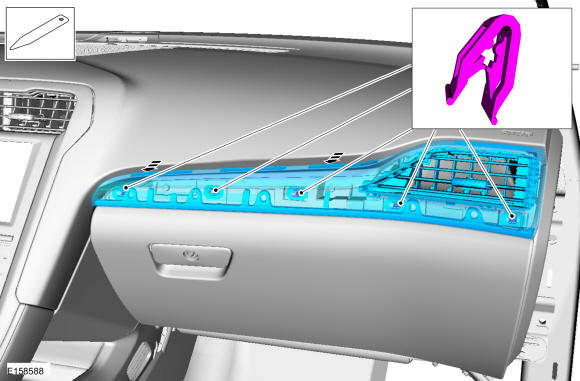

  13. Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD199448Courtesy of FORD MOTOR COMPANY

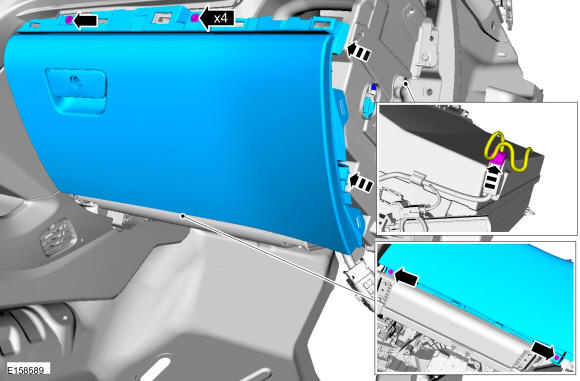

  14. Remove the bolts, release the retaining tabs and remove the glove compartment. Disconnect the electrical connector.

    Torque: 22 lb.in (2.5 Nm)

    GFD199449Courtesy of FORD MOTOR COMPANY

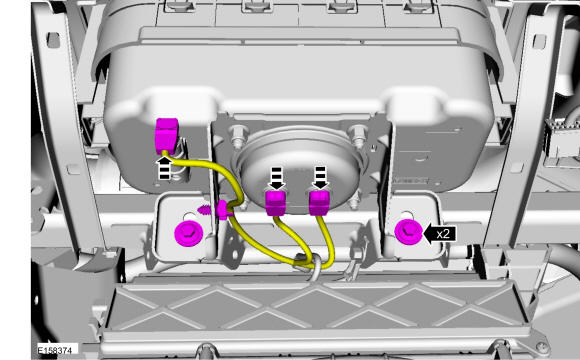

  15. Remove the bolts, disconnect the electrical connectors, release the harness retainer and position aside harness.

    Torque: 93 lb.in (10.5 Nm)

    GFD199484Courtesy of FORD MOTOR COMPANY
  16. If equipped, remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .

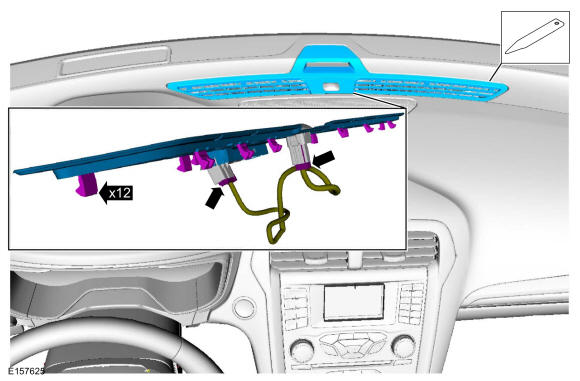

  17. Release the clips and remove the defroster grille panel. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD199485Courtesy of FORD MOTOR COMPANY
  18. Remove the HUD module. Refer to: Head Up Display (HUD) Module .

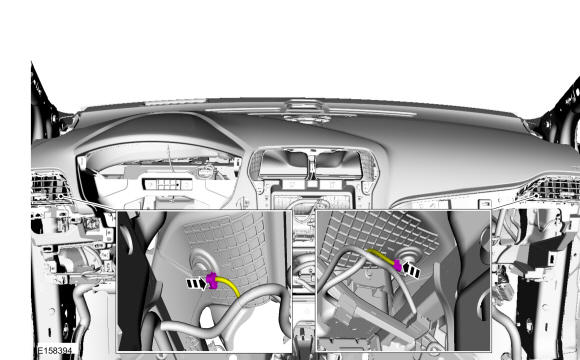

  19. Disconnect the electrical connectors.
    GFD199486Courtesy of FORD MOTOR COMPANY

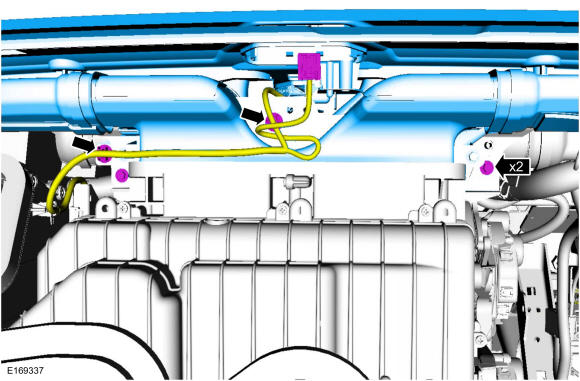

  20. Remove the bolts, disconnect the electrical connector and release wiring harness retainers. Remove the HVAC duct.
    GFD199487Courtesy of FORD MOTOR COMPANY

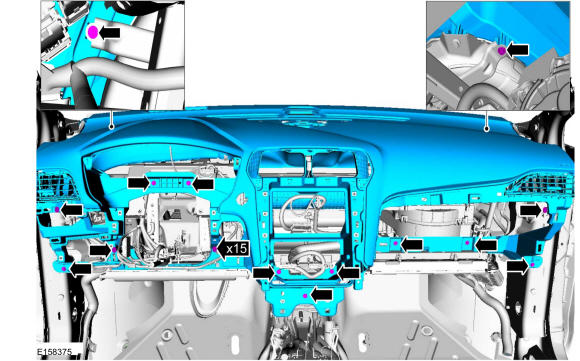

  21. Remove the bolts and the instrument panel upper section.

    Torque: 22 lb.in (2.5 Nm)

GFD199488Courtesy of FORD MOTOR COMPANY
