Fuse And Relay Location

Fig 1: Battery Junction Box (Top View)
GFDW80877Courtesy of FORD MOTOR COMPANY
Fig 2: Battery Junction Box (Bottom View)
GFDW80878Courtesy of FORD MOTOR COMPANY
Fig 3: Battery Junction Box Fuse Component Location Legend (1 Of 2)
GFDW80879Courtesy of FORD MOTOR COMPANY
Fig 4: Battery Junction Box Fuse Component Location Legend (2 Of 2)
GFDW80880Courtesy of FORD MOTOR COMPANY
Fig 5: Body Control Module Component Location (BCM)
GFDW80881Courtesy of FORD MOTOR COMPANY
Fig 6: Body Control Module Component Location (BCM) (Legend) (1 Of 2)
GFDW80882Courtesy of FORD MOTOR COMPANY

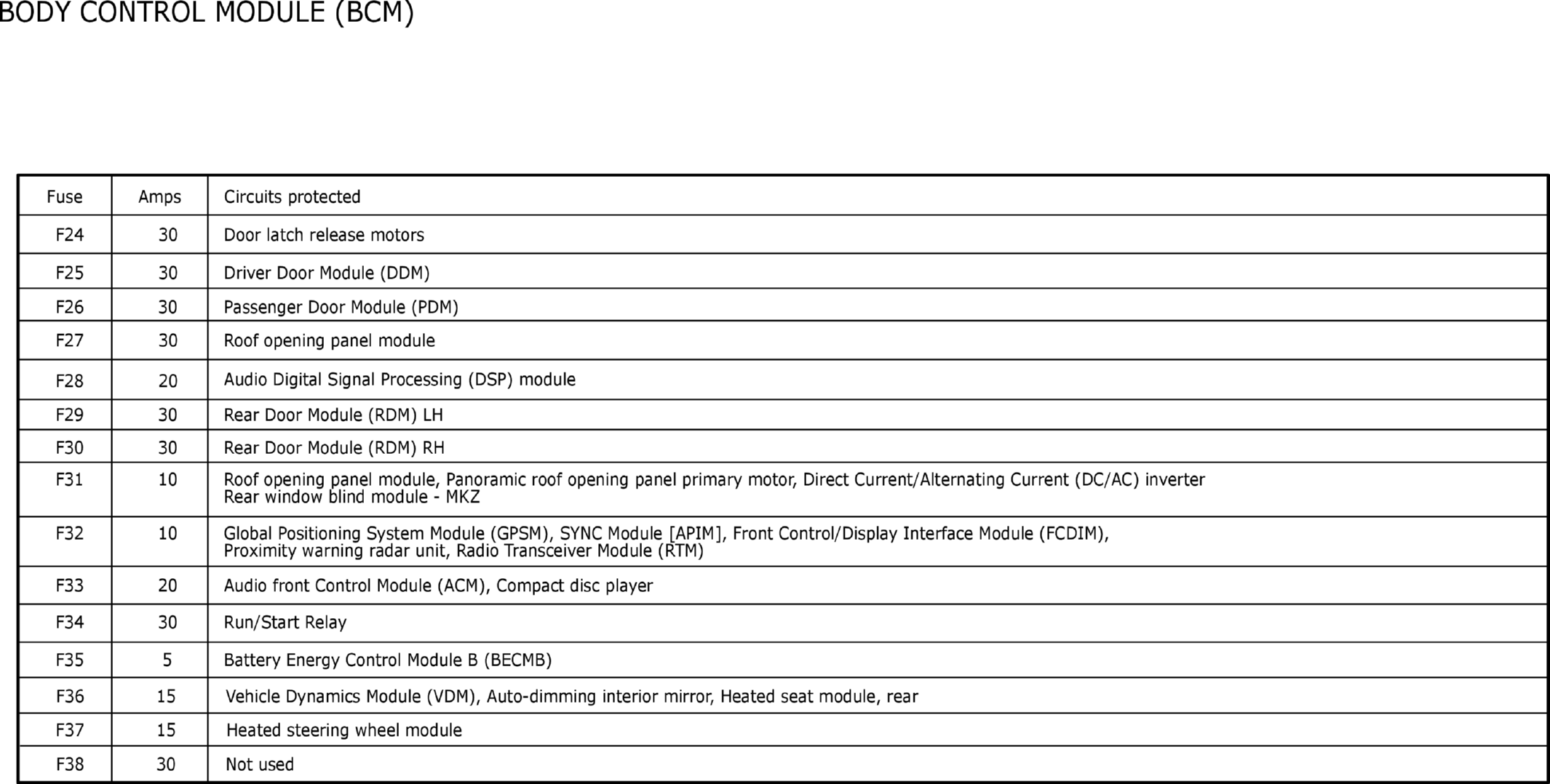

Fig 7: Body Control Module Component Location (BCM) (Legend) (2 Of 2)
GFDW80883Courtesy of FORD MOTOR COMPANY
Fig 8: High Current Battery Junction Box Component Location and Legend
GFDW80884Courtesy of FORD MOTOR COMPANY
