Brake Pedal Travel Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, Refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

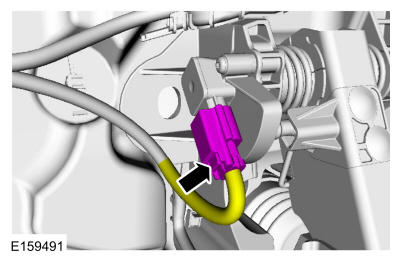

  2. GFD197149Courtesy of FORD MOTOR COMPANY

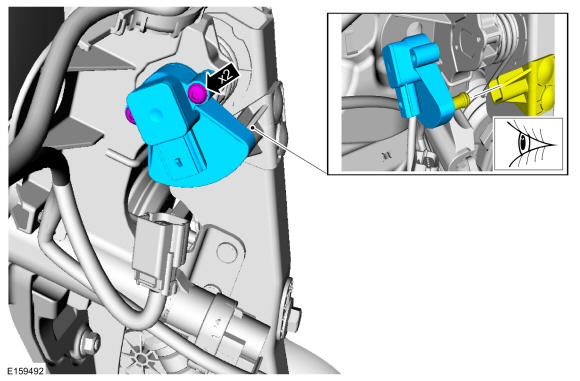

  3. Torque: 32 lb.in (3.6 Nm)
GFD197150Courtesy of FORD MOTOR COMPANY
