Rear Door Window Regulator: Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door speaker. Refer to: Rear Door Speaker With: SYNC 3/Touchscreen Display . Refer to: Rear Door Speaker With: SYNC . Refer to: Rear Door Speaker With: Sony Audio System .

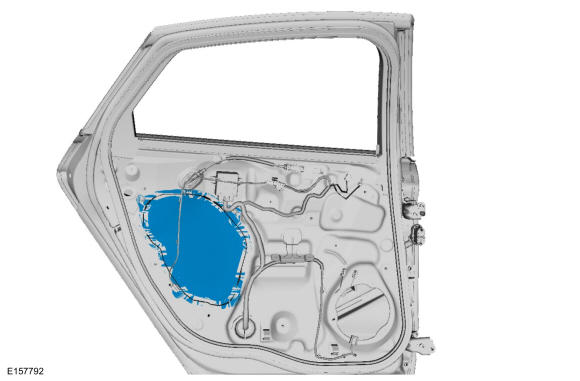

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

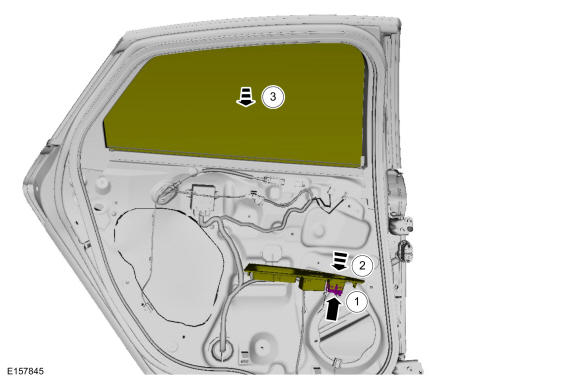

Lower the window glass to the full down position.
1. Install the rear window control switch.
2. Position the rear window control switch assembly.
3. Lower the window glass to the full down position.
Courtesy of FORD MOTOR COMPANY

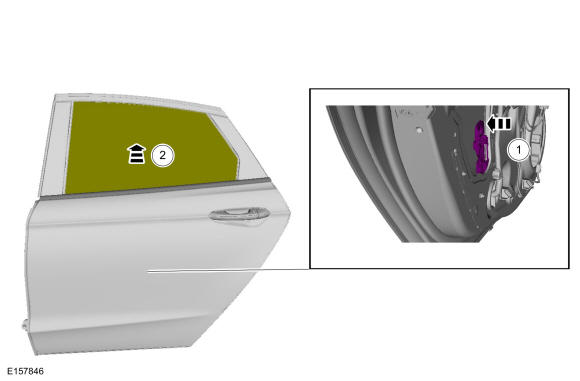

Raise the window glass to the full up position.
1. Release the rear door window clip.
2. Raise the window glass to the full up position.
Courtesy of FORD MOTOR COMPANY

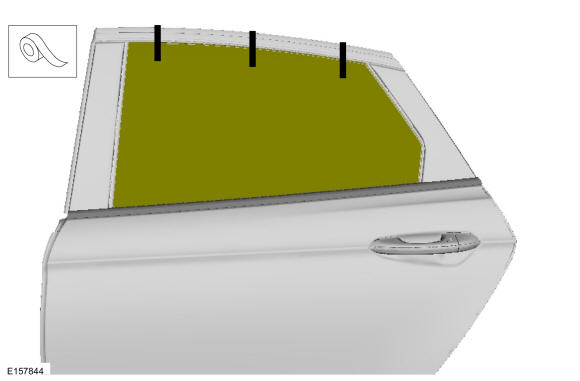

Raise the rear door window glass to full up and tape. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY

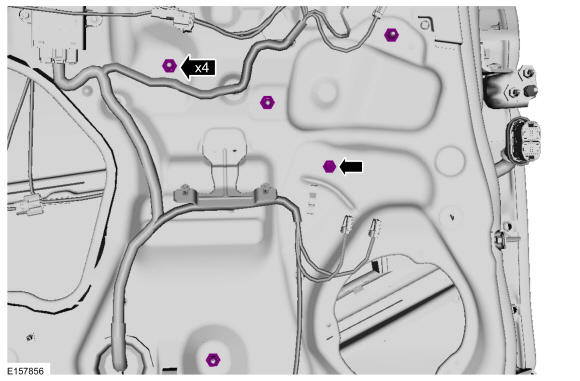

Remove the rear door window regulator bolt and nuts.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

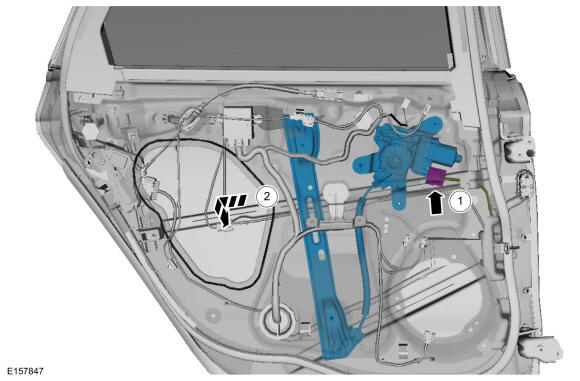

Remove the rear door window regulator.
1. Disconnect the electrical connector and position aside the wiring harness.
2. Remove the rear door window regulator.

Courtesy of FORD MOTOR COMPANY
