Front Door Window Glass: Removal

NOTE: LH side shown, RH side similar.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .
  2. Remove the front door speaker. REFER to: Front Door Speaker Sony Audio System . Refer to: Front Door Speaker With: SYNC 3/Touchscreen Display . Refer to: Front Door Speaker With: SYNC .
  3. Remove the front door watershield.
    GFD199403Courtesy of FORD MOTOR COMPANY

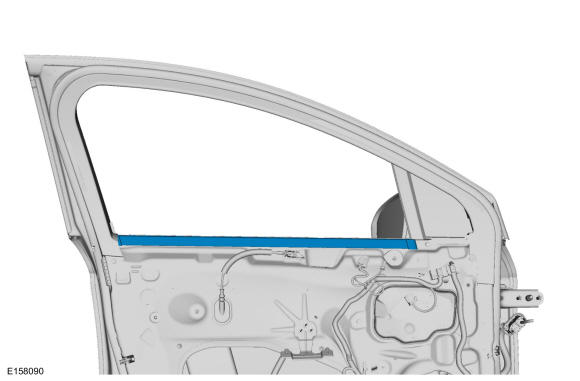

  4. Remove the inner belt moulding.
    GFD199404Courtesy of FORD MOTOR COMPANY

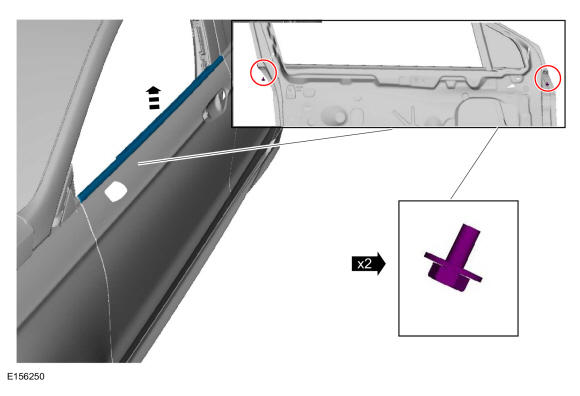

  5. Remove the bolt and front door window glass weatherstrip.
    GFD199198Courtesy of FORD MOTOR COMPANY
  6. Lower the front door window glass.

    1. Install the front door window control switch.
    2. lower the glass to 2/3 down position.

    GFD199405Courtesy of FORD MOTOR COMPANY
  7. Release the retaining clips from front door window glass.
    GFD199406Courtesy of FORD MOTOR COMPANY

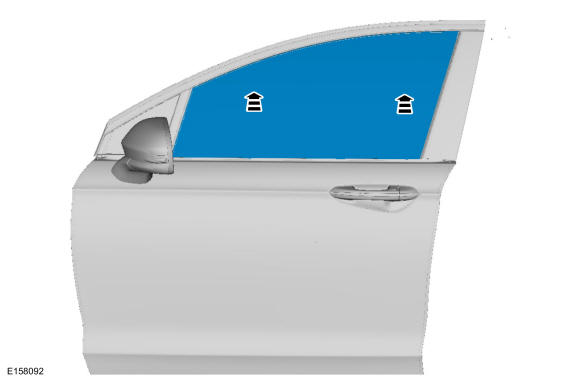

  8. Remove the front door window glass.
GFD199407Courtesy of FORD MOTOR COMPANY
