Front Door Glass Top Run: Removal

  1. Remove the front door window glass. Refer to: Front Door Window Glass .

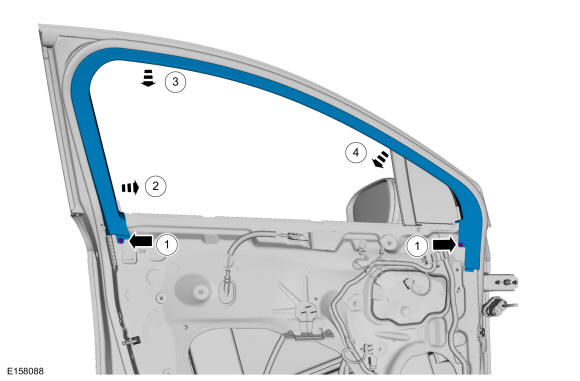

  2. Remove the retainers from the front door upper trim and remove the front door upper trim.
    GFD199425Courtesy of FORD MOTOR COMPANY

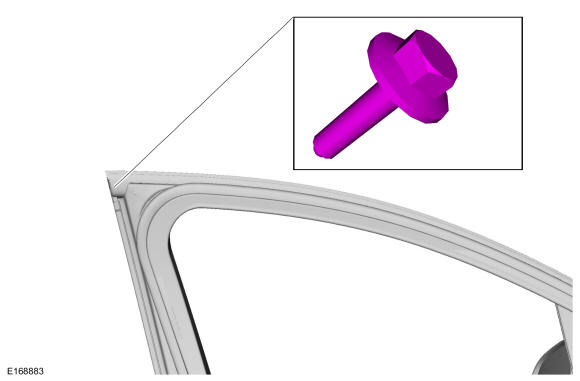

  3. Remove the bolt.
    GFD199426Courtesy of FORD MOTOR COMPANY

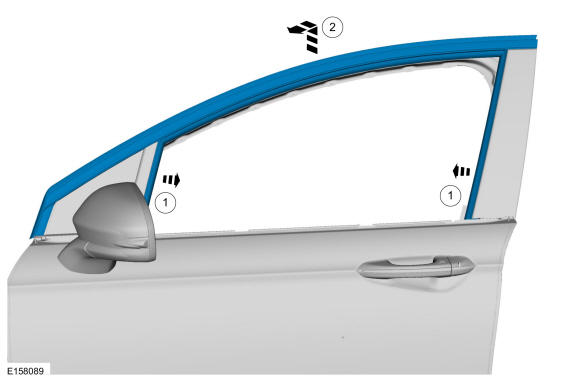

  4. Remove the front door glass top run.
GFD199427Courtesy of FORD MOTOR COMPANY
