Roof Opening Panel Alignment

Adjustment

1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

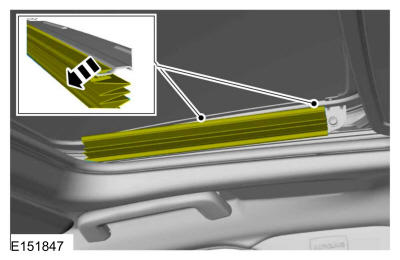

2. On both sides. Detach the top portion of the roof opening panel blind and fold it down to get access to the roof opening panel glass retainers.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Roof opening panel blind removed for clarity.

   On both sides. Loosen the retainers for adjustment.

   Courtesy of FORD MOTOR COMPANY

4. Measure and if necessary, adjust the front sliding glass panel to roof and roof height at the front of the glass as shown.
   • Center line -1.8 +/- 2.1mm
   • Outboard line -1.8 +/- 1.8mm

   Courtesy of FORD MOTOR COMPANY

5. Measure and if necessary, adjust the front sliding glass panel to roof and roof height at the rear of the glass as shown.
   • Outboard line 0.30 +/- 1.8mm
   • Center line 0.30 +/- 2.1mm

   Courtesy of FORD MOTOR COMPANY

6. On Both sides. Tighten the retainers.

   Torque: 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

7. On Both sides. Attach the top portion of the roof opening panel blind to the drip link.

   Courtesy of FORD MOTOR COMPANY

8. Initialize the power roof opening panel. Refer to: Power Roof Opening Panel Initialization .
