Rear Seat Cushion Cover: Removal

  1. Remove the rear seat cushion, Refer to: Rear Seat Cushion .

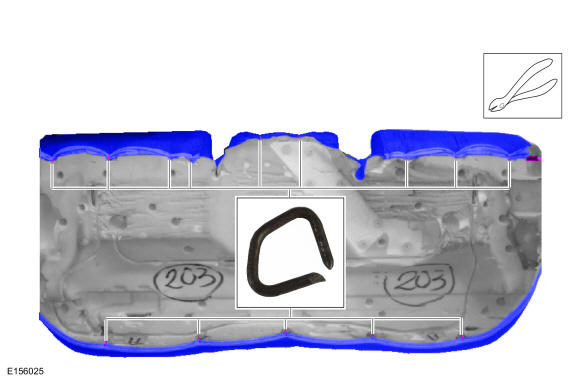

  2. Remove the hog rings and rear seat cushion cover.
GFD199386Courtesy of FORD MOTOR COMPANY
