Rear Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest.

All backrests

Remove the rear seat cushion, Refer to: Rear Seat Cushion .

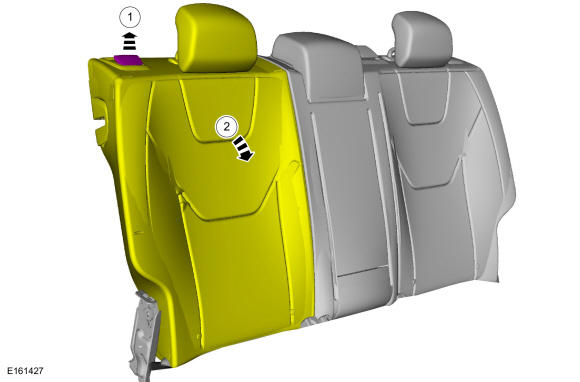

1. Lift the rear seat latch release handle.
2. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY

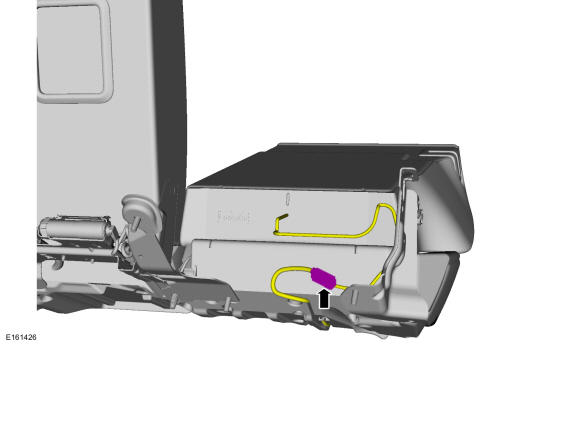

If equipped with heated seats. Disconnect the heated seat electrical connector.

Courtesy of FORD MOTOR COMPANY

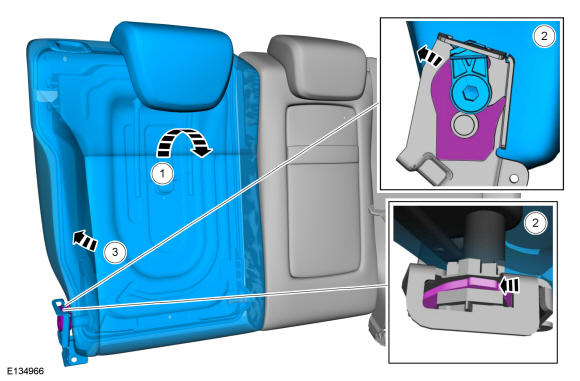

1. Lower the backrest.
2. Rotate the backrest hinge locking arm rearward and release the backrest.
3. Remove the 40 percent seat backrest.
Courtesy of FORD MOTOR COMPANY

60 percent backrest

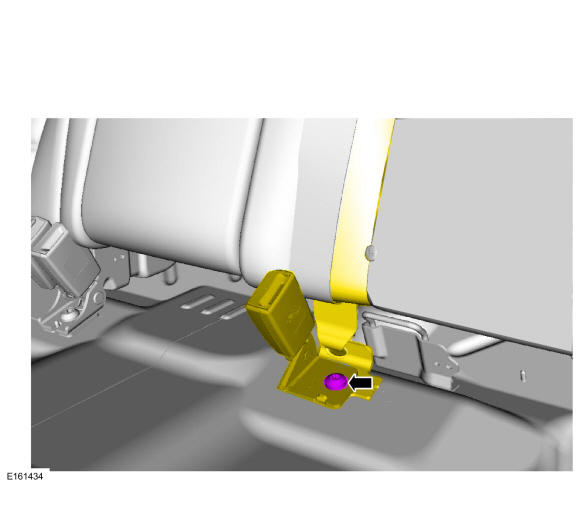

If equipped with conventional safety belts. Remove the bolt and position the rear center safety belt aside.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

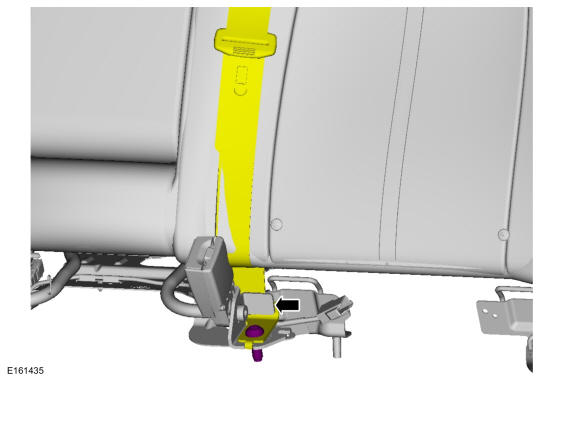

If equipped with inflatable safety belts. Remove the bolt and position the rear center safety belt aside.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

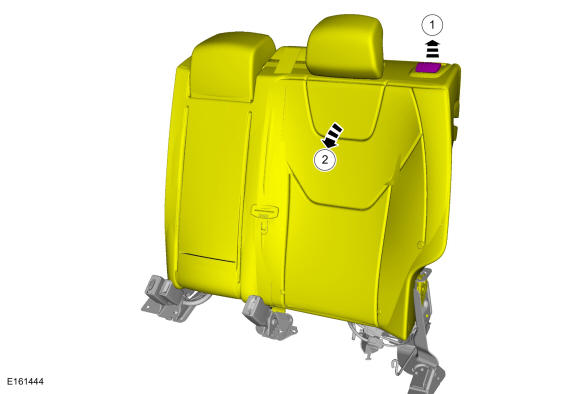

1. Lift the rear seat latch release handle.
2. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY

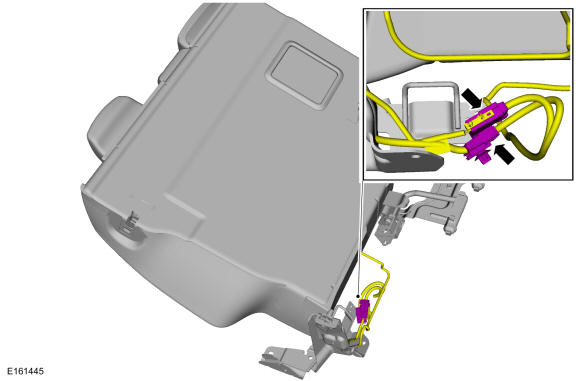

If equipped with heated seats. Disconnect the heated seat electrical connectors.

Courtesy of FORD MOTOR COMPANY

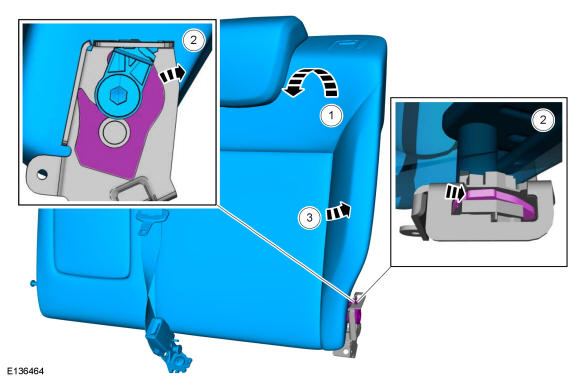

1. Lower the backrest.
2. Rotate the backrest hinge locking arm rearward and release the backrest.
3. Remove the 60 percent seat backrest.

Courtesy of FORD MOTOR COMPANY
