Rear Head Restraint Guide Sleeve: Removal
NOTE:
60 percent seat shown, 40 percent seat similar.

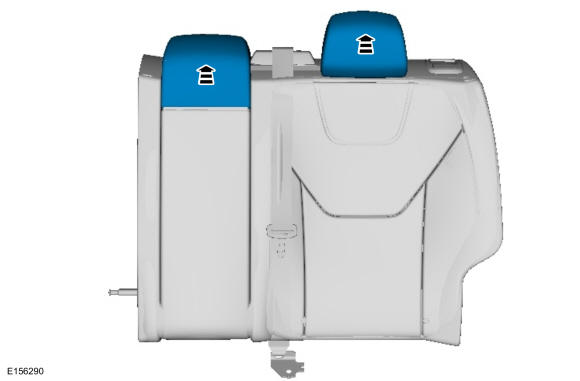

- Remove the head restraints.
 Courtesy of FORD MOTOR COMPANY
|
-

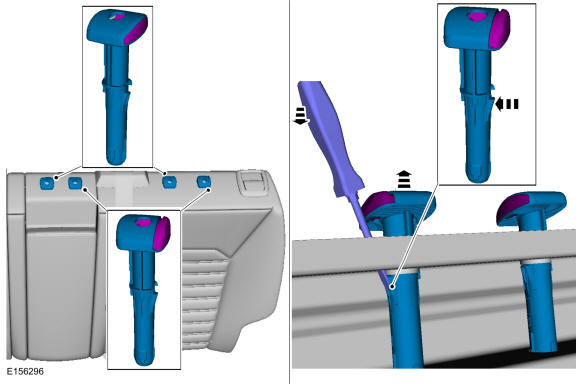

NOTE:
Backrest trim cover removed for clarity.
Release the locking tabs and remove the rear head restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
 Courtesy of FORD MOTOR COMPANY
|
